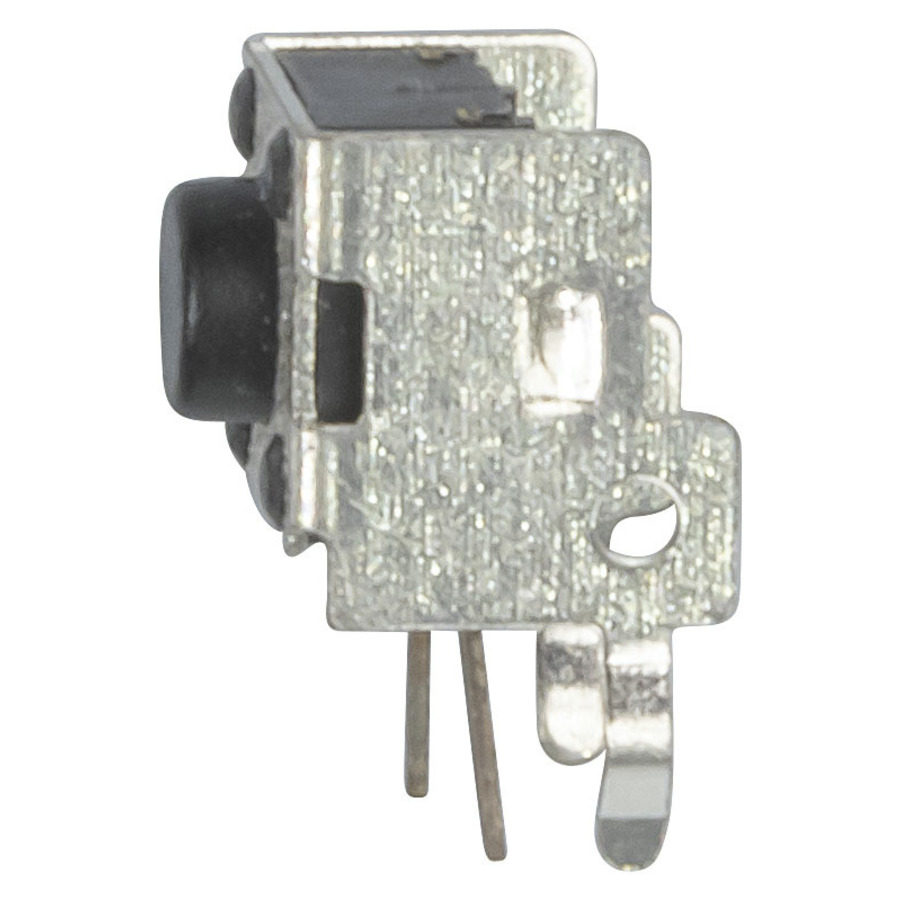

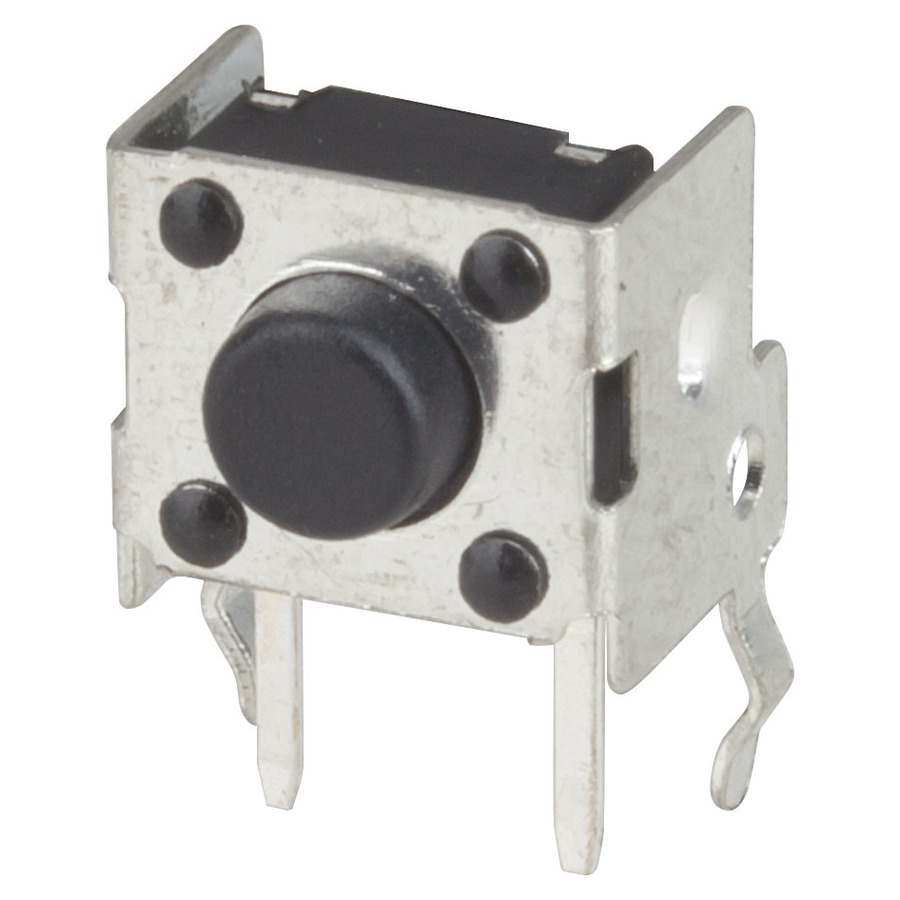

1.4mm SPST Right-Angle Micro Tactile Switch
1.4mm SPST Right-Angle Micro Tactile Switch
1.4mm SPST Right-Angle Micro Tactile Switch

CAT. No. SP0605

1.4mm SPST Right-Angle Micro Tactile Switch
product image thumb
product image thumb

1.4mm SPST Right-Angle Micro Tactile Switch

$1
Rating: 12VDC 50mAOperating Temperature: -20~70°CContact Resistance: 100mR Max.Insulation Resistance: 100mR Min. at 100VDCWithstand Voltage: 250VAC fo...

Please call (02) 4782 6943

Description

Normally open SPST right-angled micro tactile switch.

    Specifications

    Electromechanical Switch

    Switch at Right Angles to Mount
    Actuator Diameter
    		 3.4mm
    Dielectric Strength
    		 100V
    Switch Connection
    		 SMD
    Switch Type
    		 Tactile Pushbutton
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic
    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 100m?
    Actuator Height
    		 1.4mm

    Product Mounting

    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50mA

    Product Dimensions

    Height
    		 7.2mm
    Width
    		 7.4mm
    Depth
    		 6.2mm

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 5.0E-4l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item
