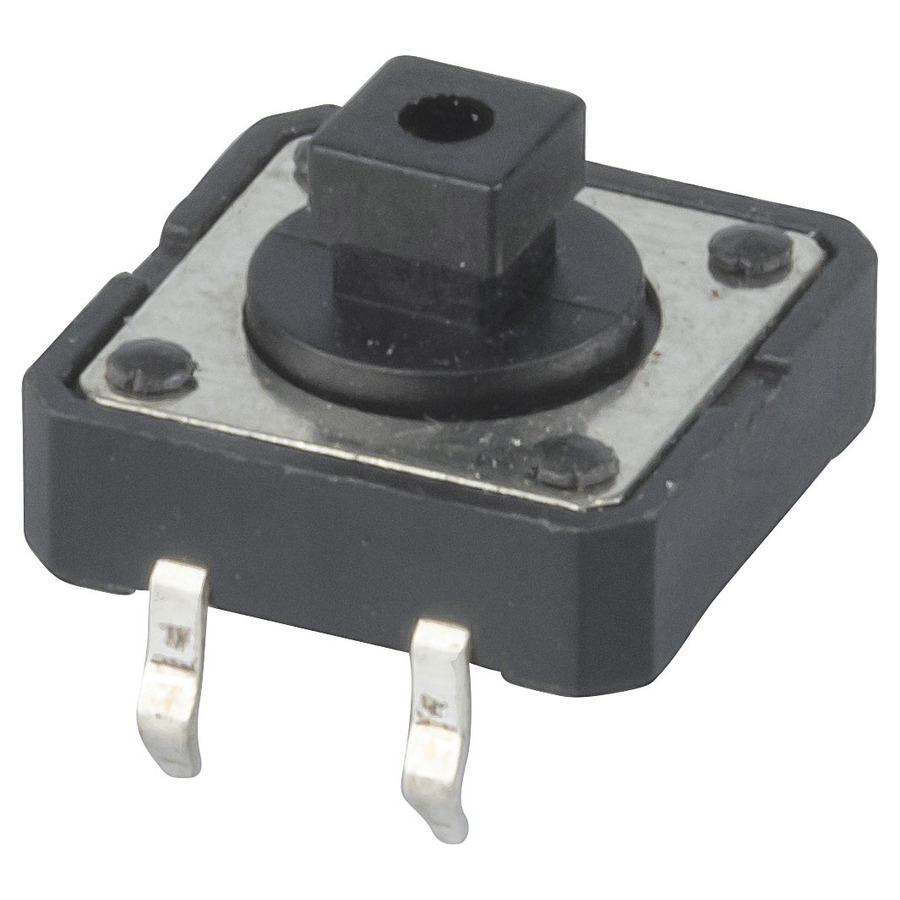

SPST PCB Mount Tactile Switch Square
SPST PCB Mount Tactile Switch Square
SPST PCB Mount Tactile Switch Square

CAT. No. SP0608

SPST PCB Mount Tactile Switch Square
product image thumb
product image thumb

SPST PCB Mount Tactile Switch Square

$1.99
Rating 12VDC 50mAOperating Temperature 20~70°CContact Resistance 100mR Max.Insulation Resistance 100mR Min. at100VDCWithstand Voltage 250VAC for 1 min...

Please call (02) 4782 6943

Description

Normally open SPST square micro tactile switch.

    Specifications

    Electromechanical Switch

    Dielectric Strength
    		 100V
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Tactile Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Black

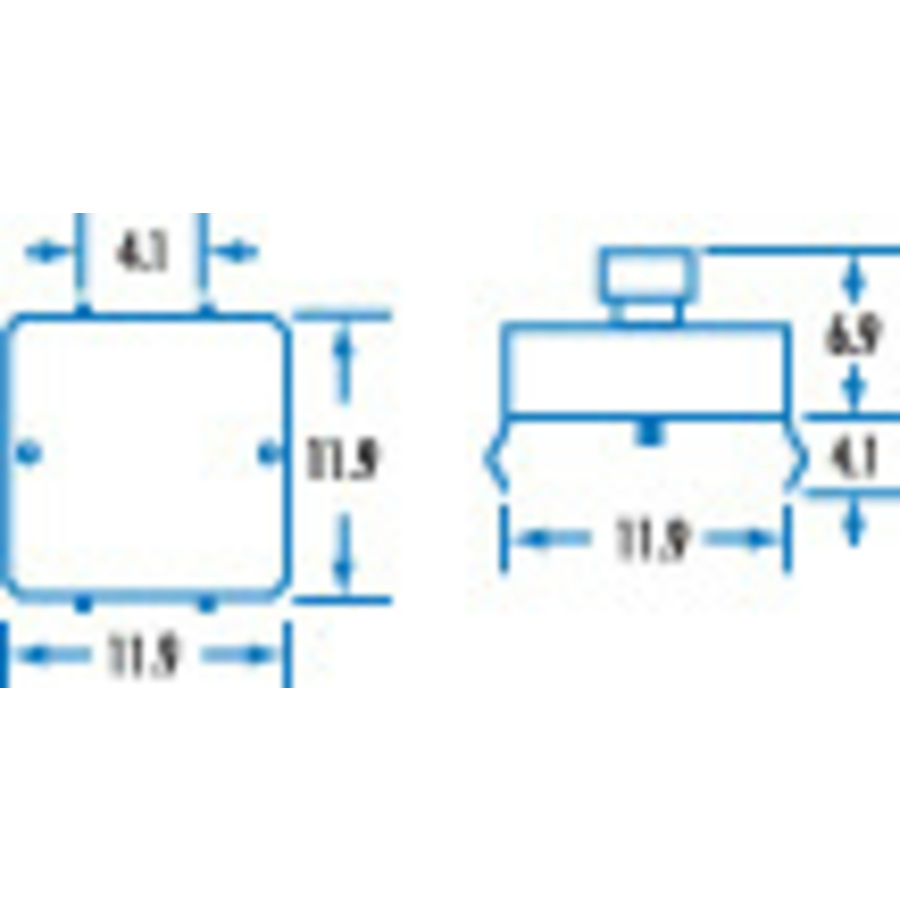

    Actuator Width
    		 11.9mm
    Actuator Length
    		 11.9mm
    Contact Resistance
    		 100?
    Insulation Resistance
    		 100M?
    Mechanism Material
    		 Plastic

    Product Mounting

    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50A

    Packaged Dimensions

    Packaged Length
    		 1.2cm
    Packaged Width
    		 1.2cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001152l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0608-dataSheetMain.pdf
