CAT. No. SP0609

SPST PCB Mount Tactile Switch Round
product image thumb
product image thumb

SPST PCB Mount Tactile Switch Round

$1.75
Rating 12VDC 50mAOperating Temperature -20~70°CContact Resistance 100mR Max.Insulation Resistance 100mR Min. at 100VDCWithstand Voltage 250VAC for 1 m...

Please call (02) 4782 6943

Description

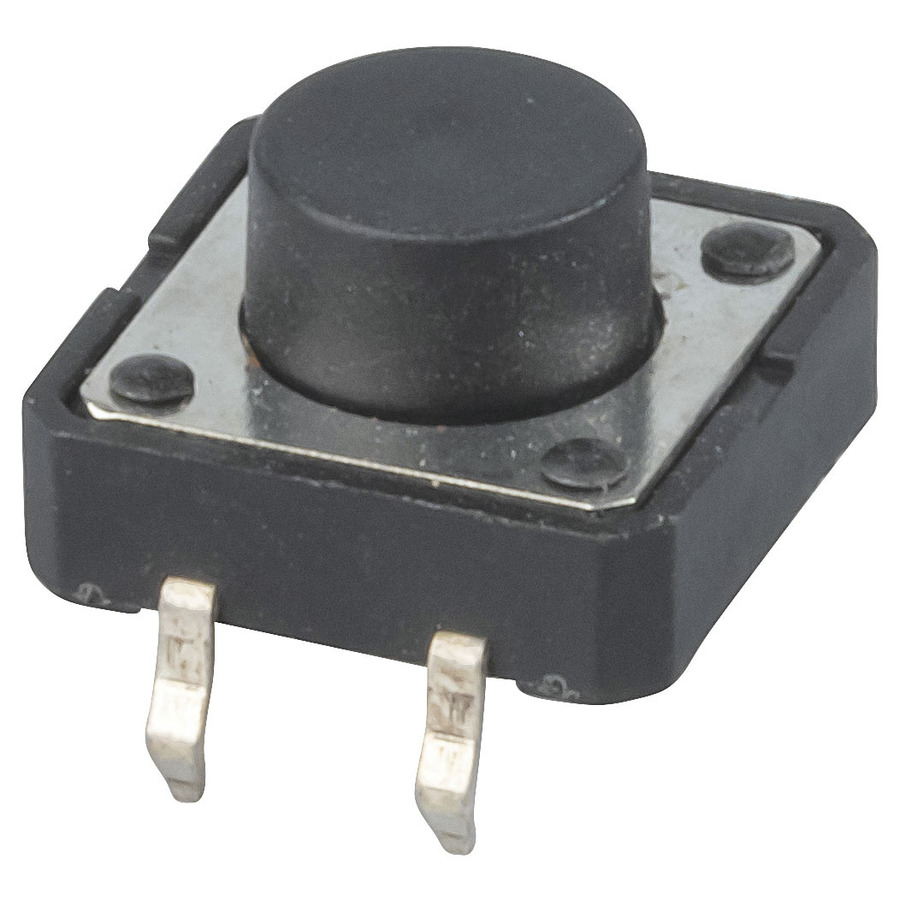

Normally open SPST round micro tactile switch.

    Specifications

    Electromechanical Switch

    Actuator Diameter
    		 6.5mm
    Dielectric Strength
    		 100V
    Switch Connection
    		 PCB Pins
    Switch Type
    		 Tactile Pushbutton
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic
    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Contact Resistance
    		 100?
    Insulation Resistance
    		 100M?
    Actuator Height
    		 3.3mm

    Product Mounting

    Pin Spacing Depth
    		 4.1mm
    Pin Spacing Width
    		 11.9mm
    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50A

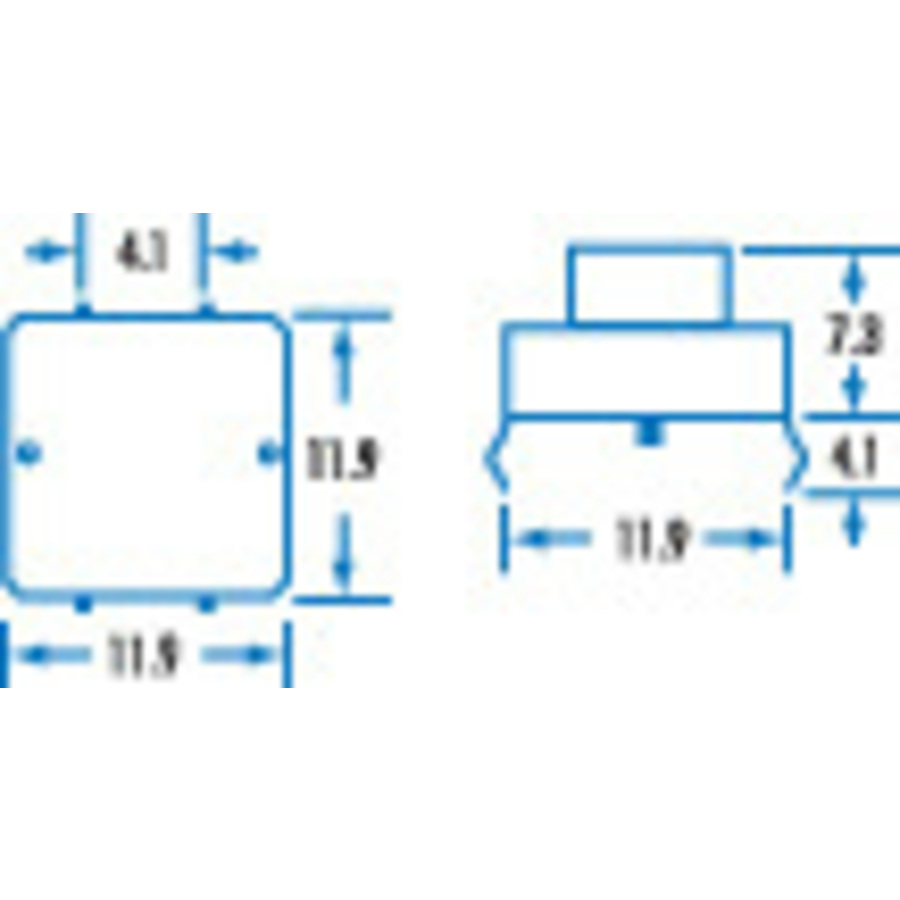

    Product Dimensions

    Length
    		 11.9mm
    Height
    		 7.3mm
    Width
    		 11.9mm

    Packaged Dimensions

    Packaged Length
    		 1.3cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.002028l
    Packaged Height
    		 1.2cm

    Product Availability

    Availability
    		 Stocked item
