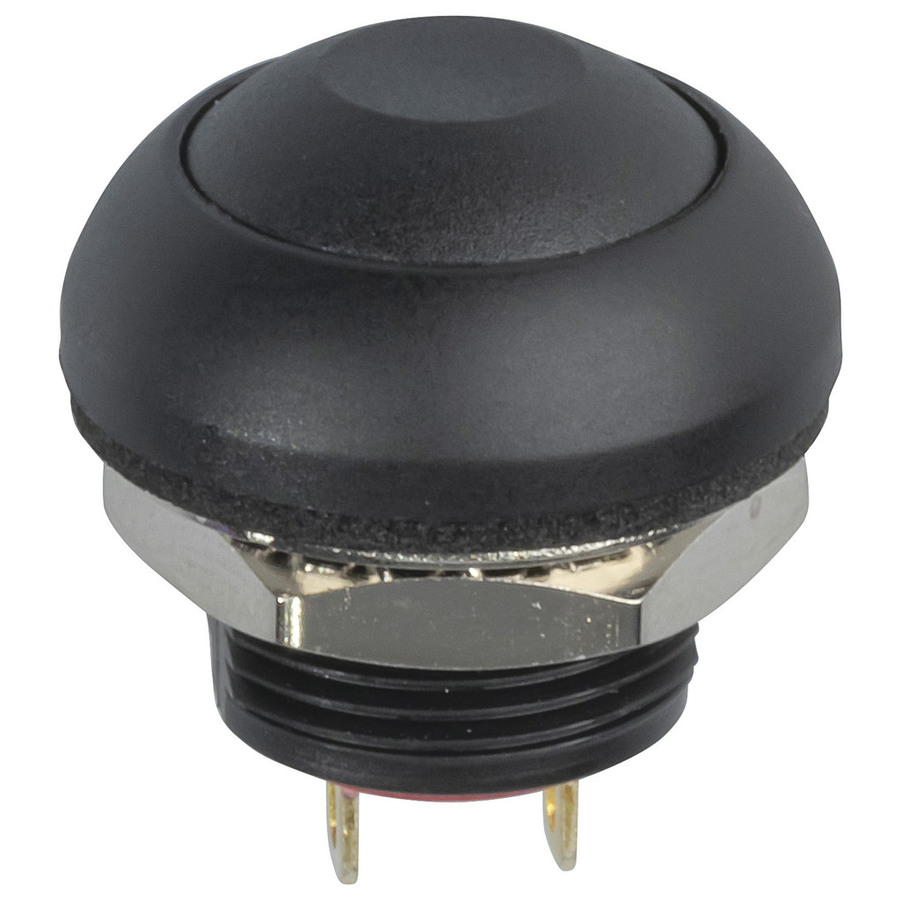

IP67 Rated Dome Pushbutton Switch Black
IP67 Rated Dome Pushbutton Switch Black

CAT. No. SP0656

IP67 Rated Dome Pushbutton Switch Black
product image thumb

IP67 Rated Dome Pushbutton Switch Black

$6.9
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

IP67 rated for harsh environments, low profile dome shape, momentary action.
Black: SP-0656
Red: SP-0657
Specifications:
- 32VAC @400mA
- 50VDC @100mA
- 125VAC @125mA

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic

    Product Mounting

    Round Mount Hole Diameter
    		 12mm

    DC Voltage Rating

    DC Voltage
    		 50V

    DC Current Rating

    DC current rating
    		 100mA

    Ingress Protection Rating

    IP Rating
    		 67
    IP Rating certificate
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 7 - Immersion up to 1m

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1.7cm
    Packaged Weight
    		 0.003kg
    Packaged Volume
    		 0.00578l
    Packaged Height
    		 1.7cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0656-dataSheetMain.pdf
