CAT. No. SP0700

Small Black SPST NO Momentary Action
product image thumb
product image thumb

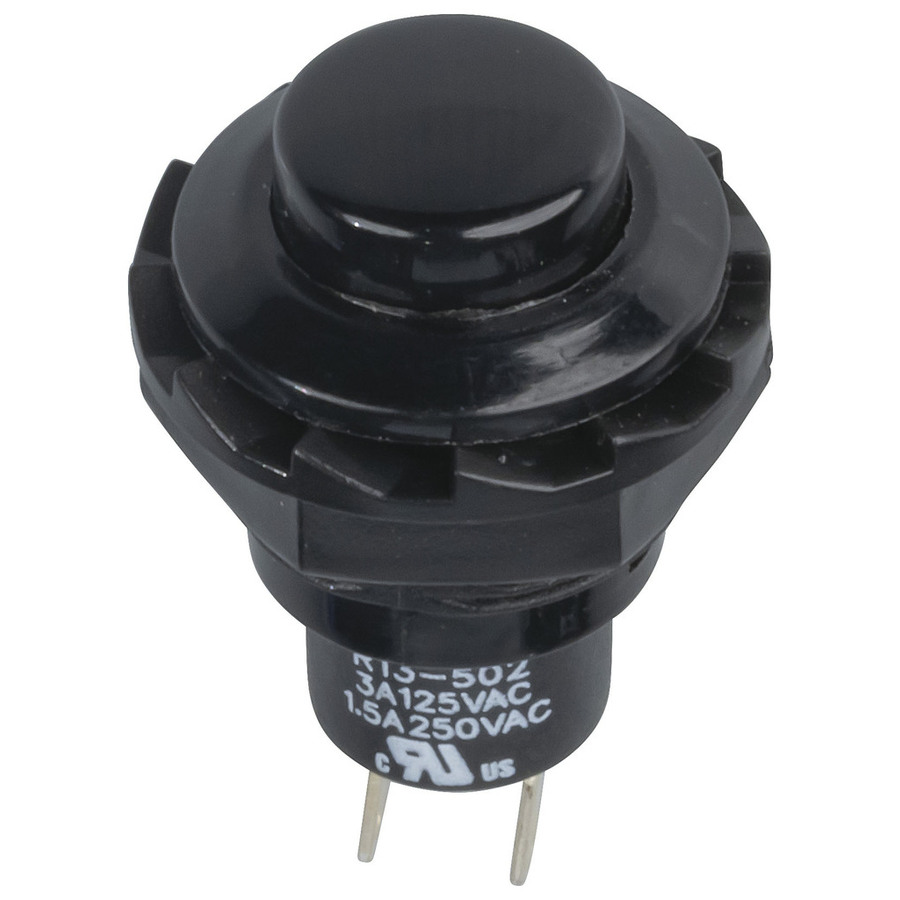

Small Black SPST NO Momentary Action

$5.25
Very attractive small round momentary push on switch, with black body and black actuator, rated @ 1.5A 250 VAC.Cutout is 12.5mm...

Please call (02) 4782 6943

Description

Very attrActive small round momentary push on switch, with black body and black actuator.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic

    Product Mounting

    Round Mount Hole Diameter
    		 12mm

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 1.5A

    Packaged Dimensions

    Packaged Length
    		 7cm
    Packaged Width
    		 5.5cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.077l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0700-dataSheetMain.pdf
