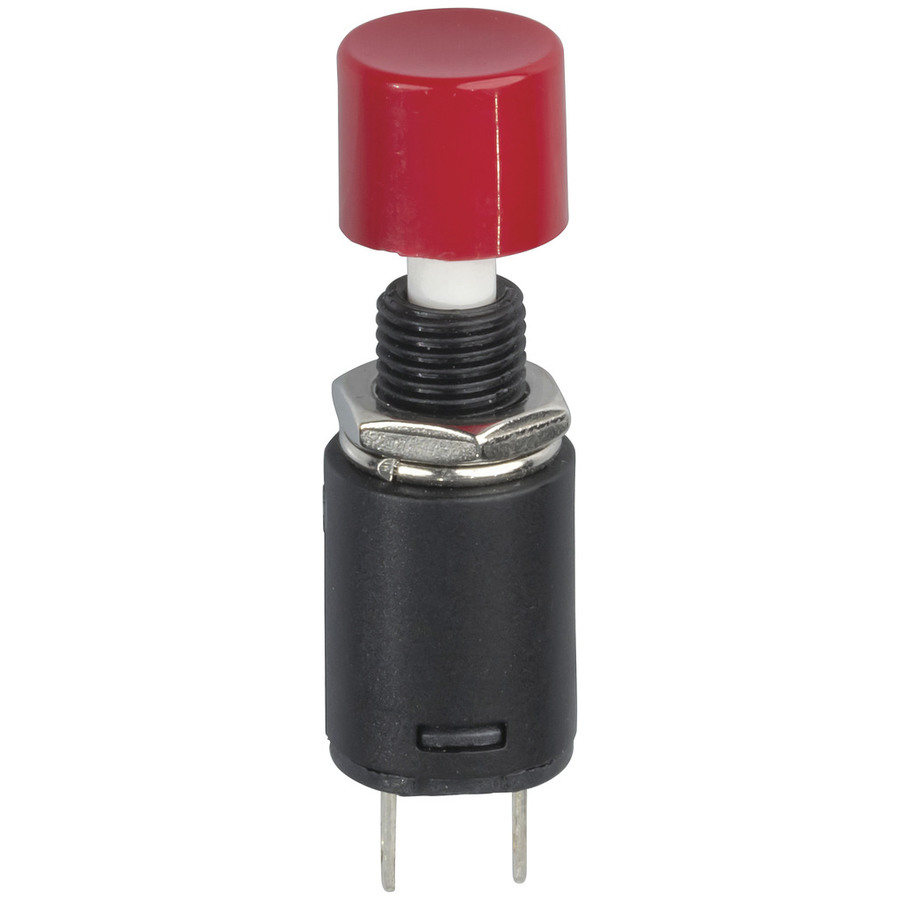

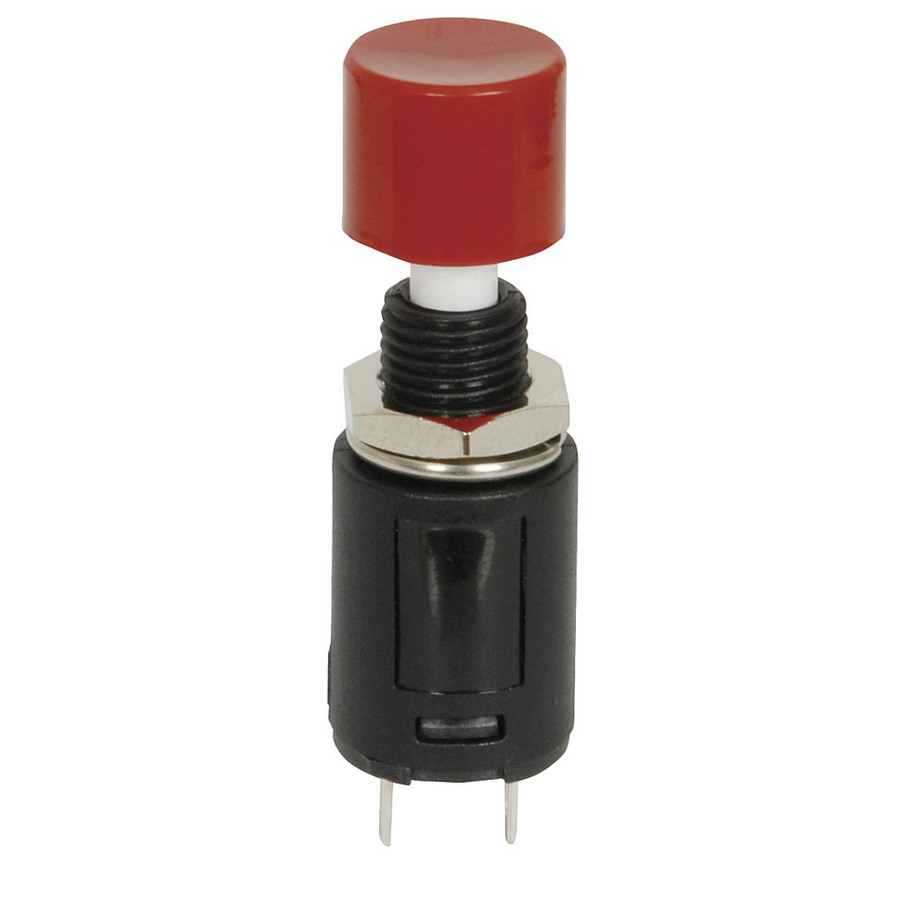

SPST Red Momentary Round Pushbutton
SPST Red Momentary Round Pushbutton
SPST Red Momentary Round Pushbutton
SPST Red Momentary Round Pushbutton

CAT. No. SP0702

SPST Red Momentary Round Pushbutton
product image thumb
product image thumb
product image thumb

SPST Red Momentary Round Pushbutton

$4.95
SPST momentary push on swithRated @ 1.5A 250 VACActuator diameter 10mmCutout 7mm...

Please call (02) 4782 6943

Description

SPST momentary push on swith.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Red
    Mechanism Material
    		 Plastic

    Product Mounting

    Round Mount Hole Diameter
    		 10mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 1.5A

    Packaged Dimensions

    Packaged Length
    		 11.4cm
    Packaged Width
    		 6.8cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.07752l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item
