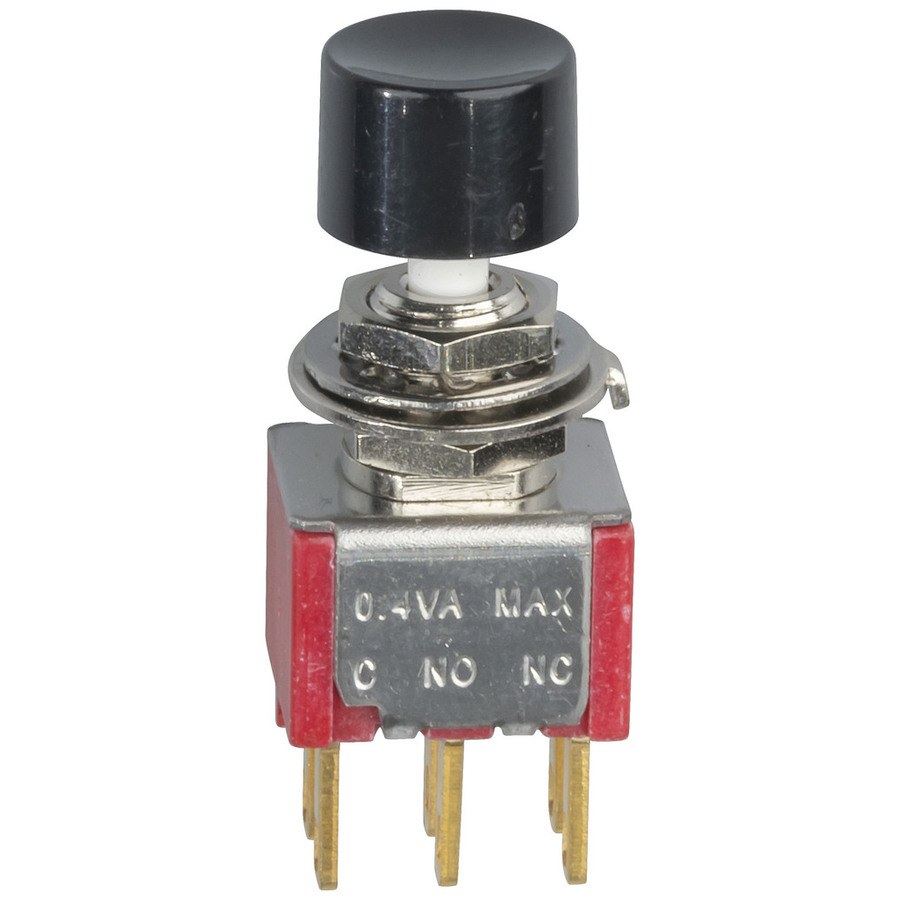

DPDT Quality Pushbutton
DPDT Quality Pushbutton
DPDT Quality Pushbutton

CAT. No. SP0714

DPDT Quality Pushbutton
product image thumb
product image thumb

DPDT Quality Pushbutton

$11.5
Rated 3A 125V AC6mm mounting hole.Momentary ActionDPDTBlack Actuator...

Please call (02) 4782 6943

Description

Momentary Action DPDT Black Actuator.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 DPDT
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic

    Product Mounting

    Round Mount Hole Diameter
    		 10mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 125V

    AC Current Rating

    AC current rating
    		 3A

    Packaged Dimensions

    Packaged Length
    		 8cm
    Packaged Width
    		 4cm
    Packaged Weight
    		 0.007kg
    Packaged Volume
    		 0.032l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0714-dataSheetMain.pdf
