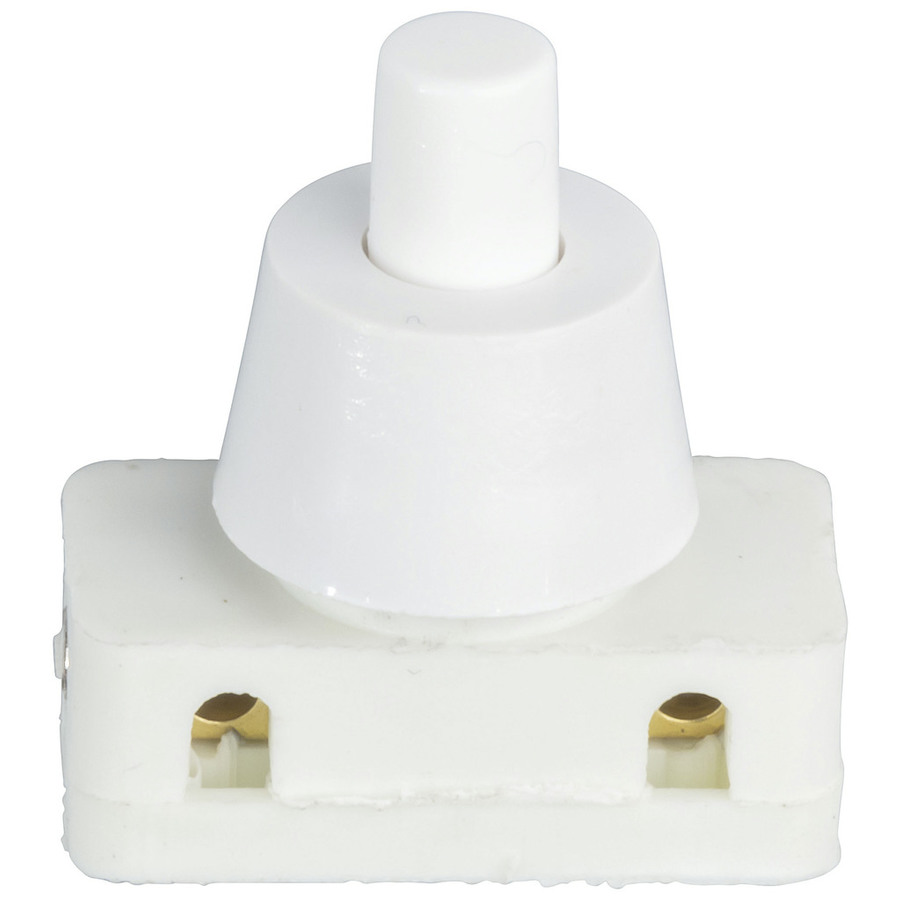

240V 2A Bed Lamp Style Pushbutton Switch SPST
240V 2A Bed Lamp Style Pushbutton Switch SPST

CAT. No. SP0735

240V 2A Bed Lamp Style Pushbutton Switch SPST
product image thumb

240V 2A Bed Lamp Style Pushbutton Switch SPST

$2.97
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

1 Year Warranty
240V Mains Power

Universal pushbutton switch suitable for replacing switches in some equipment. Also commonly used in small electronics projects such as school science experiments due to ease of connection.
• Pusbutton stem: 7(L) x 5(Dia.)mm


    Specifications

    Product Dimensions

    Length
    		 24mm
    Height
    		 25mm
    Width
    		 12mm

    Electromechanical Switch

    Cycle Life
    		 50000 cycles
    Switch Function
    		 Locking On/Off
    Actuator Diameter
    		 5mm
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Screw Terminal
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Actuator Length
    		 6mm
    Centre Off
    Mechanism Material
    		 Acrylic

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Max Mount Panel Thickness
    		 2.5mm
    Round Mount Hole Diameter
    		 10mm
    Mounting Method
    		 Panel

    DC Voltage Rating

    DC Voltage
    		 32V

    DC Current Rating

    DC current rating
    		 4A

    AC Voltage Rating

    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 2A

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.0054kg
    Packaged Volume
    		 0.0075l
    Packaged Height
    		 1cm
    Warranty: 12 Months
