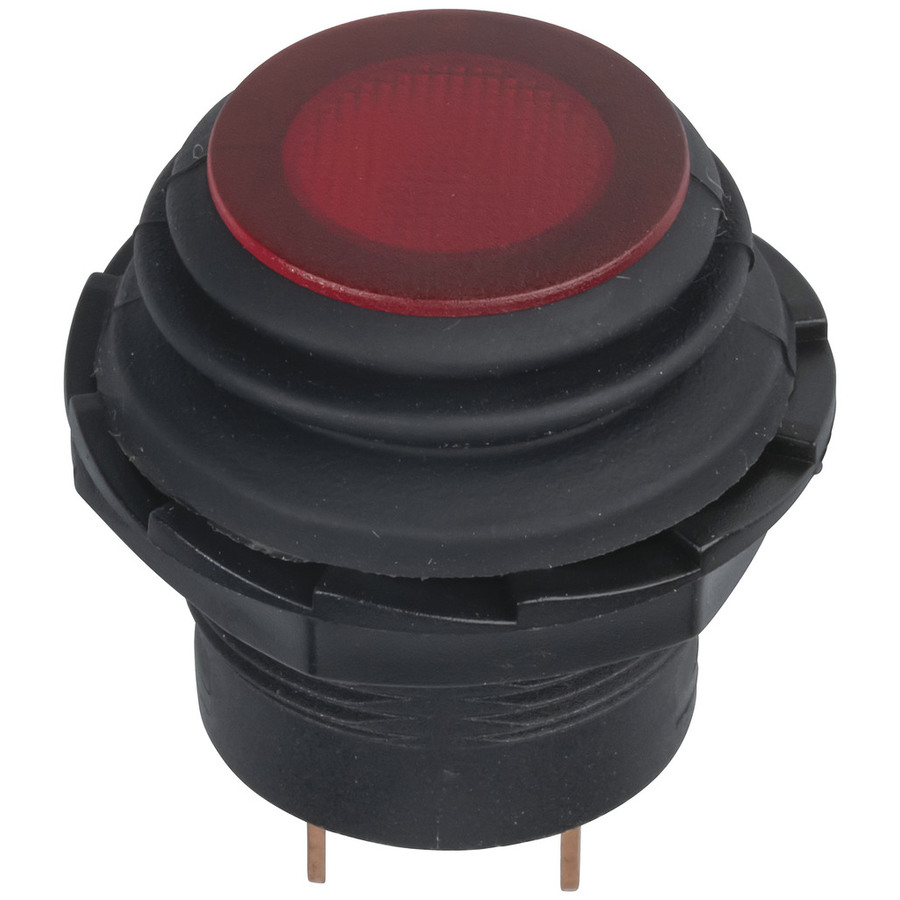

Red Latching IP65 Pushbutton Switch
Red Latching IP65 Pushbutton Switch

CAT. No. SP0759

Red Latching IP65 Pushbutton Switch
product image thumb

Red Latching IP65 Pushbutton Switch

$12.95
- SPST push on-push off - IP65 rated - Illuminated red - Rated for 14V 10A - Mounting hole 22mm...

Please call (02) 4782 6943

Description

• SPST push on-push off
• IP65 rated
• Illuminated red


    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Dielectric Strength
    		 1500V
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Red
    Contact Resistance
    		 50m?
    Insulation Resistance
    		 100?
    Mechanism Material
    		 Plastic

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Max Mount Panel Thickness
    		 6mm
    Round Mount Hole Diameter
    		 22mm
    Mounting Method
    		 Panel

    DC Voltage Rating

    DC Voltage
    		 14V

    DC Current Rating

    DC current rating
    		 10A

    Ingress Protection Rating

    IP Rating
    		 65
    IP Rating certificate
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Dimensions

    Height
    		 38mm
    Diameter
    		 31mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.012kg
    Packaged Volume
    		 0.021875l
    Packaged Height
    		 2.5cm

    In-built Illumination

    Type
    		 5mm Standard LED
    Illumination Colour
    		 Red
    Illumination Position
    		 Top
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 12V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0759-dataSheetMain.pdf
