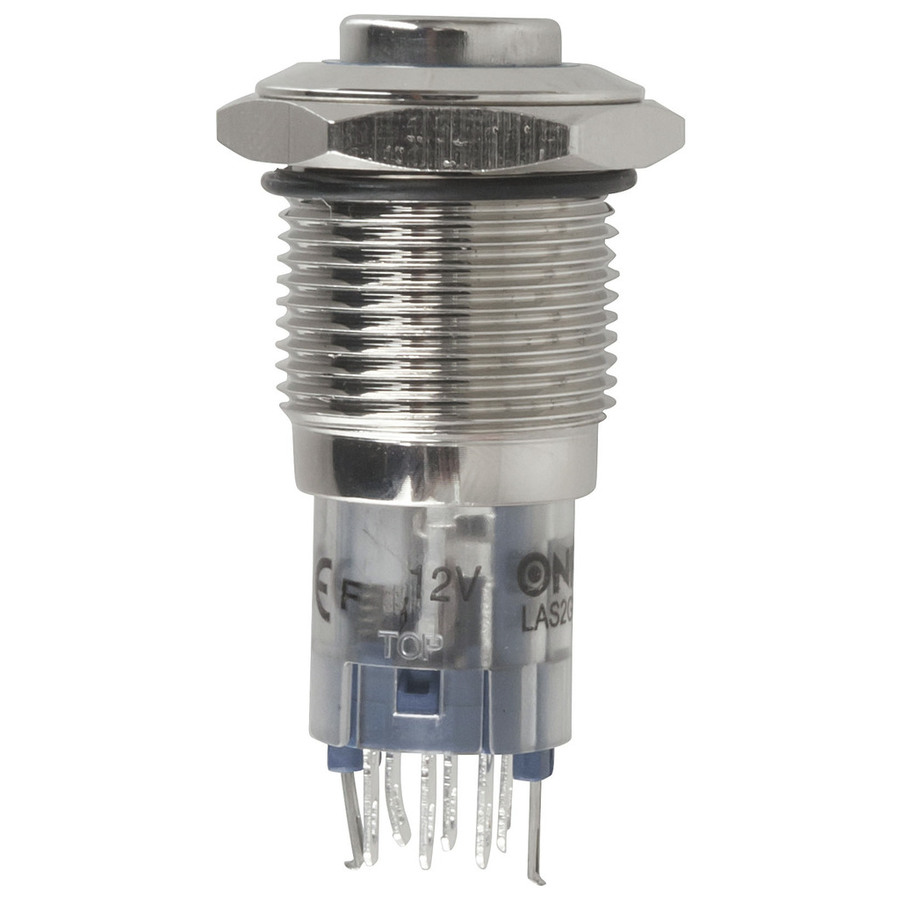

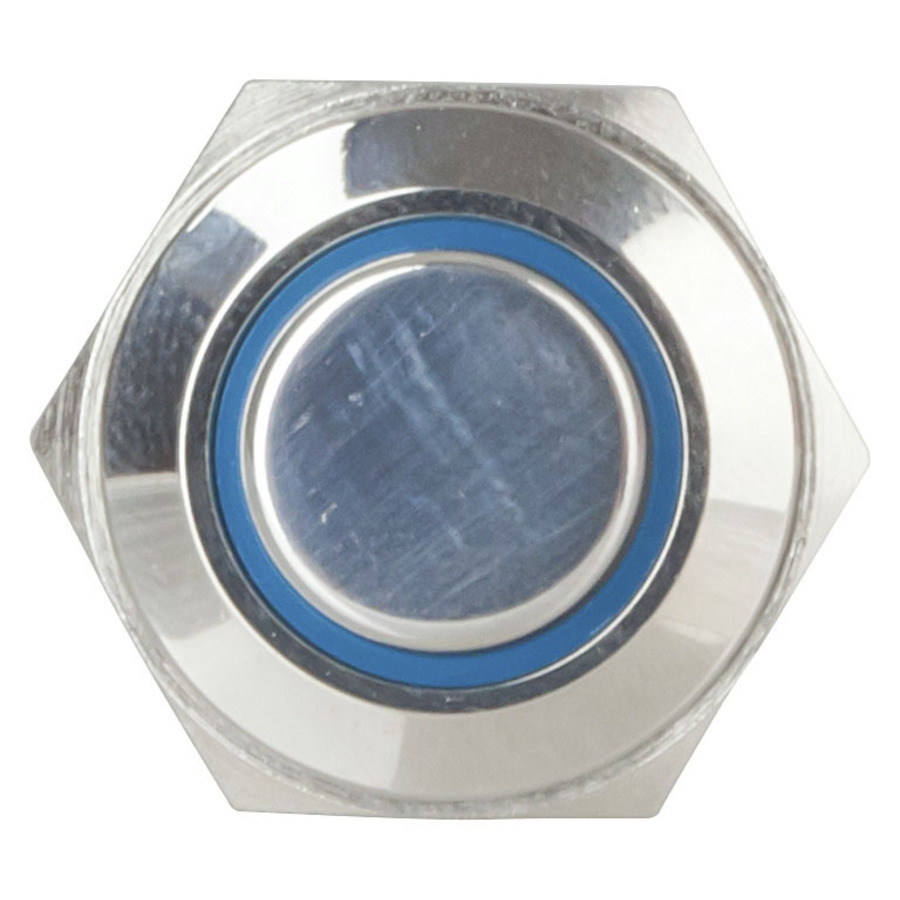

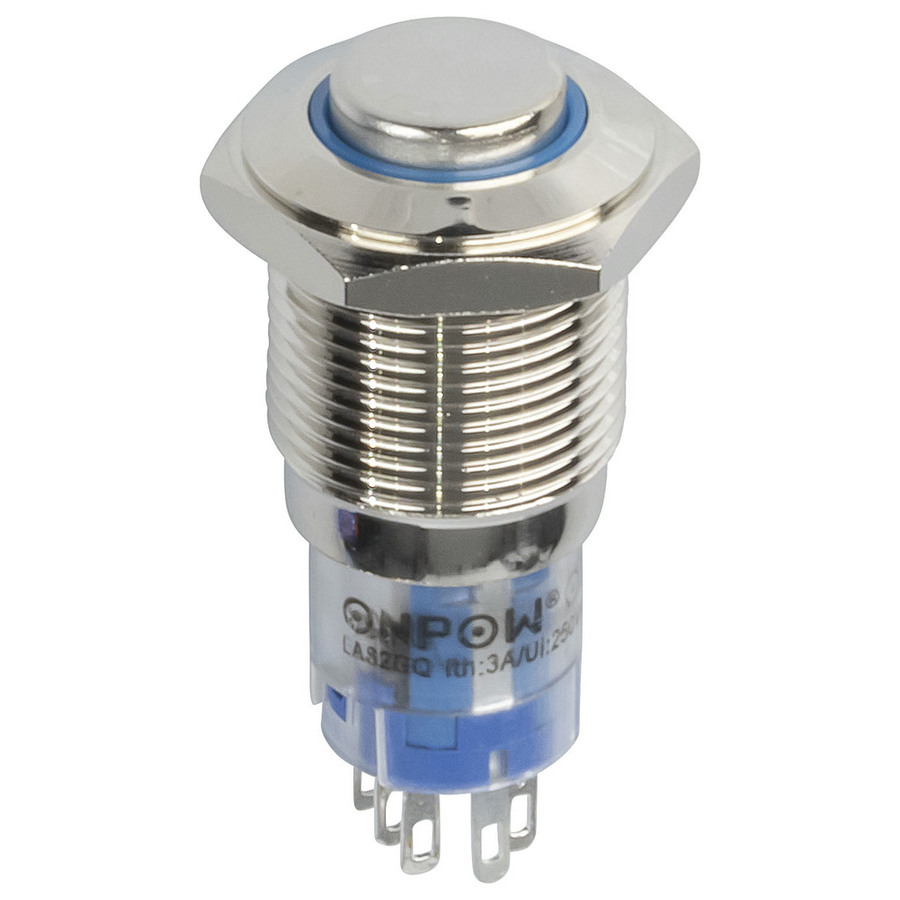

IP67 Blue Illuminated Momentary Switch

$24.95
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

IP67 rated switch for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action. 12V LED illumination.
  • IP67 Rated Illuminated Pushbutton Switch DPDT - Red Cat SP-0791
  • IP67 Rated Illuminated Pushbutton Switch DPDT - Green Cat SP-0792
  • IP67 Rated Illuminated Pushbutton Switch DPDT - Blue Cat SP-0793
  • IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Red Cat SP-0796
  • IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Green Cat SP-0797
  • IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Blue Cat SP-0798

    Specifications

    Product Dimensions

    Height
    		 40mm
    Diameter
    		 22mm

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.014kg
    Packaged Volume
    		 0.016l
    Packaged Height
    		 2cm

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 DPDT
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 16mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 3A

    In-built Illumination

    Type
    		 10mm Standard LED
    Illumination Colour
    		 Blue
    Illumination Position
    		 Top
    Connection
    		 Solder Tags
    Nominal Voltage
    		 12V

    Product Availability

    Availability
    		 Stocked item
