CAT. No. SR1220

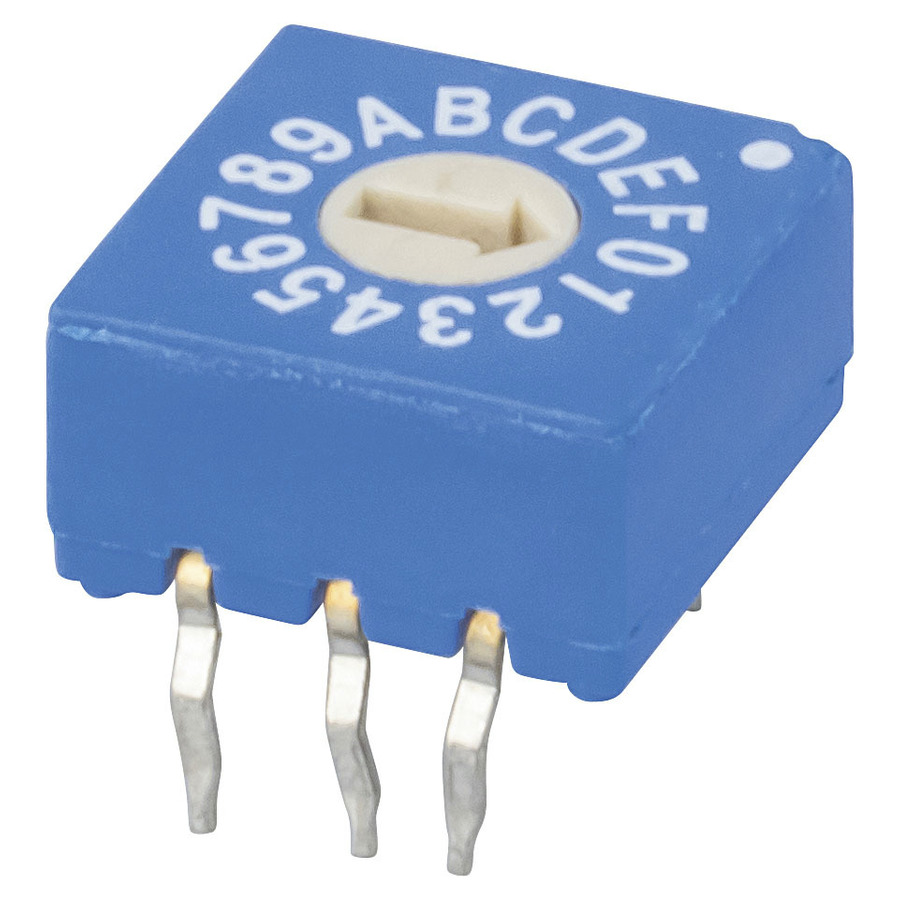

Binary Coded DIL Rotary Switches - BINARY CODED HEX
product image thumb
product image thumb

Binary Coded DIL Rotary Switches - BINARY CODED HEX

$4.95
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is moulded in UL 94V-0 flame retardant plastic.

Features:

Contact rating: Switching: 25mA@24VDC
Non Switching: 100mA@50VDC
Rotational Torque Required: 500gf-cm
Vibration: Per MIL-STD-202F Method 204D
Solderability After flux: 230 +/-5°C for 5 +/- 0.5 sec- 0 through F output


    Specifications

    Electromechanical Switch

    Cycle Life
    		 20000 cycles
    Dielectric Strength
    		 250V
    Switch Type
    		 Rotary, DIL
    Throws / Positions
    		 16pos
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 1000M?

    Product Mounting

    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 24V

    DC Current Rating

    DC current rating
    		 25A

    Operating Temperature

    Operating Temperature
    		 70°C

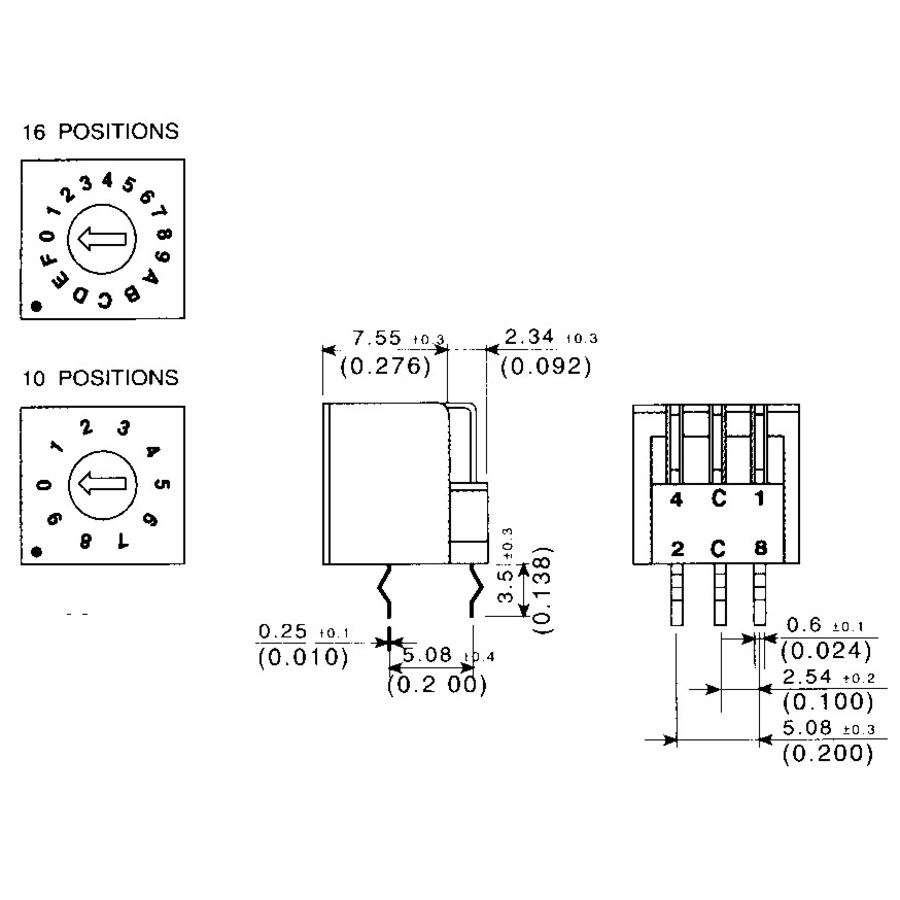

    Product Dimensions

    Length
    		 10mm
    Height
    		 5mm
    Width
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 2.2cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.00616l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item
