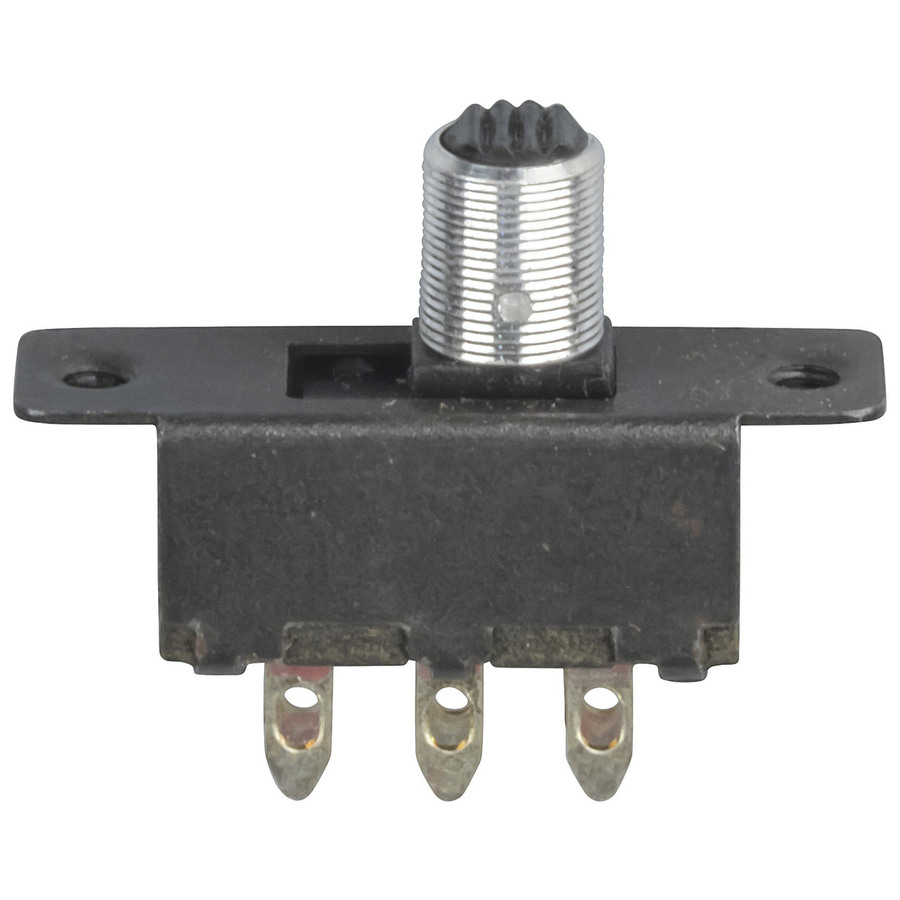

Sub-miniature DPDT Panel Mount Switch
Sub-miniature DPDT Panel Mount Switch

CAT. No. SS0812

Sub-miniature DPDT Panel Mount Switch
product image thumb

Sub-miniature DPDT Panel Mount Switch

$1.99
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

(Spun aluminium actuator) Panel mount. Mounting holes 19mm apart.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Slide
    Switch Colour Coded
    		 Black
    Actuator Height
    		 7mm
    Mechanism Material
    		 Metal

    Product Mounting

    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 Panel

    Product Dimensions

    Length
    		 23mm
    Width
    		 7mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.08cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SS0812-dataSheetMain.pdf
