DPDT Miniature Toggle Switch - Vertical RA
DPDT Miniature Toggle Switch - Vertical RA

CAT. No. ST0365

DPDT Miniature Toggle Switch - Vertical RA
product image thumb

DPDT Miniature Toggle Switch - Vertical RA

$4.95
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

FEATURES:

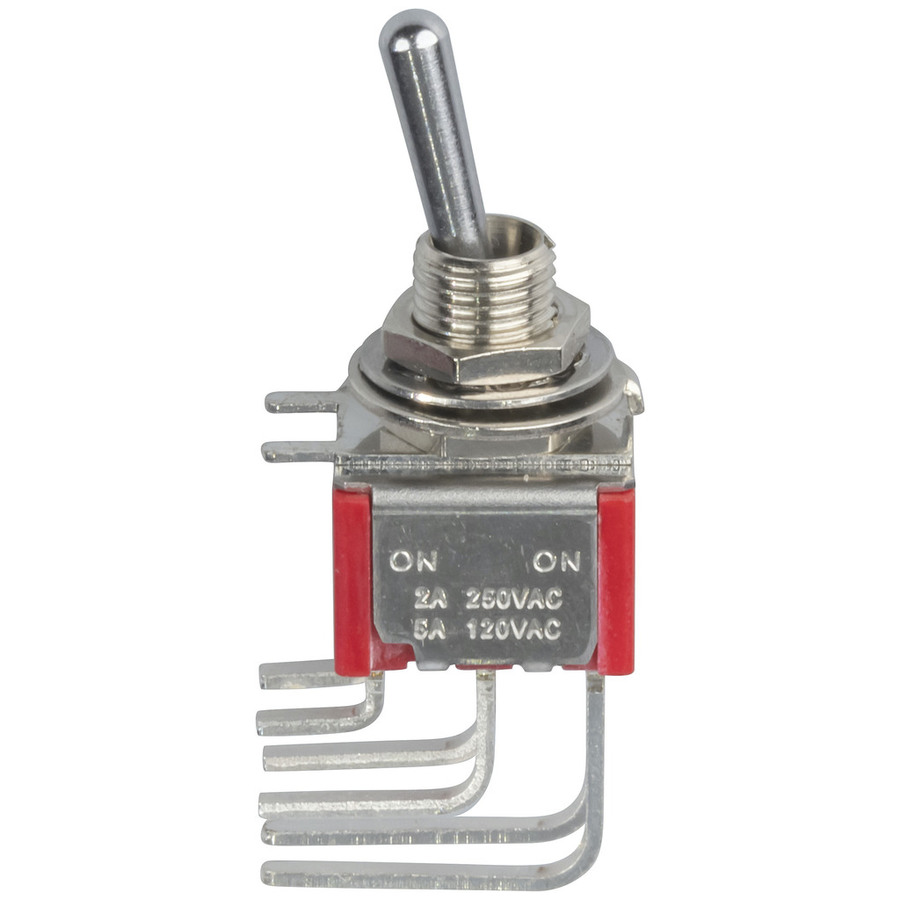

VERTICAL RIGHT ANGLE PCB MOUNT
Brackets indicate switch position Threaded Bush (on - none - on)
OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.

    Specifications

    Electromechanical Switch

    Cycle Life
    		 30000 cycles
    Switch at Right Angles to Mount
    Dielectric Strength
    		 1000V
    Switch Connection
    		 PCB Pins
    Switch Type
    		 Toggle
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 4.83mm
    Actuator Length
    		 6.86mm
    Contact Resistance
    		 20?
    Insulation Resistance
    		 1000?

    Product Mounting

    Mounting Method
    		 Behind Panel, PCB

    DC Voltage Rating

    DC Voltage
    		 28V

    DC Current Rating

    DC current rating
    		 3A

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 1A

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 1.2cm
    Packaged Weight
    		 0.008kg
    Packaged Volume
    		 0.0072l
    Packaged Height
    		 4cm
