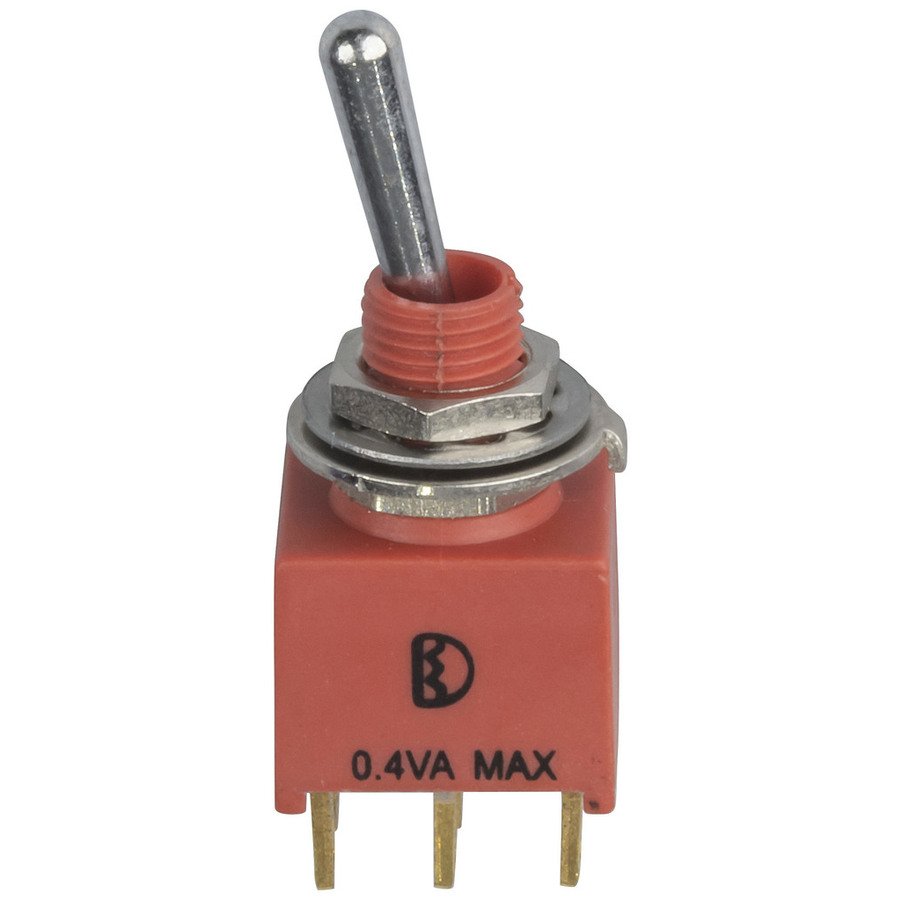

Sealed Mini Toggle Switch
Sealed Mini Toggle Switch

CAT. No. ST0555

Sealed Mini Toggle Switch
product image thumb

Sealed Mini Toggle Switch

$7.95
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

Ideal for use use in wet or moist areas. Rated at 0.4A, 250VAC. Splash proof 1PS4 rated.

    Specifications

    Electromechanical Switch

    Cycle Life
    		 40000 cycles
    Dielectric Strength
    		 1000V
    Switch Type
    		 Toggle
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 12.7mm
    Actuator Length
    		 10.6mm
    Contact Resistance
    		 10?
    Insulation Resistance
    		 1000?

    Product Mounting

    Mounting Method
    		 Behind Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 2A

    Ingress Protection Rating

    IP Rating certificate

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.0027l
    Packaged Height
    		 2.7cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ST0555-dataSheetMain.pdf
