15A SPST Marine Toggle Switch
15A SPST Marine Toggle Switch
15A SPST Marine Toggle Switch

CAT. No. ST0574

15A SPST Marine Toggle Switch
product image thumb
product image thumb

15A SPST Marine Toggle Switch

$22.95
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

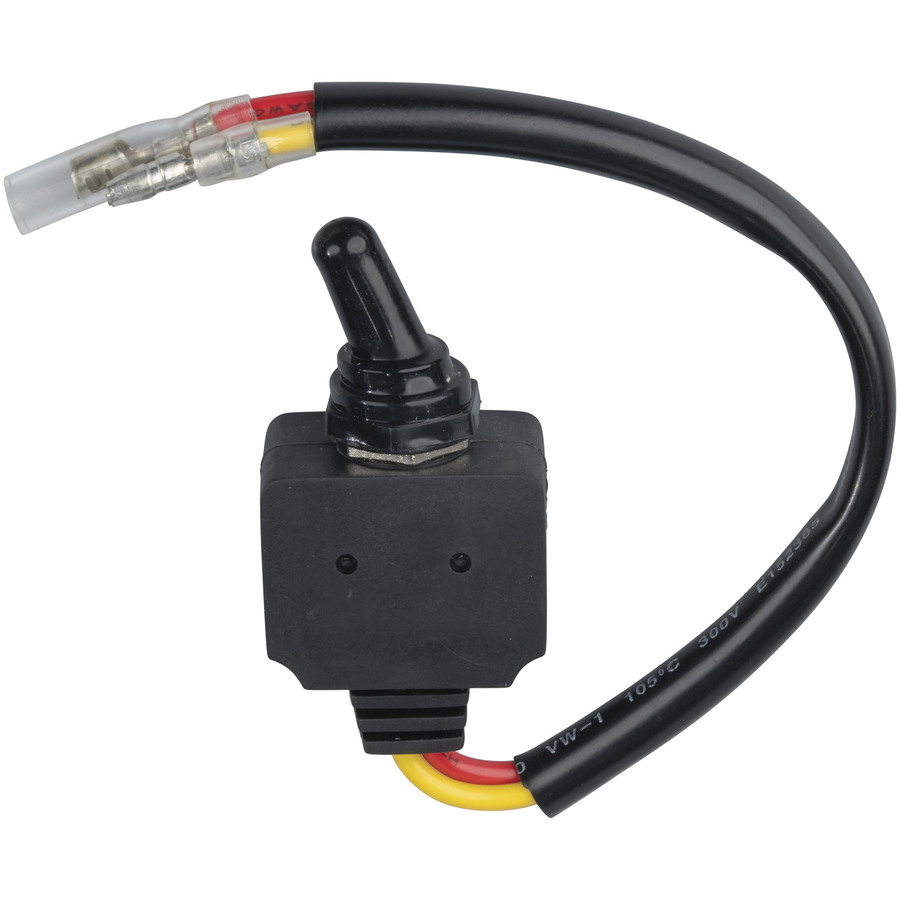

This large toggle switch is specially designed for marine conditions. A weatherproof rubber boot covers the actuator, and the switch mechanism is encapsulated in rubber. For this reason, 150mm fly leads are attached instead of the usual terminals. Not only limited to marine use, it can also be used as an ultra-durable switch in many applications

    Specifications

    Electromechanical Switch

    Cycle Life
    		 40000 cycles
    Dielectric Strength
    		 1000V
    Switch Type
    		 Toggle
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos

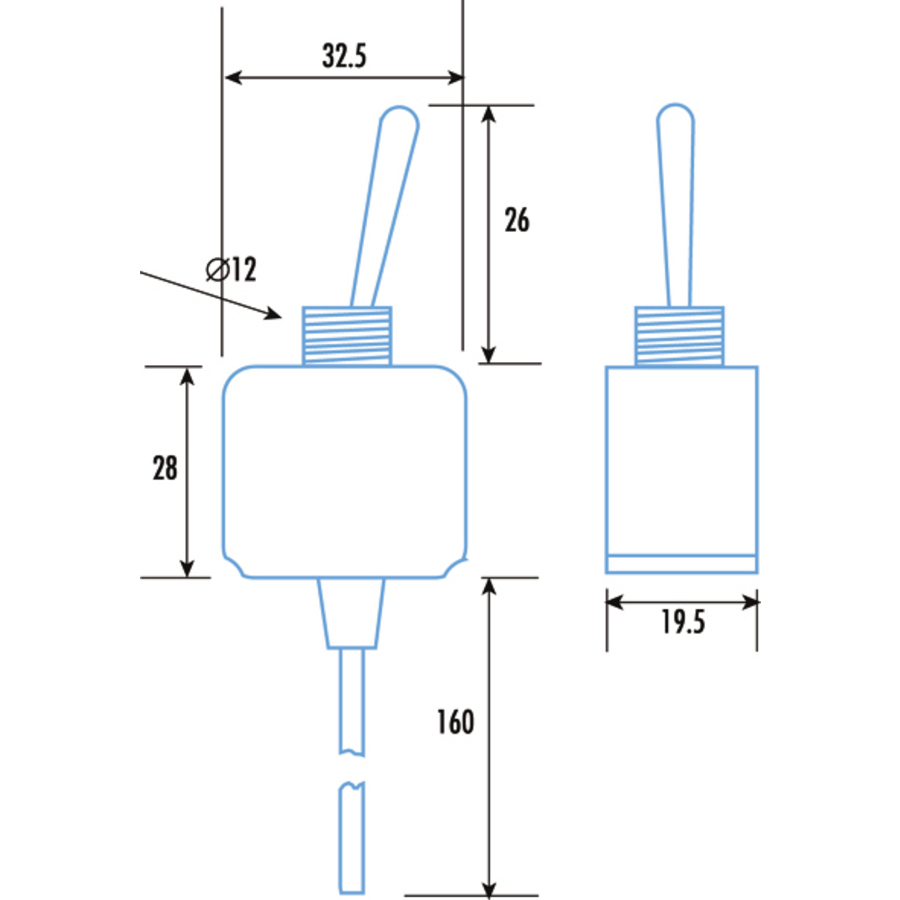

    Actuator Width
    		 19.5mm
    Actuator Length
    		 14mm
    Contact Resistance
    		 10M?
    Insulation Resistance
    		 1000M?

    Product Mounting

    Mounting Method
    		 Behind Panel

    DC Voltage Rating

    DC Voltage
    		 24V

    DC Current Rating

    DC current rating
    		 15A

    Packaged Dimensions

    Packaged Length
    		 26cm
    Packaged Width
    		 3.5cm
    Packaged Weight
    		 0.058kg
    Packaged Volume
    		 0.182l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ST0574-dataSheetMain.pdf
