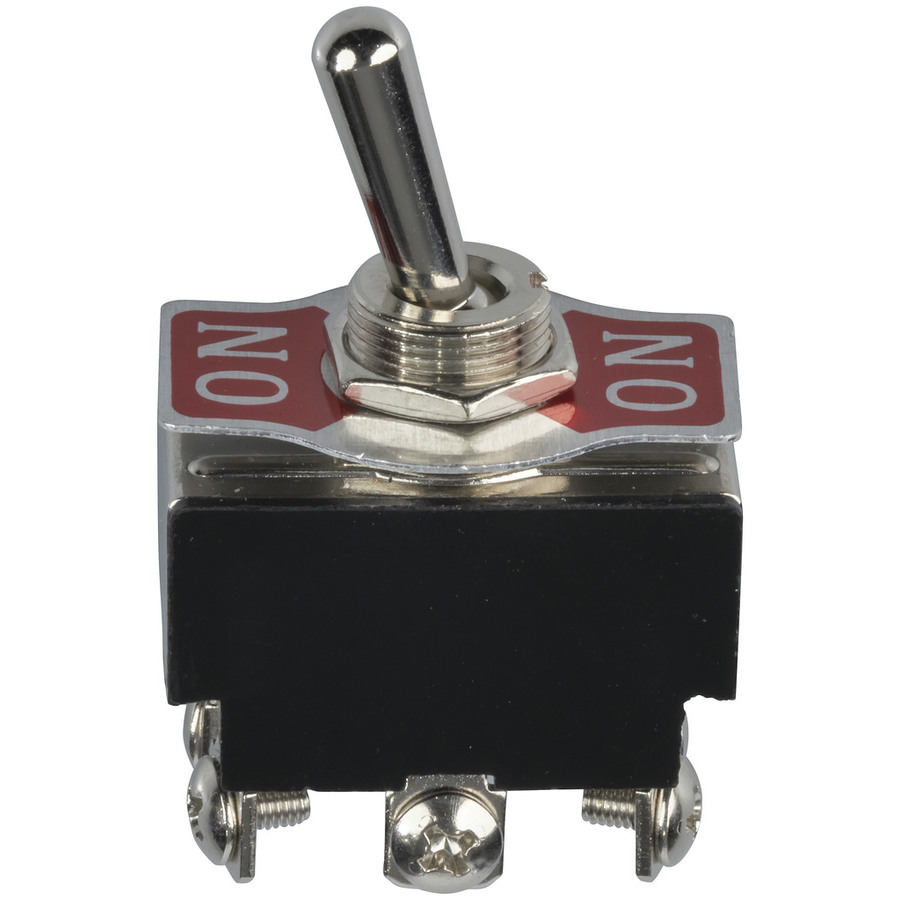

DPDT 6A 250VAC Extra Heavy Duty Toggle Switch
DPDT 6A 250VAC Extra Heavy Duty Toggle Switch

CAT. No. ST0575

DPDT 6A 250VAC Extra Heavy Duty Toggle Switch
product image thumb

DPDT 6A 250VAC Extra Heavy Duty Toggle Switch

$6.75
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

Rated at 6A 250VAC (10A at 125VAC), this switch will handle mains power switching. No soldering required.


    Specifications

    Electromechanical Switch

    Cycle Life
    		 40000 cycles
    Dielectric Strength
    		 1000V
    Switch Connection
    		 Screw Terminal
    Switch Type
    		 Toggle
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 19mm
    Actuator Length
    		 18.5mm
    Contact Resistance
    		 10M?
    Insulation Resistance
    		 1000M?

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Behind Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 10A

    Packaged Dimensions

    Packaged Length
    		 3.2cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.032kg
    Packaged Volume
    		 0.0352l
    Packaged Height
    		 5.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ST0575-dataSheetMain.pdf
