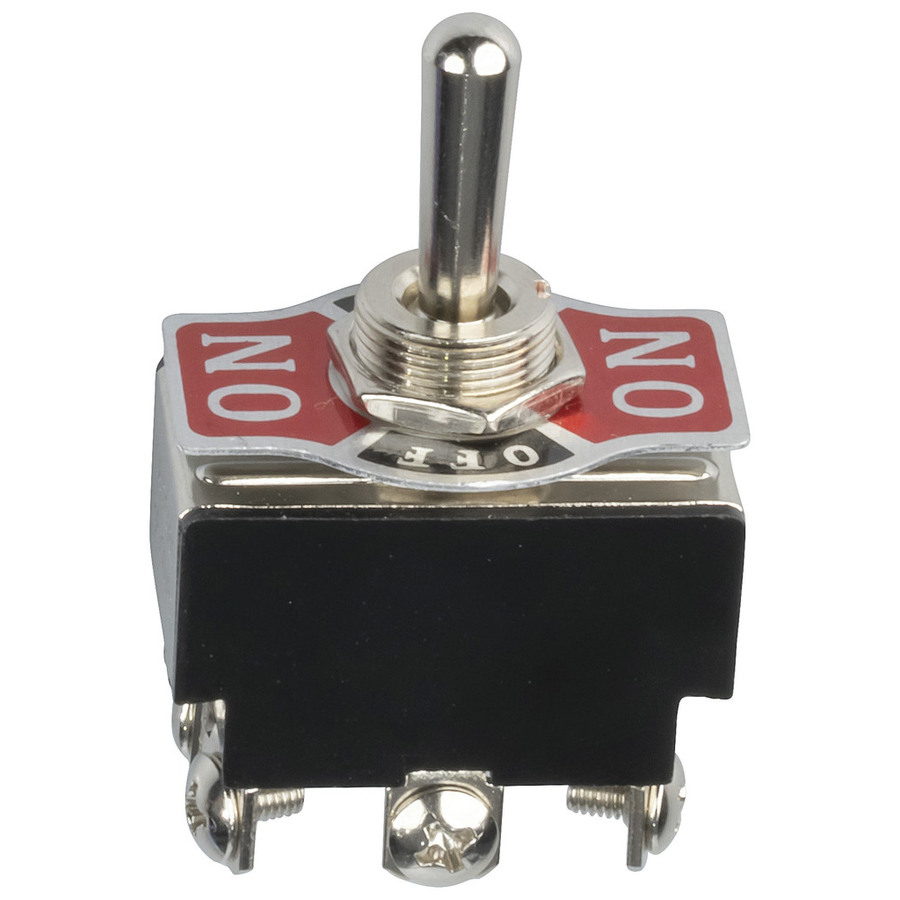

DPDT 6A 240VAC Heavy Duty Centre Off Standard Toggle Switch
DPDT 6A 240VAC Heavy Duty Centre Off Standard Toggle Switch

CAT. No. ST0576

DPDT 6A 240VAC Heavy Duty Centre Off Standard Toggle Switch
product image thumb

DPDT 6A 240VAC Heavy Duty Centre Off Standard Toggle Switch

$7.5
From our range of switches available in a variety of styles suitable for your specific purpose.

Please call (02) 4782 6943

Description

240V Mains Power

Huge 6A 250VAC rating (10A 125VAC), chrome toggle with on/off indicator plate.

- DPDT centre off.
- Screw wire terminals. Same physical size as ST-0575 .


    Specifications

    Electromechanical Switch

    Cycle Life
    		 40000 cycles
    Dielectric Strength
    		 1000V
    Switch Connection
    		 Screw Terminal
    Switch Type
    		 Toggle
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 19mm
    Actuator Length
    		 18.5mm
    Contact Resistance
    		 10?
    Insulation Resistance
    		 1000?
    Centre Off

    Product Mounting

    Mounting Method
    		 Behind Panel

    DC Voltage Rating

    DC Voltage
    		 125V

    DC Current Rating

    DC current rating
    		 10A

    Packaged Dimensions

    Packaged Length
    		 5.2cm
    Packaged Width
    		 3.4cm
    Packaged Weight
    		 0.034kg
    Packaged Volume
    		 0.040664l
    Packaged Height
    		 2.3cm

    Product Availability

    Availability
    		 Stocked item
