100°C Thermal Circuit BreakerSwitch
100°C Thermal Circuit BreakerSwitch

CAT. No. ST3826

100°C Thermal Circuit BreakerSwitch

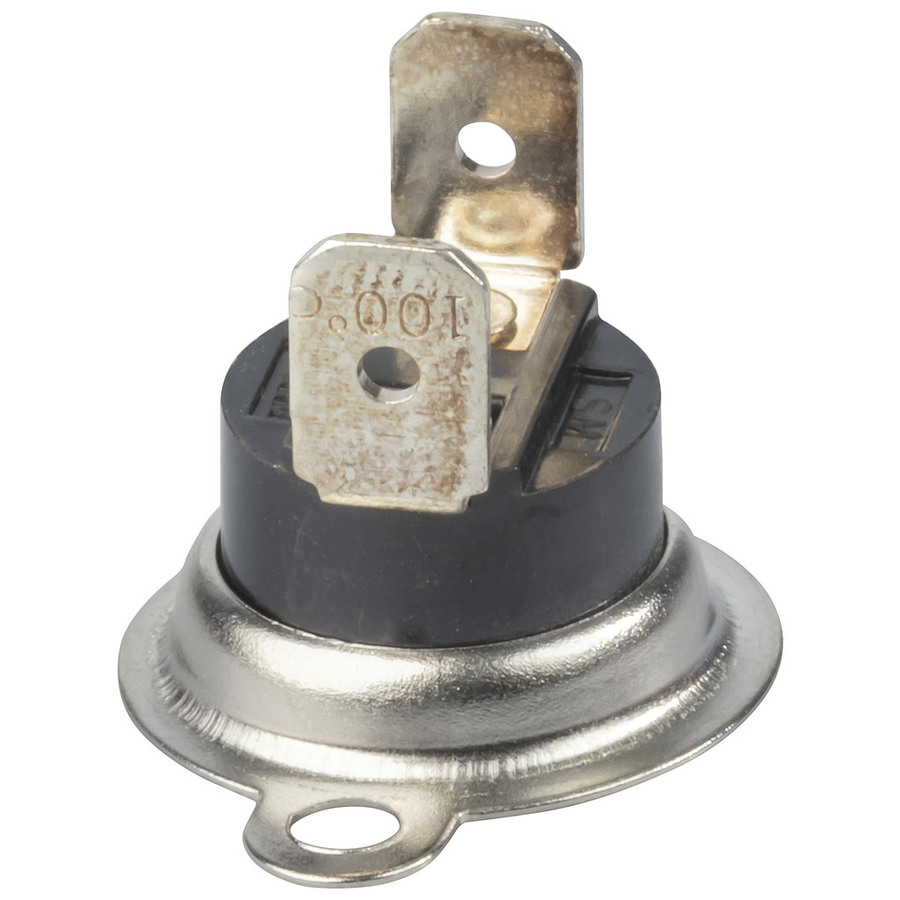

product image thumb

100°C Thermal Circuit BreakerSwitch

$7.5
Also referred to as a thermostat, this safety device will protect a circuit against overheating by opening at a targeted threshold. It closes again automatically once a specific lower temperature is reached. Rated to 100 degrees celcius.

Please call (02) 4782 6943

Description

This phenolic-housed thermostat attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.

    Specifications

    Product Dimensions

    Height
    		 21.2mm
    Diameter
    		 30.3mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2.1cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.01323l
    Packaged Height
    		 2.1cm

    Thermal Switches and Fuses

    Type of thermal switch or fuse
    		 Thermal circuit breaker
    Normally open or normally closed
    		 Normally closed
    Thermal trip temperature
    		 100°C
    Thermal reset method
    		 Automatic
    Thermal reset temp
    		 85°C
    operation cycles
    		 50000, 100000, 30000
    operating tolerance
    		 +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC)
    reset differential
    		 10°C - 50°C
    contact endurance
    		 32VDC-100mA, 125VAC-10A, 250VAC-6A

    Product Availability

    Availability
    		 Stocked item
