48 LED Aluminium LED Strip with Switch
48 LED Aluminium LED Strip with Switch

CAT. No. ST3930

48 LED Aluminium LED Strip with Switch
product image thumb

48 LED Aluminium LED Strip with Switch

$32.95

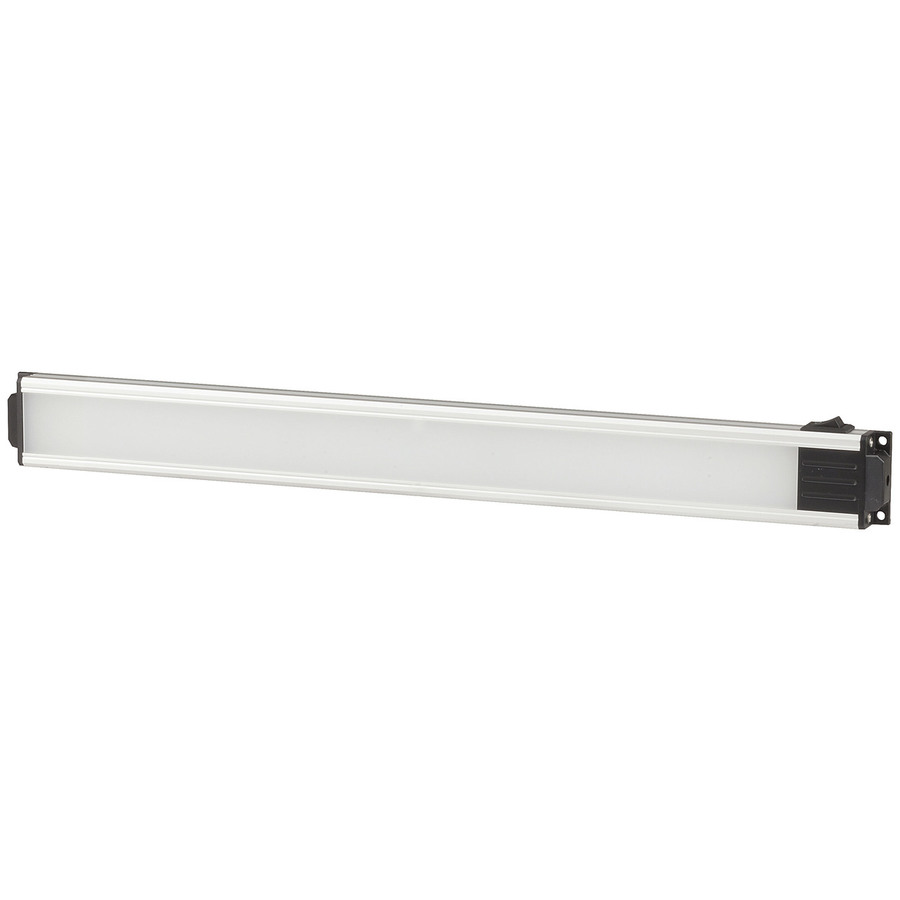

A quick and easy LED strip light solution. The LED strip is pre-assembled in the channel diffuser with an integrated switch.

Please call (02) 4782 6943

Description

1 Year Warranty
LED

A quick and easy LED strip light solution. The LED strip is pre-assembled in the channel diffuser with an integrated switch encased in attrActive anodised aluminium alloy. They feature a generous beam angle with evenly distributed light thanks to the frosted white diffuser. Great for use on window displays, restaurant foyers, showrooms, hotels, and caravan or RV applications. Four mounting screws are included for fast and easy installation. Available in 48 and 84 LED strips.

Suitable accessories:
In-line dimmer: ST3938 - 12VDC/24VDC LED Dimmer Switch
Recommended power supply: MP3486 12VDC 1.5A

    Specifications

    Lighting Details

    LED Quantity
    		 48pc
    Colour Temperature
    		 6000K-6500K
    LED Type
    		 3528 SMD
    LED Connection
    		 SMD

    Light Strips and Modules

    Outdoor Light Type
    		 Universal Strip / Module
    Light Layout
    		 Single Row Array

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Connection Size (Inner Diameter)
    		 1.3mm
    Suitable PSU Included
    Item Connection
    		 Barrel Plug
    DC Current Draw
    		 0.42A

    Product Dimensions

    Length
    		 313mm
    Height
    		 12mm
    Width
    		 30mm

    Packaged Dimensions

    Packaged Length
    		 39.1cm
    Packaged Width
    		 10.8cm
    Packaged Weight
    		 0.144kg
    Packaged Volume
    		 0.97124l
    Packaged Height
    		 2.3cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

      Articles
      Articles

    ST3930-manualMain.pdf
