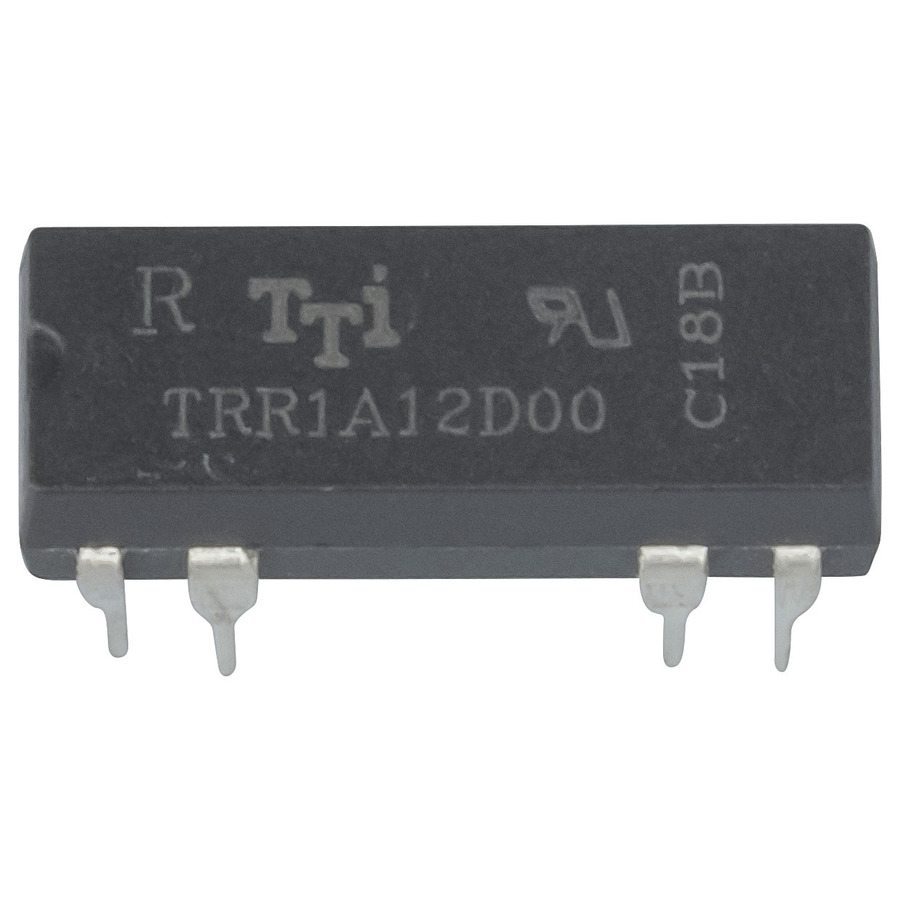

12V SPST DIL Reed Relay
12V SPST DIL Reed Relay

CAT. No. SY4032

12V SPST DIL Reed Relay
product image thumb

12V SPST DIL Reed Relay

$5.85
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open. Nominal Voltage: 12VCoil Resistance: 10...

Please call (02) 4782 6943

Description

They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open. Nominal Voltage: 12V

Features:

- Must Op: 9.00VDC
- Must Release: 0.8VDC
- Contact Voltage: 25max


    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 12A
    Coil Current
    		 12mA
    Nominal Voltage
    		 12V
    Device Type
    		 Reed Relay
    DC Contact Voltage
    		 12V
    Contact format
    		 SPST
    Coil Resistance
    		 1000?
    Pickup Voltage
    		 9V
    Dropout Voltage
    		 1V

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 12A

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 1.8cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0018l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item
