Micro 30A Horn Relays
Micro 30A Horn Relays

CAT. No. SY4045

Micro 30A Horn Relays
product image thumb

Micro 30A Horn Relays

$9.95
Extremely compact with a footprint of only 22 x 15mm, but maintaining high contact currents for automotive applications. Ideal for air horns, fog lamp...

Please call (02) 4782 6943

Description

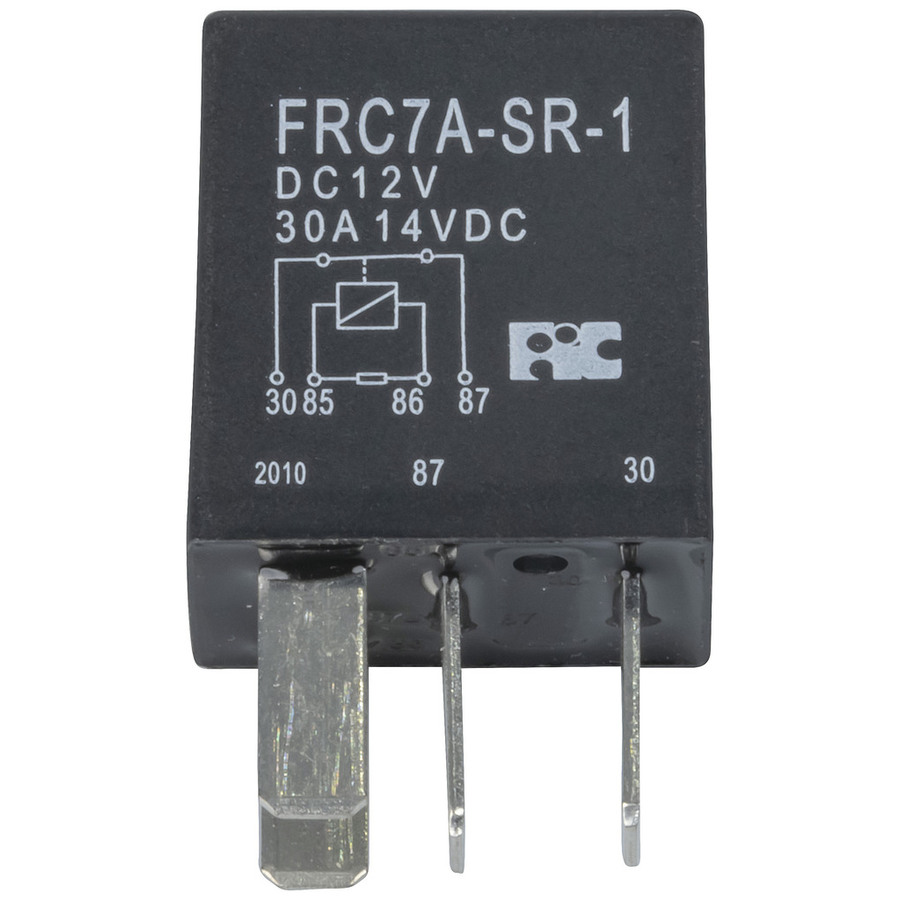

Extremely compact with a footprint of only 22 x 15mm, but maintaining high contact currents for automotive applications. Ideal for air horns, fog lamps or driving light installations. 12VDC 30A Single Pole Single Throw relay.


    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 30A
    Device Type
    		 Horn Relay
    DC Contact Voltage
    		 12V
    Contact format
    		 SPST

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 30A

    Product Dimensions

    Length
    		 22mm
    Width
    		 15mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 2.1cm
    Packaged Weight
    		 0.018kg
    Packaged Volume
    		 0.01323l
    Packaged Height
    		 1.8cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4045-dataSheetMain.pdf
