CAT. No. SY4061

12V DPDT Mini PCB Relay
product image thumb
product image thumb

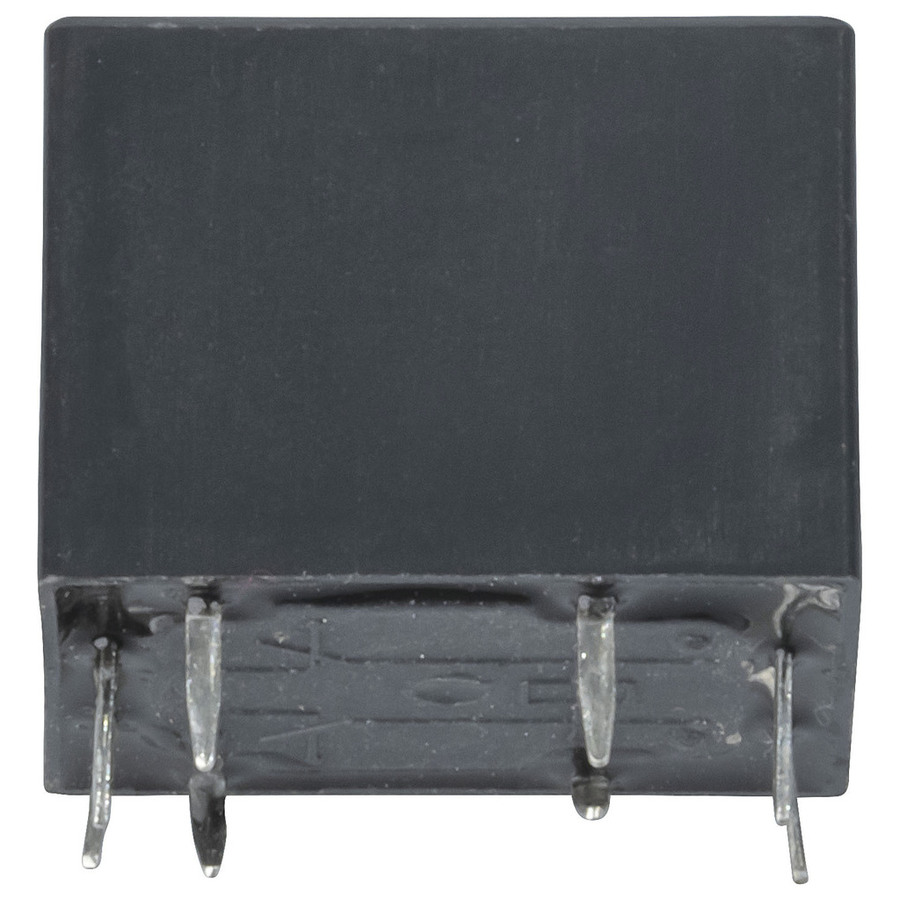

12V DPDT Mini PCB Relay

$7.95
- Rated voltage - 12V DC - Coil current - 30mA- Coil resistance - 400- Contact rating - 1 Amp- Size - 21x16x15(H)mm...

Please call (02) 4782 6943

Description

Low profile PCB relay.


    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 1A
    Coil Current
    		 30mA
    DC Contact Voltage
    		 12V
    Contact format
    		 DPDT
    Coil Resistance
    		 400?

    Power Source Details

    DC Voltage
    		 12V
    AC Current Draw
    		 30A
    DC Current Draw
    		 1A
    AC Voltage
    		 277V

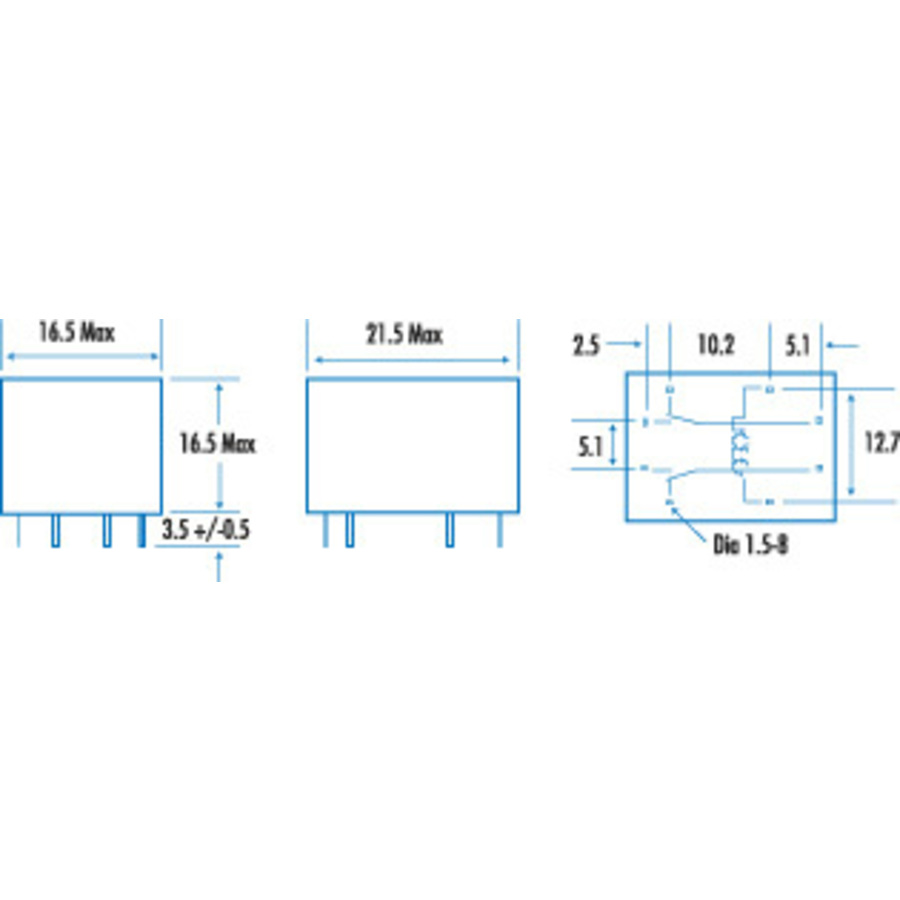

    Product Dimensions

    Height
    		 15mm
    Width
    		 21mm
    Depth
    		 16mm

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0kg
    Packaged Volume
    		 0.0066l
    Packaged Height
    		 2.2cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4061-dataSheetMain.pdf
