12V DPDT Power Relay - 10A 240VAC24VDC Contacts

$12.95
12VDC relay suitable for DIN cradle mounting High current rating suitable for large loads

Please call (02) 4782 6943

Description

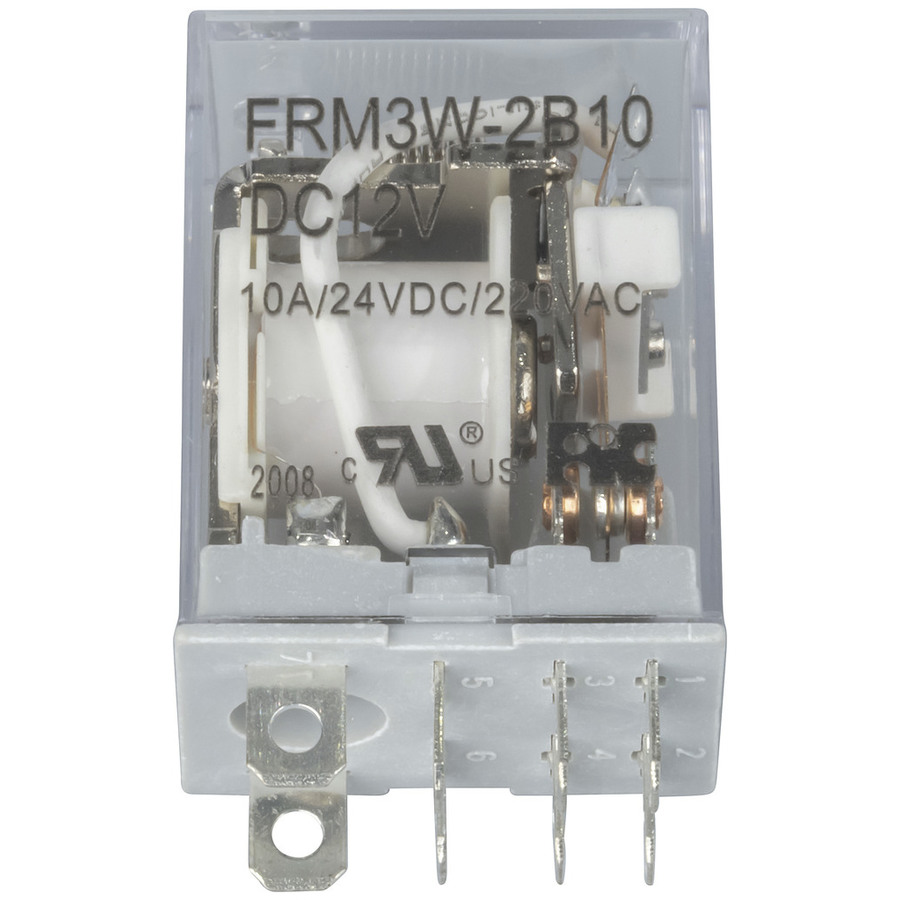

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.

    Specifications

    Relay

    Operation Time
    		 25ms
    Input
    		 DC
    DC Switching Current (Opening)
    		 10A
    Coil Current
    		 75mA
    AC Switching Current (Opening)
    		 10A
    Nominal Voltage
    		 12V
    Device Type
    		 Cradle Mounting Relay
    DC Contact Voltage
    		 24V
    Contact format
    		 DPDT
    Coil Resistance
    		 160?
    AC Contact Voltage
    		 240V

    Power Source Details

    DC Voltage
    		 12V
    Item connection
    		 Spade Terminals
    DC Current Draw
    		 75mA

    Product Mounting

    Mounting Method
    		 Cradle/Socket Mount

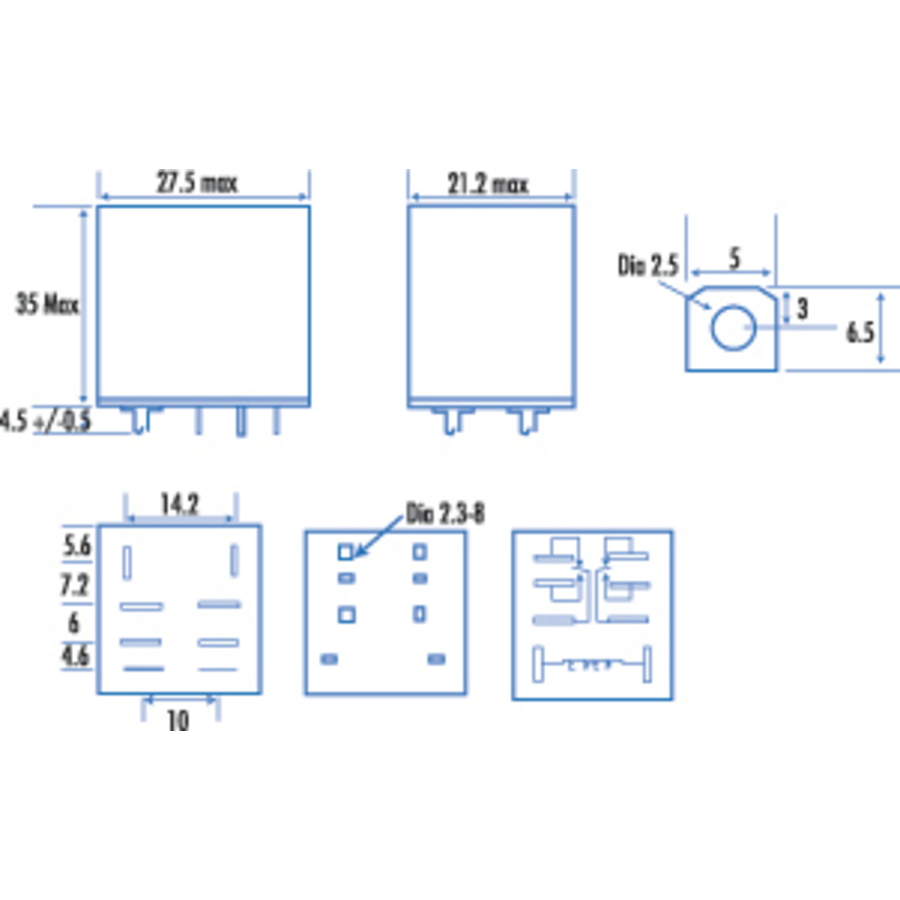

    Product Dimensions

    Length
    		 20mm
    Height
    		 35mm
    Width
    		 27mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.035kg
    Packaged Volume
    		 0.0225l
    Packaged Height
    		 4.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4065-dataSheetMain.pdf
