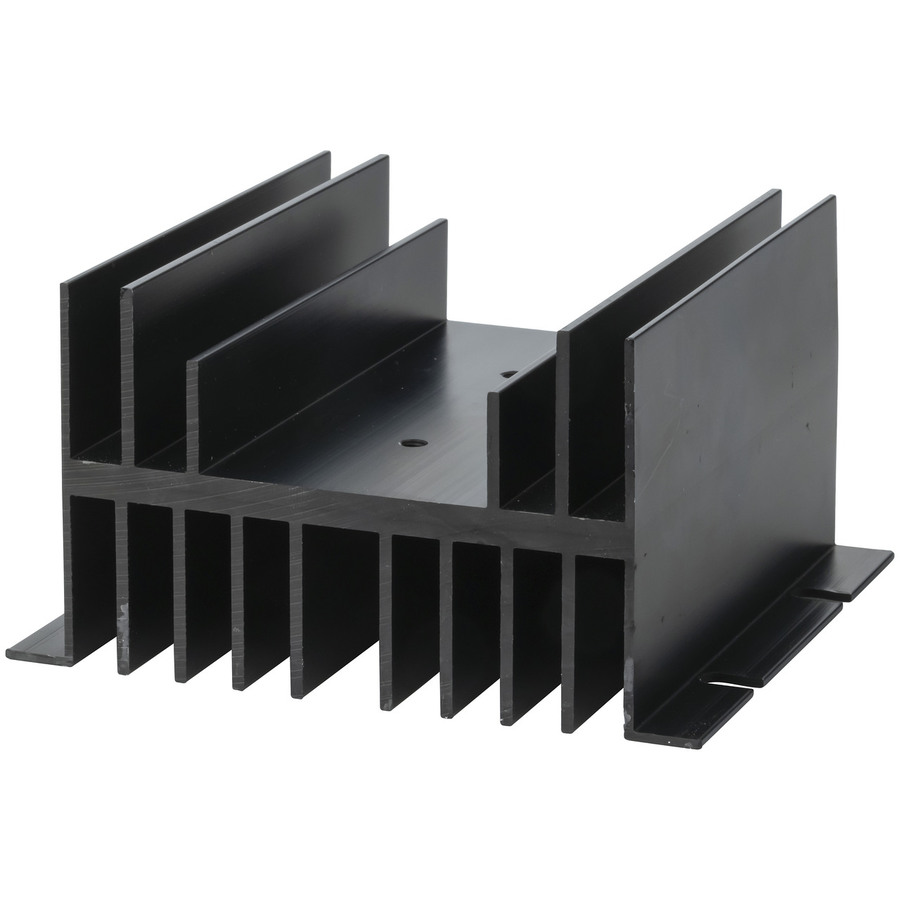

Heatsink to suit SY4084SY4086
Heatsink to suit SY4084SY4086

CAT. No. SY4085

Heatsink to suit SY4084SY4086
product image thumb

Heatsink to suit SY4084SY4086

$25.95
Using this heat sink with the SY-4084/SY-4086 solid state relays allows you to reach the full current capacity.

Please call (02) 4782 6943

Description

Using this heat sink with the SY-4084/SY-4086 solid state relays allows you to reach the full current capacity. Solid state relays become quite hot when used in a high current application, so suitable heat sinking is essential. Datasheet available on our website.

(Relay not included)

    Specifications

    Product Dimensions

    Length
    		 110mm
    Height
    		 64mm
    Width
    		 118mm

    Packaged Dimensions

    Packaged Length
    		 12.5cm
    Packaged Width
    		 11.5cm
    Packaged Weight
    		 0.321kg
    Packaged Volume
    		 1.00625l
    Packaged Height
    		 7cm

    Heatsinks

    Heatsink Thermal Resistance
    		 1.1°C/W
    Heatsink Material
    		 Aluminimum
    Heatsink Fins
    		 12pc
    Heatsink Mounting Method
    		 Screw Down

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4085-dataSheetMain.pdf
