CAT. No. SZ1924

4 Way Illuminated Blue Rocker Switch Panel
product image thumb
product image thumb

4 Way Illuminated Blue Rocker Switch Panel

$71.95
Straight forward installation and wiring, with just four connections!

Please call (02) 4782 6943

Description

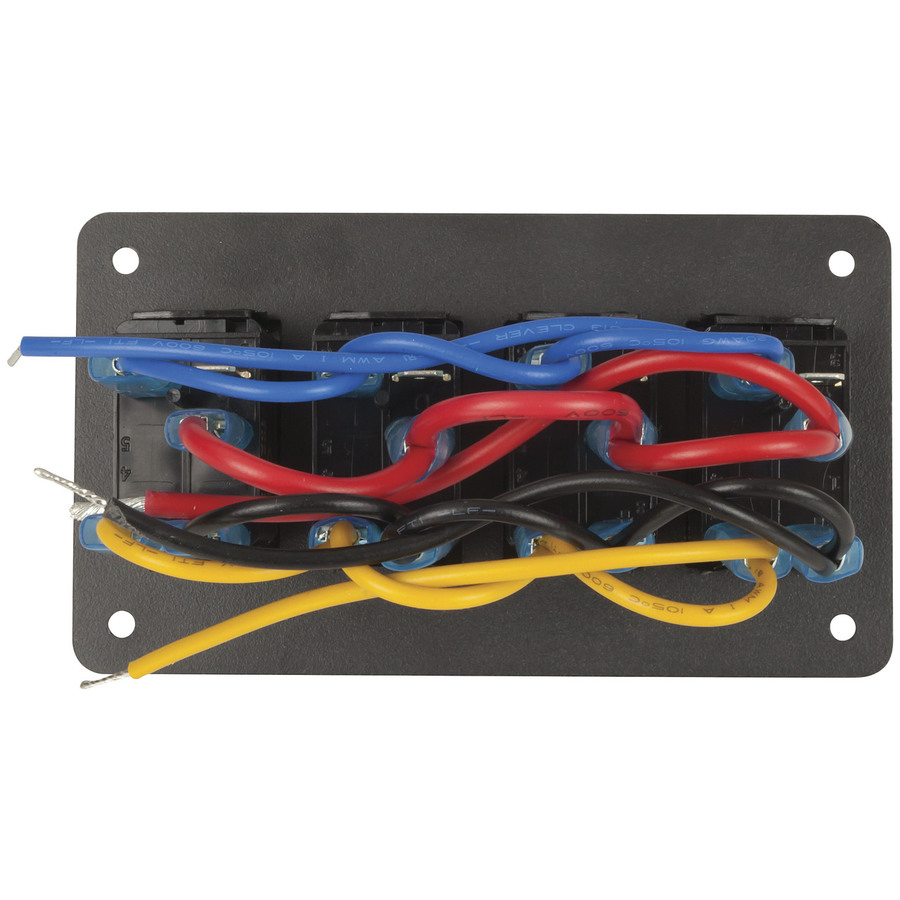

Straight forward installation and wiring, with just four connections - everything else is pre-wired! Then all you need to do is connect your various peripheral devices. Switches are rated at 20A for a 12V system (10A for 24V) up to a maximum 45A per panel. The LED illumination is powered separately, so you can run it through a switch or dimmer too.

Features:
- Easy installation
- High quality switches
- Blue LED illumination

Specifications:
Switch Rating: 12VDC @ 20A, 24VDC @ 10A
Panel Rating: 45A

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker

    Product Mounting

    Square Mount Hole Width
    		 42mm
    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Panel
    Square Mount Hole Height
    		 105mm

    Product Dimensions

    Height
    		 124mm
    Width
    		 70mm
    Weight
    		 195g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 18.9cm
    Packaged Width
    		 11.7cm
    Packaged Weight
    		 0.23kg
    Packaged Volume
    		 2.189187l
    Packaged Height
    		 9.9cm

    Downloads

    SZ1924-manualMain.pdf
