150A Insulated Bus Bar
150A Insulated Bus Bar
150A Insulated Bus Bar

CAT. No. SZ2012

150A Insulated Bus Bar
product image thumb
product image thumb

150A Insulated Bus Bar

$27.95
This quality bus bar features a raised insulating base that isolates the bus bar from earthed or other live chassis. It features 2 x 5mm bolted termin...

Please call (02) 4782 6943

Description

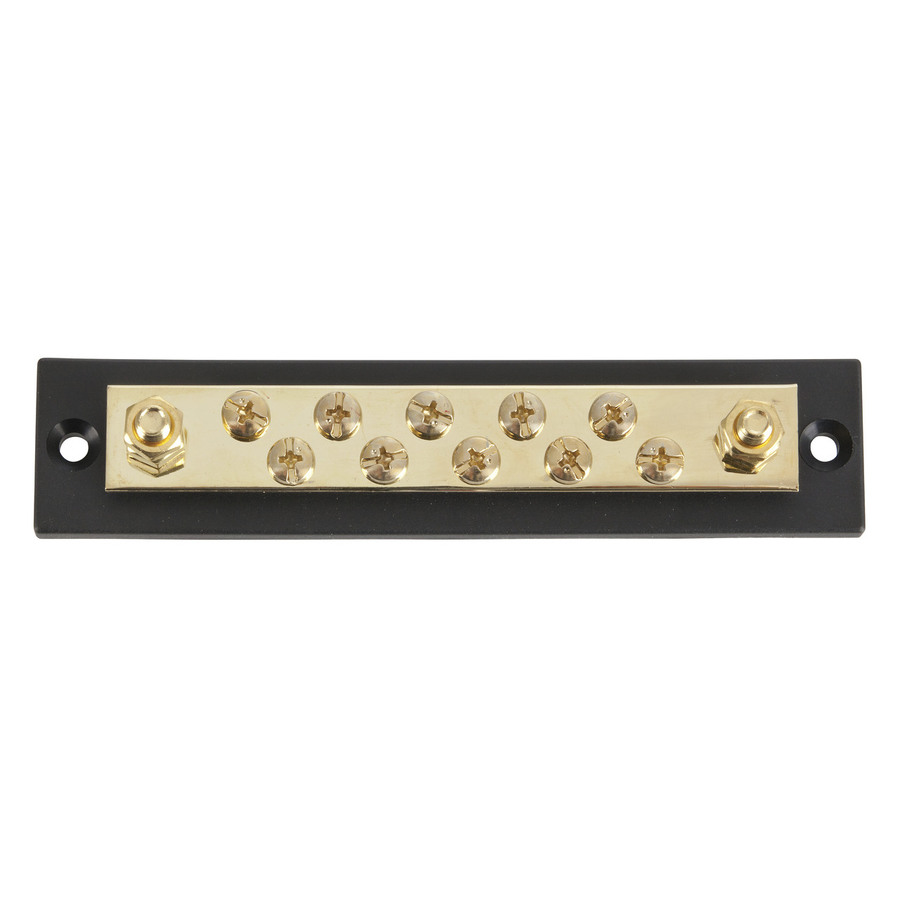

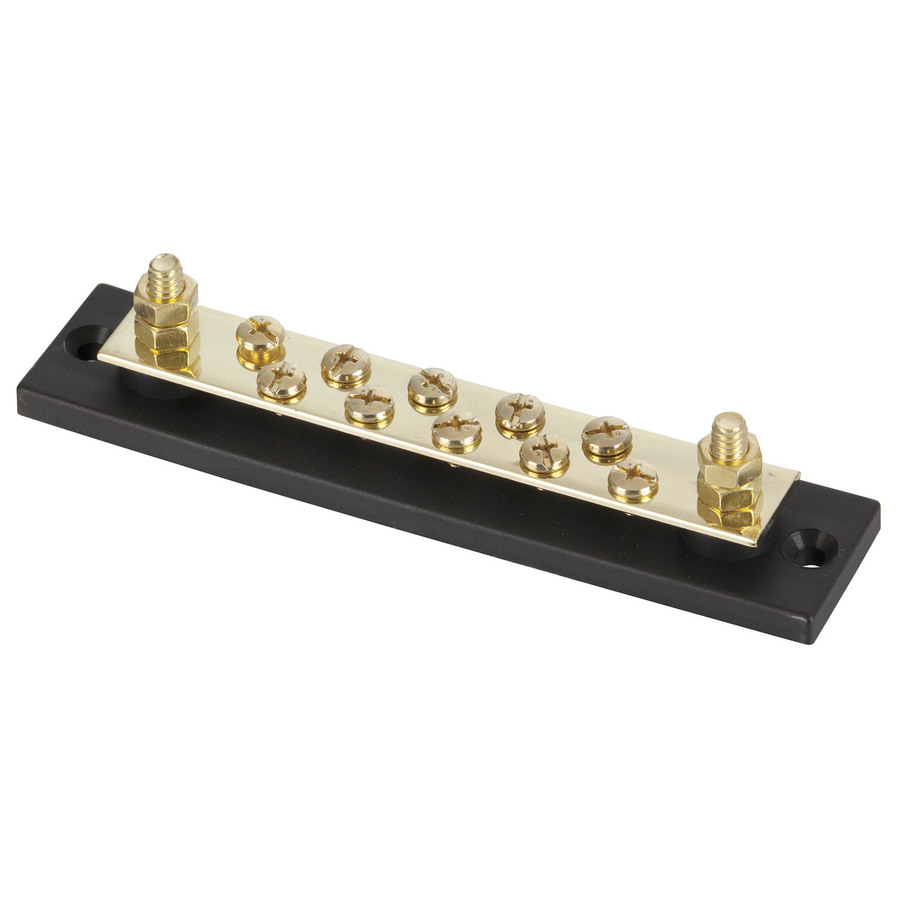

This quality bus bar features a raised insulating base that isolates the bus bar from earthed or other live chassis. It features 2 x 5mm bolted terminals for connecting main power feeds, and 10 screw terminals for connecting lower current feeds of up to 10A each. Total current capacity is 150A, and is suitable for 12-32V wiring. 2 countersunk screw holes for 5mm metric fasteners.



    Specifications

    Product Dimensions

    Length
    		 145mm
    Height
    		 40mm
    Width
    		 30mm

    Packaged Dimensions

    Packaged Length
    		 14.5cm
    Packaged Width
    		 3.2cm
    Packaged Weight
    		 0.114kg
    Packaged Volume
    		 0.1392l
    Packaged Height
    		 3cm

    Vehicle or Vessel Powered

    Current Draw
    		 0A-150A
    Required Voltage
    		 12V-32V
    Vehicle Connection
    		 Hard Wired
    Item Connection
    		 Screw Terminals

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Chassis

    Product Availability

    Availability
    		 Stocked item
