12 Way Fuse Block with Bus Bar
12 Way Fuse Block with Bus Bar
12 Way Fuse Block with Bus Bar

CAT. No. SZ2032

12 Way Fuse Block with Bus Bar
product image thumb
product image thumb

12 Way Fuse Block with Bus Bar

$49.95

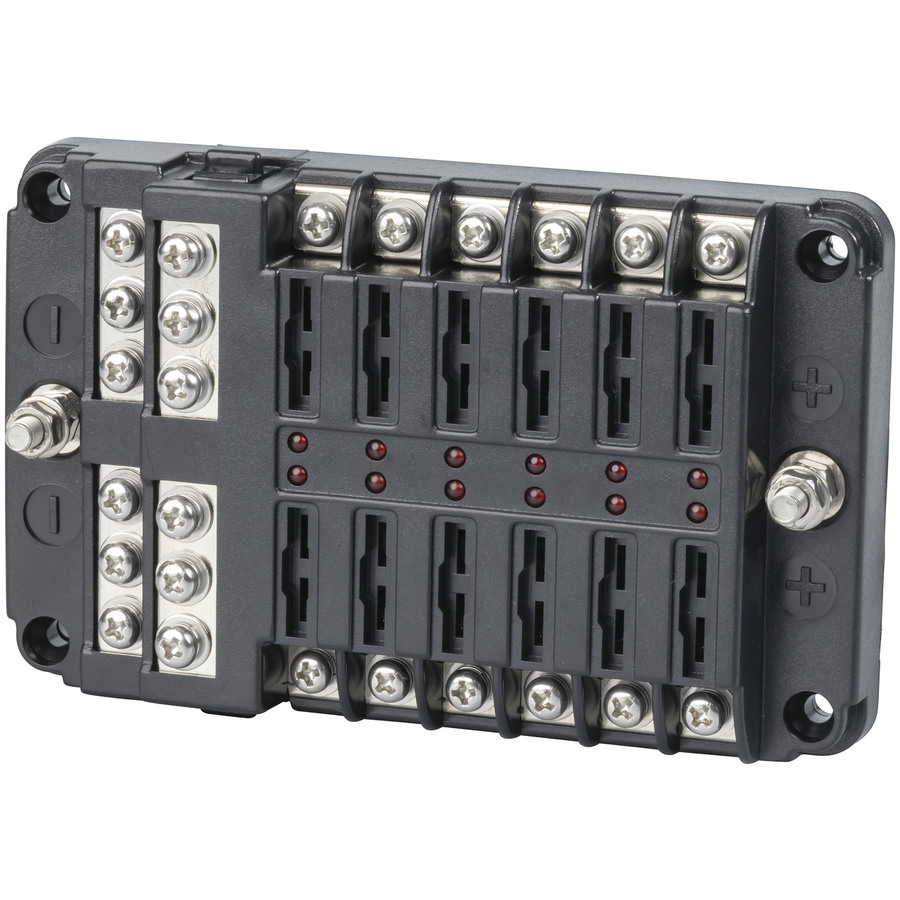

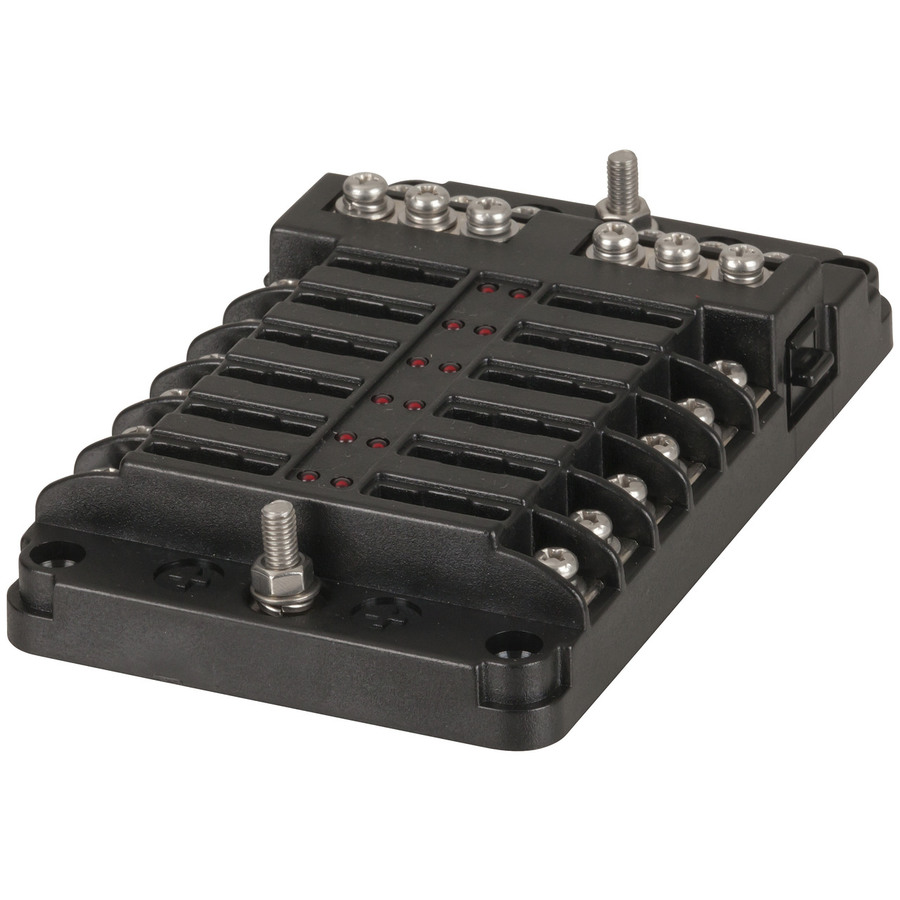

This versatile fuse block provides 12 way fused power distribution from your positive terminal and fits up to 12 standard blade fuses rated up to 30 amps each. The bus bar is distribution for the negative wires. Comes with cover (not pictured).

Please call (02) 4782 6943

Description

This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar

Specifications:
Main Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Wire Size: #4-6 AWG
Single Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel

    Specifications

    Product Dimensions

    Height
    		 138mm
    Width
    		 85mm
    Depth
    		 37mm
    Weight
    		 250g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 21cm
    Packaged Width
    		 12.2cm
    Packaged Weight
    		 0.292kg
    Packaged Volume
    		 1.1529l
    Packaged Height
    		 4.5cm
