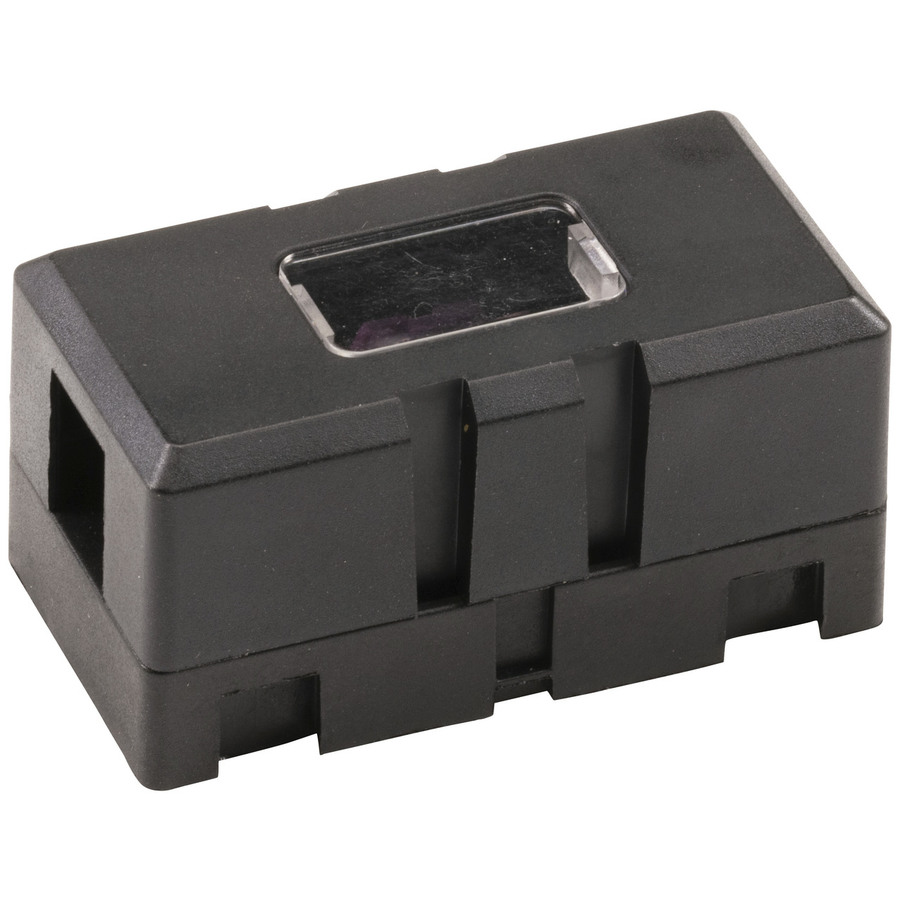

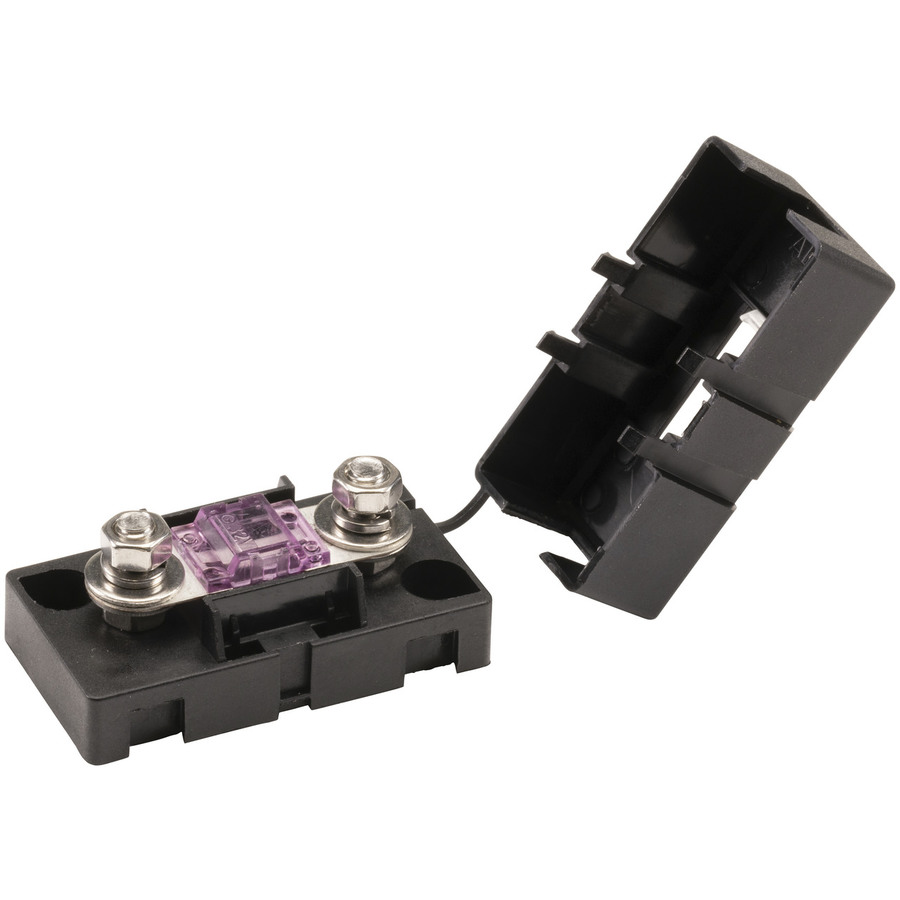

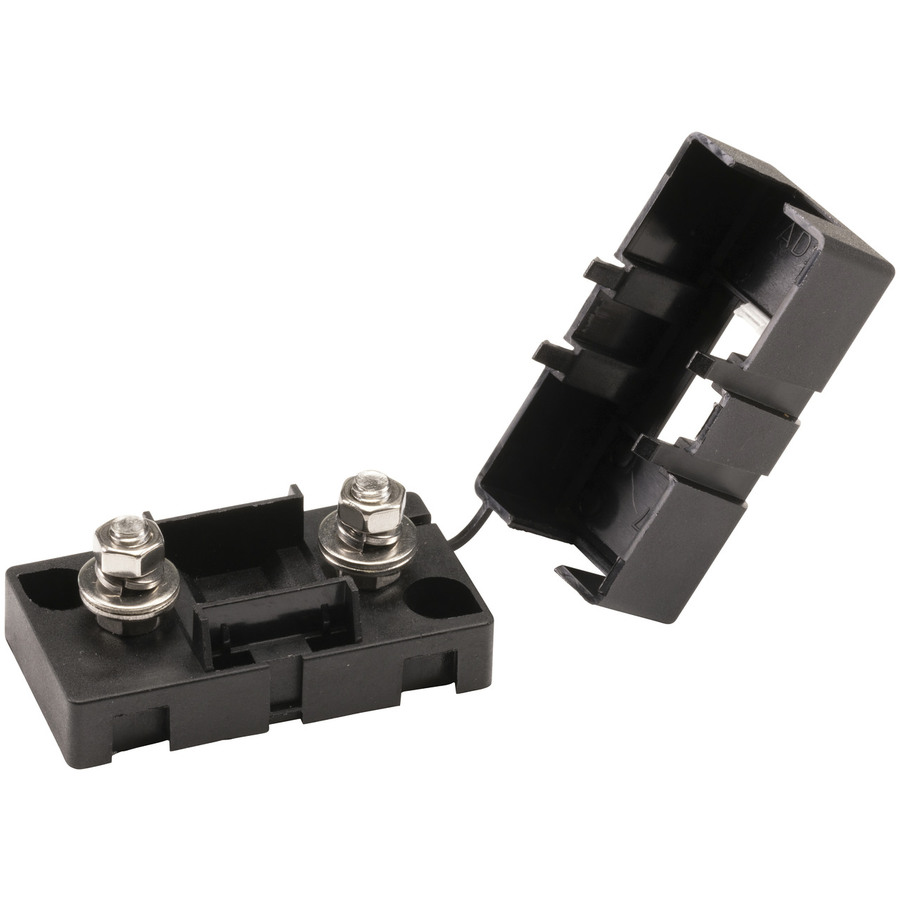

200A MIDI Inline Bolt-Down Fuse Holder
200A MIDI Inline Bolt-Down Fuse Holder
200A MIDI Inline Bolt-Down Fuse Holder
200A MIDI Inline Bolt-Down Fuse Holder

CAT. No. SZ2079

200A MIDI Inline Bolt-Down Fuse Holder
product image thumb
product image thumb
product image thumb

200A MIDI Inline Bolt-Down Fuse Holder

$22.95
An extra heavy duty low AC or DC voltage in-line fuse housing to Suit MIDI or AMI style fuses rated up to 200 amps.

Please call (02) 4782 6943

Description

Midi fuses are a smaller version of the ANL fuse whilst still catering for high current loads. Suitable for all applications, ranging from portable fridges right up to dual battery systems with the appropriate rated fuse. Rated up to 32V AC / DC.

Terminal post size: 5mm
Max current: 200A


    Specifications

    Fuse Holder

    Fuse Block Total Current
    		 0A-200A
    Fuse Type
    		 AML Wafer

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 10.1cm
    Packaged Width
    		 6.8cm
    Packaged Weight
    		 0.028kg
    Packaged Volume
    		 0.199172l
    Packaged Height
    		 2.9cm

    Product Dimensions

    Length
    		 52mm
    Height
    		 25.5mm
    Width
    		 28mm
    Depth
    		 30mm

N/A
