6 Way Blade Fuse Block - Screw Terminal Connection

$30.95
This versatile fuse block provides 6 way fused power distribution from your positive terminal and fits up to 6 standard blade fuses rated up to 30 amps each. Comes with cover, labelling system and blown fuse indicator.

Please call (02) 4782 6943

Description

1 Year Warranty

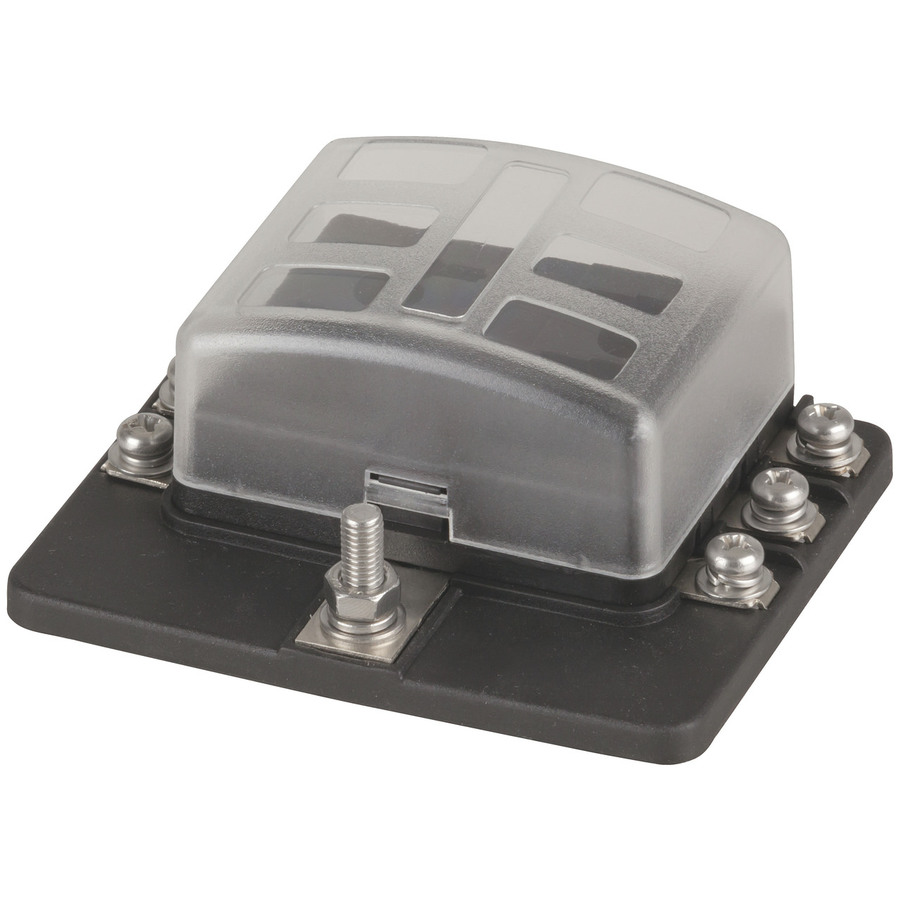

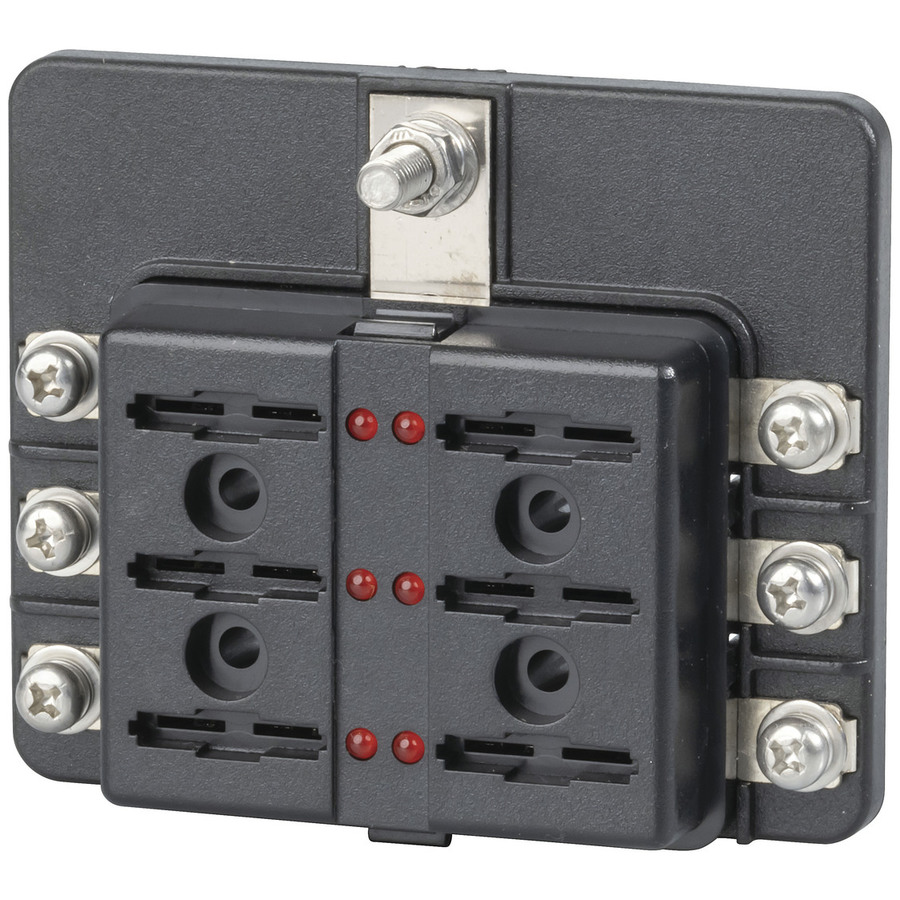

A convenient 6-way fuse block with integrated “fuse blown” indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Includes quality bolt-down output connections for eye-terminals connection. Suitable for use in 12-24V systems, 30A max per fuse channel. Input cable up to 4-gauge. Uses standard automotive blade fuses, and includes a handy sheet of common labels, to make identification of connections even easier.

Features:
Input Terminal Rating: 32VDC @ 100A Max.
Input Wire Size: 4-6 AWG
Output Terminal Rating: 30A Max. per Circuit
Output Wire Size: 12-16 AWG
Fuse: Automotive Blade up to 30A

    Specifications

    Product Dimensions

    Height
    		 37mm
    Width
    		 85mm
    Depth
    		 70mm
    Weight
    		 78g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15.2cm
    Packaged Width
    		 12.2cm
    Packaged Weight
    		 0.128kg
    Packaged Volume
    		 0.778848l
    Packaged Height
    		 4.2cm
    Warranty: 12 Months
