Audio Amplifier Module with Speaker for Arduino

$11.5
Add audio effects or music to your next project with this sleek two in one module that gives you a speaker and an amplifier to boost sound. Easy 3 pin header for connection to microcontroller.

Please call (02) 4782 6943

Description

Arduino® Compatible

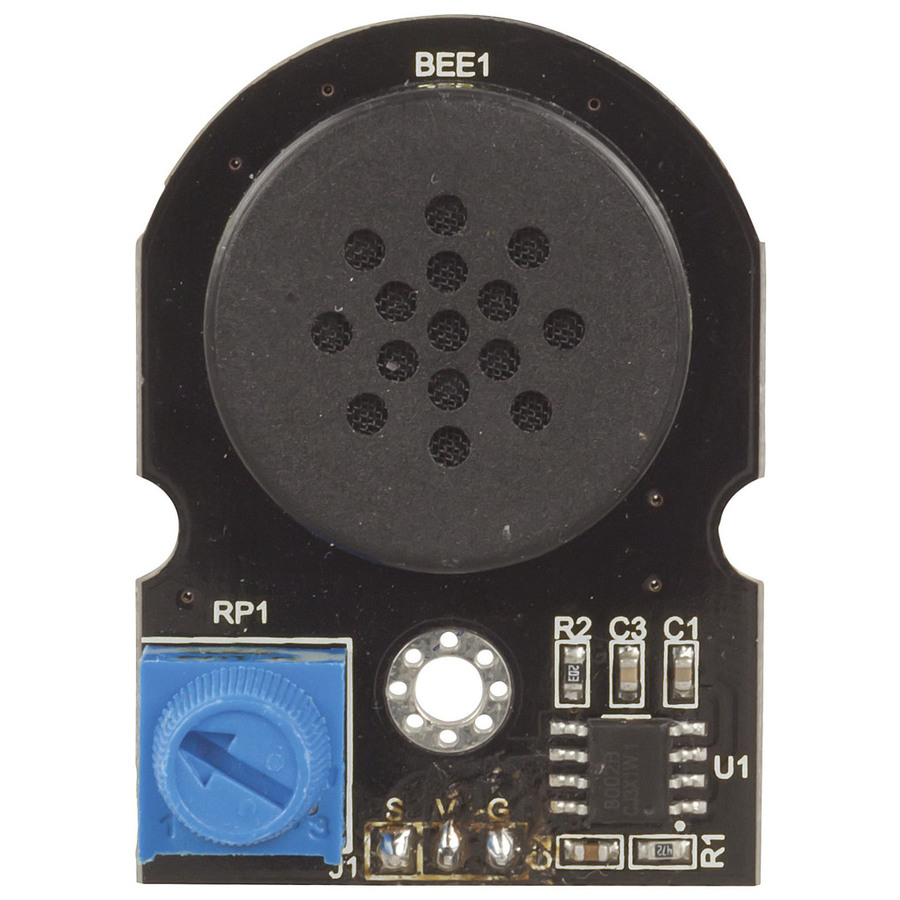

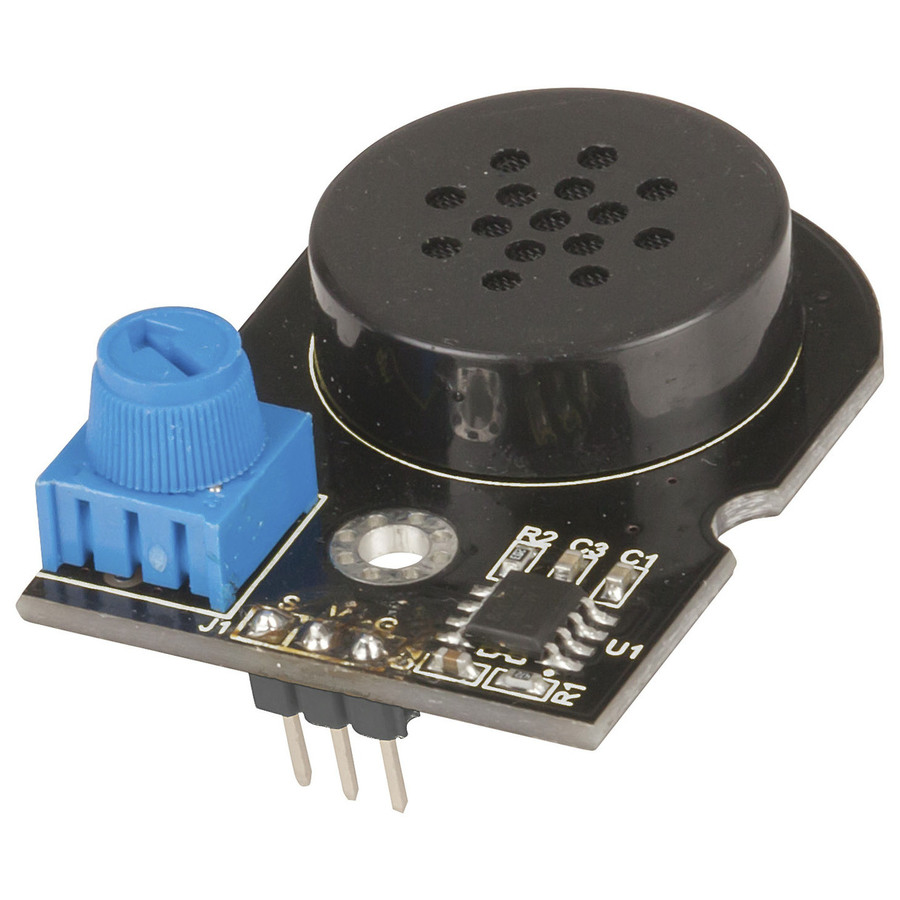

An easy way to add audio effects or music to your next project. The compact board measures just 47mmm long and features a 23mm diameter speaker, 2W amplifier, and a trimpot for volume control. Powered from 5V.

Note: Before use, please adjust the sound volume to minimum to avoid damaging the speaker.


    Specifications

    DC Voltage Rating

    DC Voltage
    		 5V

    DC Current Rating

    DC current rating
    		 500mA

    Audio Amplifier

    Number of Channels
    		 1ch
    Volume Control
    Amplifier Type
    		 IC Module
    Power Per Channel into Low Impedence (WRMS)
    		 2W

    Speaker Specifications

    Nominal Size
    		 23mm
    RMS Power Rating
    		 0.15W
    Frequency Response
    		 800Hz-4000Hz
    Speaker Type
    		 Hobby Speaker
    Sensitivity (SPL@1W
    1m)

    Product Dimensions

    Length
    		 47mm
    Height
    		 13mm
    Width
    		 30mm
    Weight
    		 8.4g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 12.5cm
    Packaged Width
    		 7.4cm
    Packaged Weight
    		 0.012kg
    Packaged Volume
    		 0.1295l
    Packaged Height
    		 1.4cm
