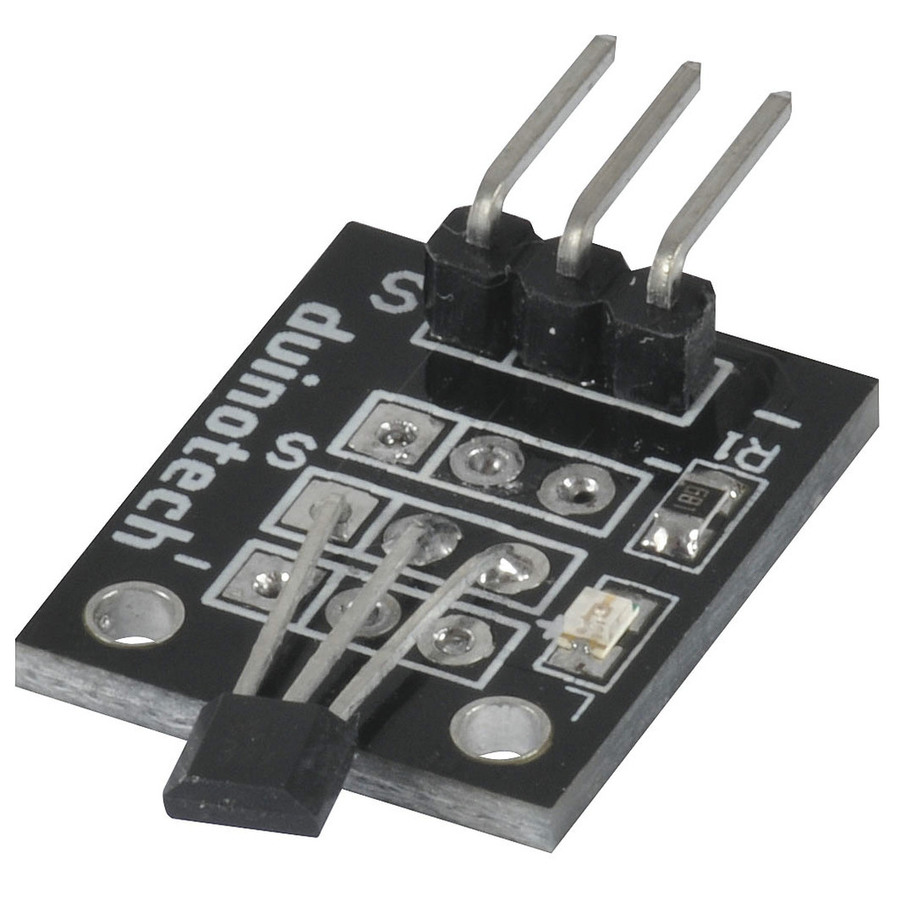

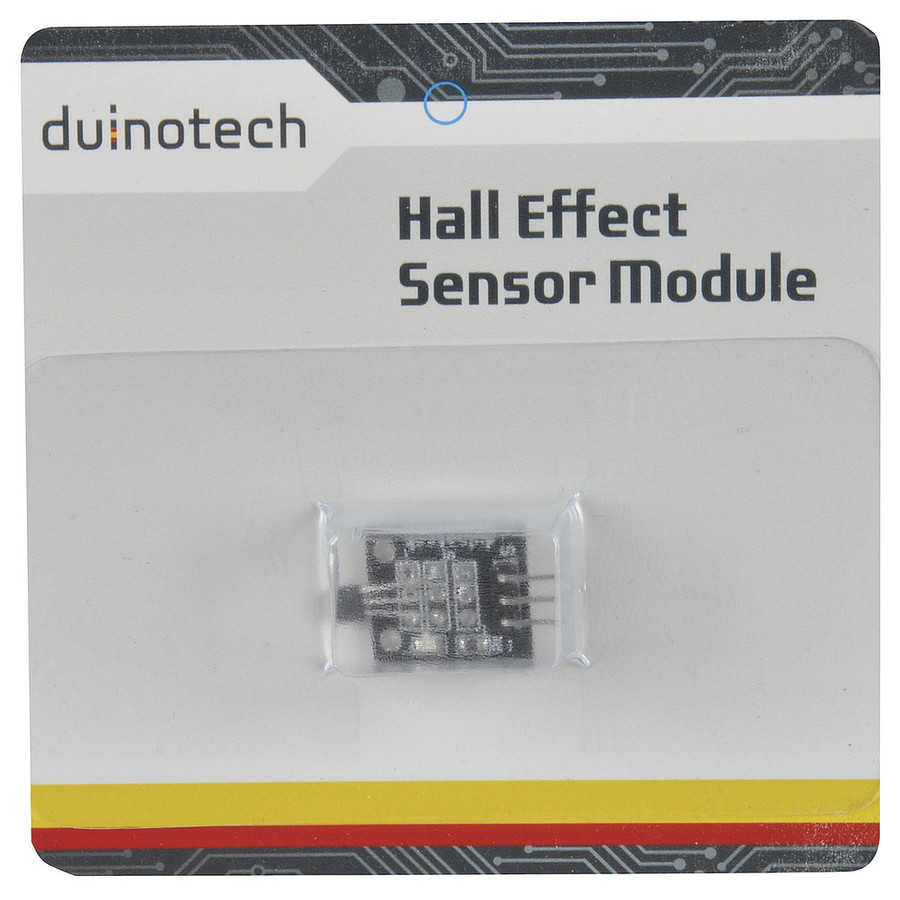

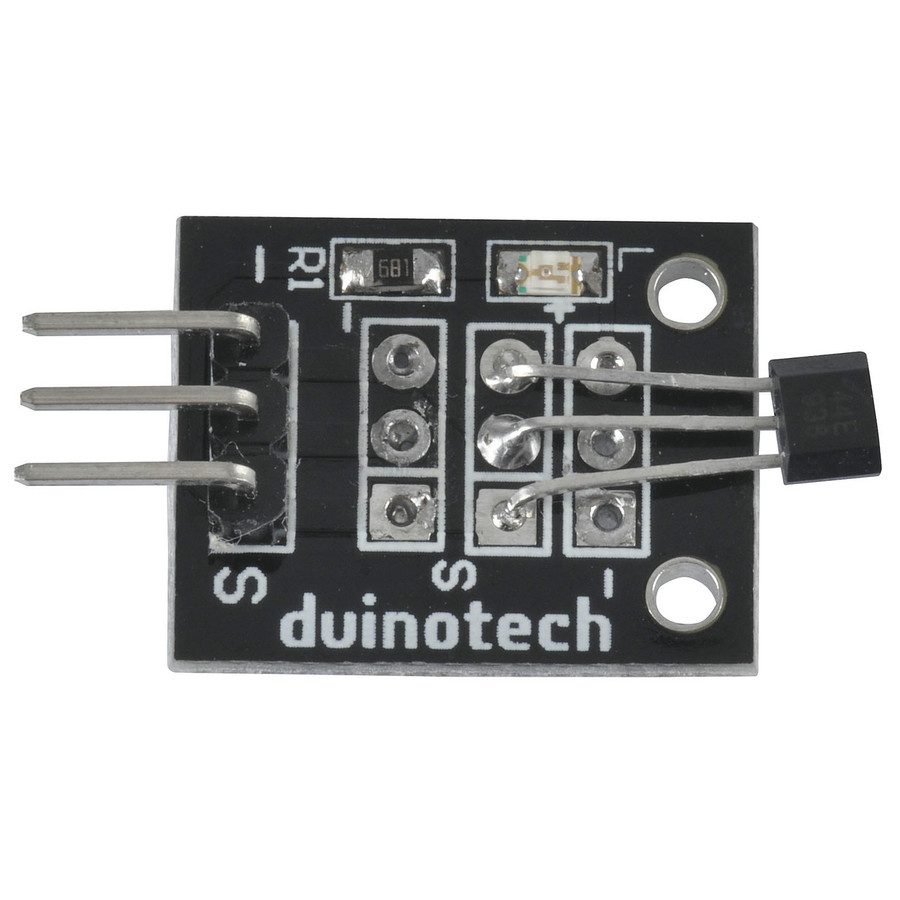

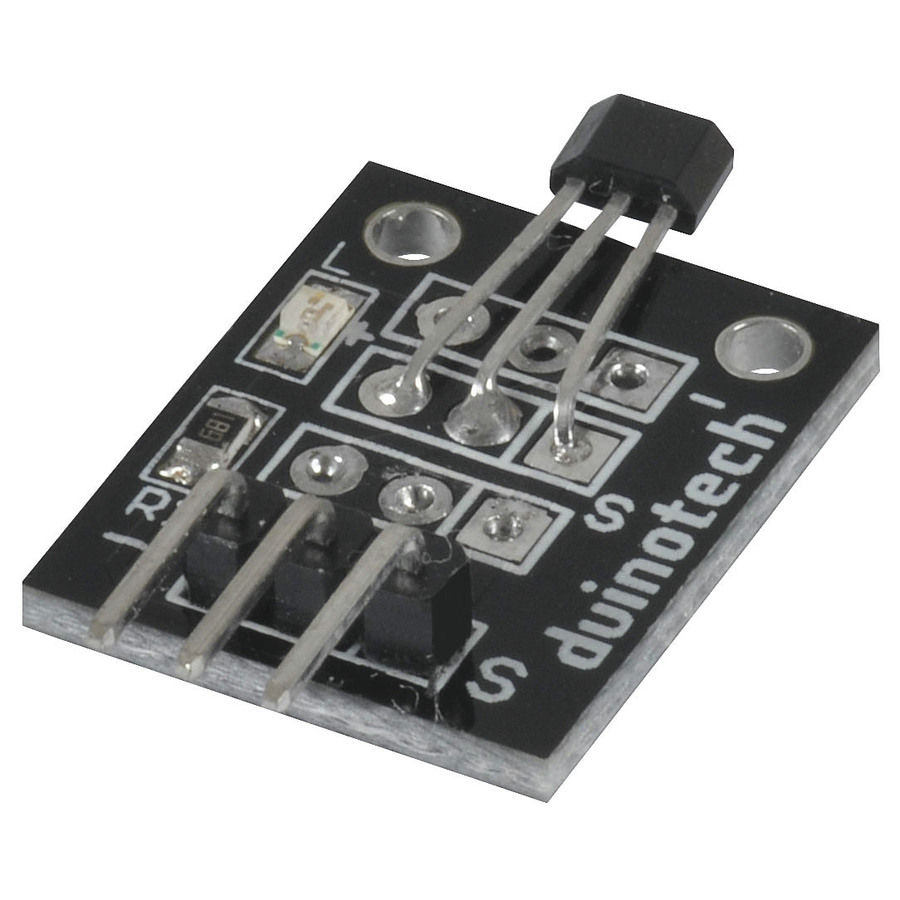

Arduino Compatible Hall Effect Sensor Module

$5.75
Sense magnetic presence, rotating wheels and magnets, door sensors and any other magnets near this module.

Please call (02) 4782 6943

Description

Arduino® Compatible

Sense magnetic presence, rotating wheels and magnets, door sensors and any other magnets near this device.

•    Output turns on at 30Gauss (3mT) and off at 10Gauss (1mT)
•    Operating Voltage: 4.5 – 28VDC
•    Schmitt-Trigger output.
•    Dimensions: 20(W) x 15(L) x 3(H)mm

    Specifications

    Product Dimensions

    Length
    		 15mm
    Height
    		 3mm
    Width
    		 20mm

    Packaged Dimensions

    Packaged Length
    		 9.9cm
    Packaged Width
    		 9.9cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.117612l
    Packaged Height
    		 1.2cm

    Arduino Modules

    Sensor Outputs
    		 digital output
    Required Supply Voltage
    		 4.5V-28V

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Articles

    XC4434-dataSheetMain.pdf
