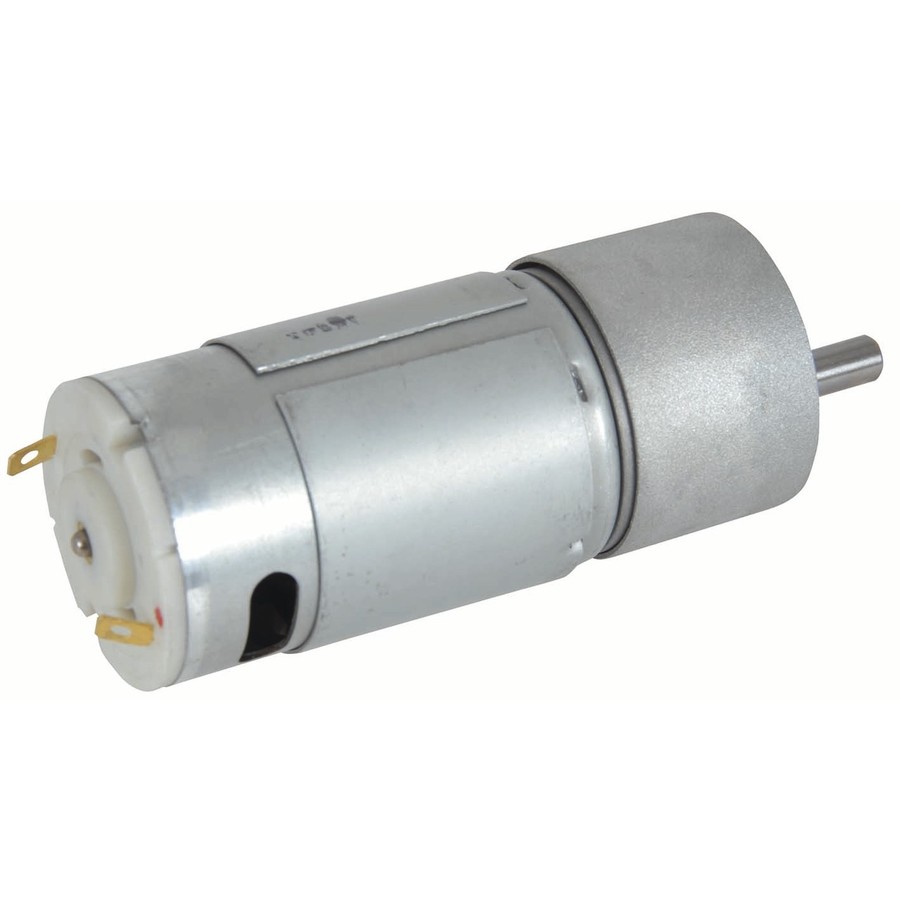

55RPM 12VDC Reversible Gearhead Motor
55RPM 12VDC Reversible Gearhead Motor

CAT. No. YG2738

55RPM 12VDC Reversible Gearhead Motor
product image thumb

55RPM 12VDC Reversible Gearhead Motor

$52.95
As part of our new mechatronics range, we are proud to introduce 3 combined miniature motor/gearbox sets. The motors work equally well in forward or r...

Please call (02) 4782 6943

Description

High power reversible DC motor with gearbox head for heavy duty applications. Suitable for larger mechatronics projects or as a replacement motor for simple machines. Capable of producing a massive 50kg/cm torque at 55RPM at load and upto 160RPM at No Load.


    Specifications

    Motor

    Max efficiency
    		 44%
    No load RPM
    		 160RPM
    Max. efficiency current
    		 3.2A
    Full load torque
    		 75kg.cm
    Full load current
    		 18A
    Max efficiency RPM
    		 134RPM
    Shaft diameter
    		 6mm
    Motor Type
    		 Gearhead
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 16.3W
    Shaft length
    		 12mm
    Maximum efficiency torque
    		 11.84kg.cm
    No load current
    		 450mA

    Power Source Details

    DC Voltage
    		 6V-12V
    Item connection
    		 Solder Tags

    Gearbox

    Type
    		 Planetary/Orbital
    Adjustable Gear
    Gear Ratio
    		 50:1
    Pre-assembled Gear

    Packaged Dimensions

    Packaged Length
    		 11cm
    Packaged Width
    		 4cm
    Packaged Weight
    		 0.326kg
    Packaged Volume
    		 0.176l
    Packaged Height
    		 4cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YG2738-dataSheetMain.pdf
