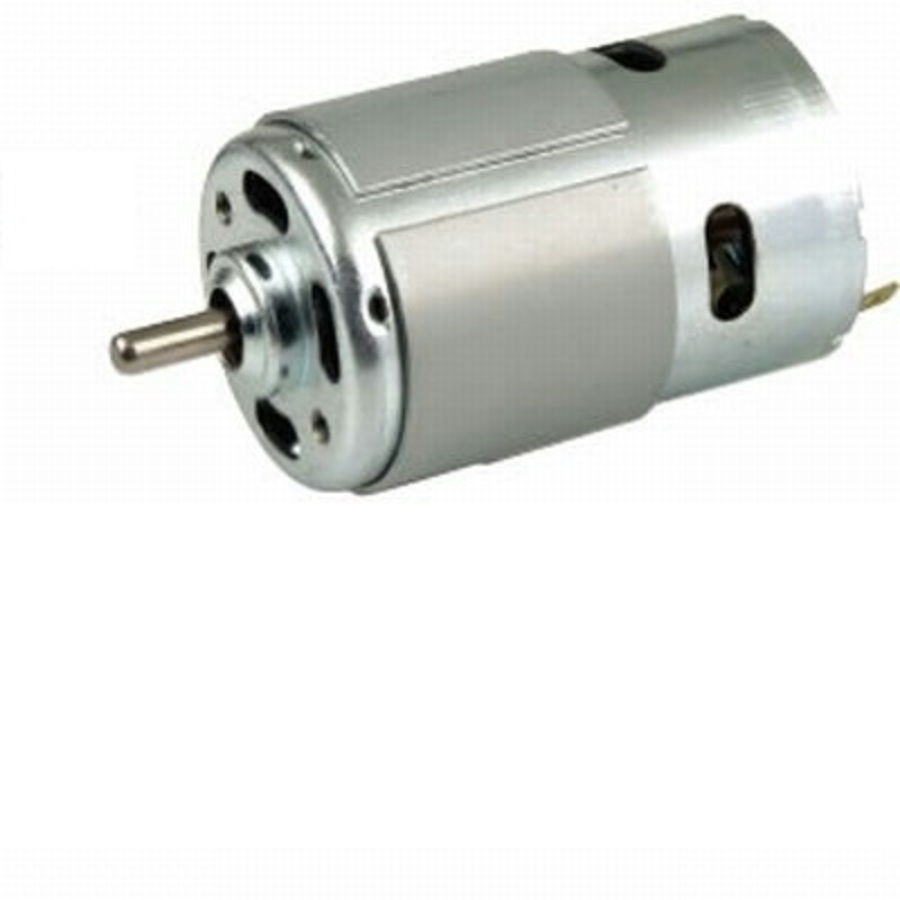

Standard (High Power) D.C. Motors 11000 RPM
Standard (High Power) D.C. Motors 11000 RPM

CAT. No. YM2770

Standard (High Power) D.C. Motors 11000 RPM
product image thumb

Standard (High Power) D.C. Motors 11000 RPM

$16.95
Astonishing speed and power from these compact ferrite magnet types.All units feature hard steel drive shafts, long life design and are built in an IS...

Please call (02) 4782 6943

Description

Astonishing speed and power from these compact ferrite magnet types.

All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

Operating Range: 6-12V

At Stall:
Torque:  2.6kg.cm
Current: 23.8A


    Specifications

    Motor

    Max efficiency
    		 79%
    No load RPM
    		 11800RPM
    Max. efficiency current
    		 2.9A
    Full load torque
    		 2700g.cm
    Full load current
    		 26A
    Max efficiency RPM
    		 9800RPM
    Shaft diameter
    		 3.17mm
    Motor Type
    		 High Power
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 34.5W
    Shaft length
    		 15mm
    Maximum efficiency torque
    		 350g.cm
    No load current
    		 0.8A

    Power Source Details

    DC Voltage
    		 6V-12V

    Product Dimensions

    Length
    		 71mm
    Diameter
    		 36mm

    Packaged Dimensions

    Packaged Length
    		 8cm
    Packaged Width
    		 3.5cm
    Packaged Weight
    		 0.219kg
    Packaged Volume
    		 0.098l
    Packaged Height
    		 3.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YM2770-dataSheetMain.pdf
