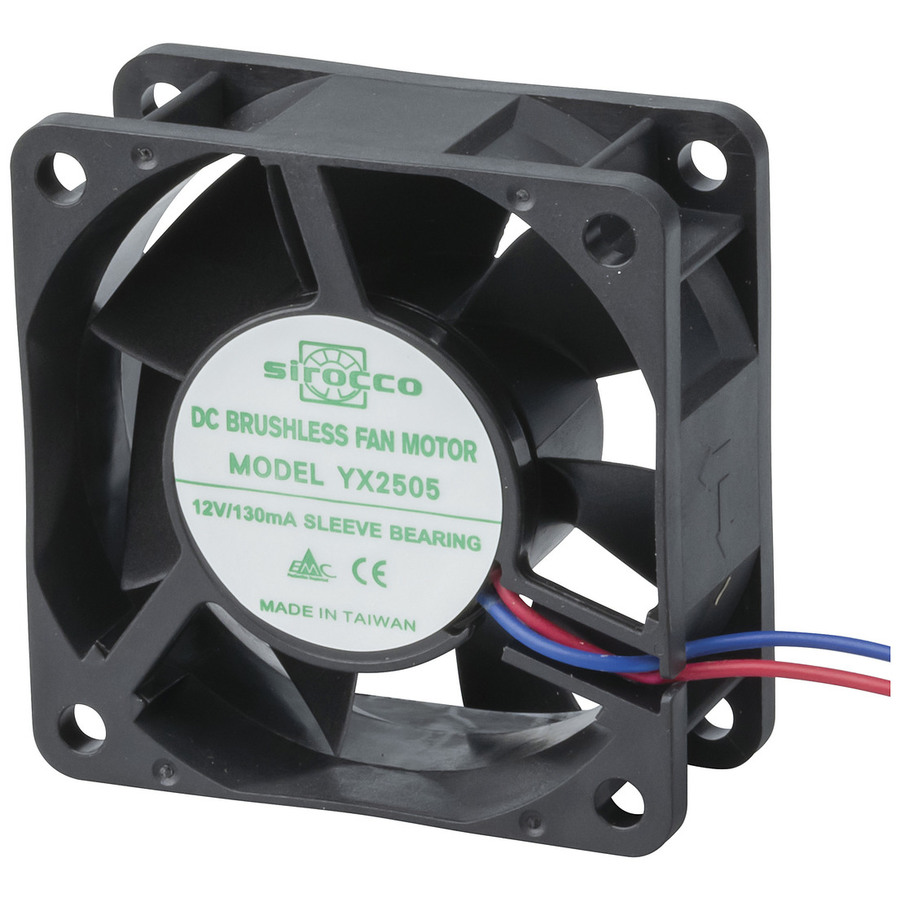

60mm 12VDC Cooling Fan
60mm 12VDC Cooling Fan

CAT. No. YX2505

60mm 12VDC Cooling Fan
product image thumb

60mm 12VDC Cooling Fan

$25.95
- Air Volume 0.57 (M3/min), 20 (CFM) - Bearing System Sleeve- Noise 30dB (A) - Speed 4,000 rpm- Input 1.6 watts - Current 130mA- Size 60 x 60 x 25.4mm...

Please call (02) 4782 6943

Description

Features:


- Input 1.6 watts
- Impeller Plastic, fibreglass filled
- Housing Plastic, fibreglass filled.

12V powered cooling fans to help ventilate enclosures or confined spaces in the caravan or RV.

TEK203 60mm
Speed: 4,000 RPM
Air volume: 0.57m3 per min
Dimensions: 60(L) x 60(W) x 25(D)mm

TEK212 120mm
Speed: 3,000 RPM
Air volume: 2.5m3 per min
Dimensions: 120(L) x 120(W) x 25(D)mm


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 60000hr
    fan bearing type
    		 Sleeve
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 30dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.57m³/min
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 20ft³/min
    Tachometer Output
    fan RPM
    		 4000RPM

    Mains powered

    Rated for AU Mains

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    DC Current Draw
    		 130mA

    Product Mounting

    Mounting Method
    		 Panel

    Product Dimensions

    Length
    		 60mm
    Width
    		 60mm
    Depth
    		 25.4mm

    Packaged Dimensions

    Packaged Length
    		 6.4cm
    Packaged Width
    		 6.8cm
    Packaged Weight
    		 0.08kg
    Packaged Volume
    		 0.13056l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YX2505-dataSheetMain.pdf
