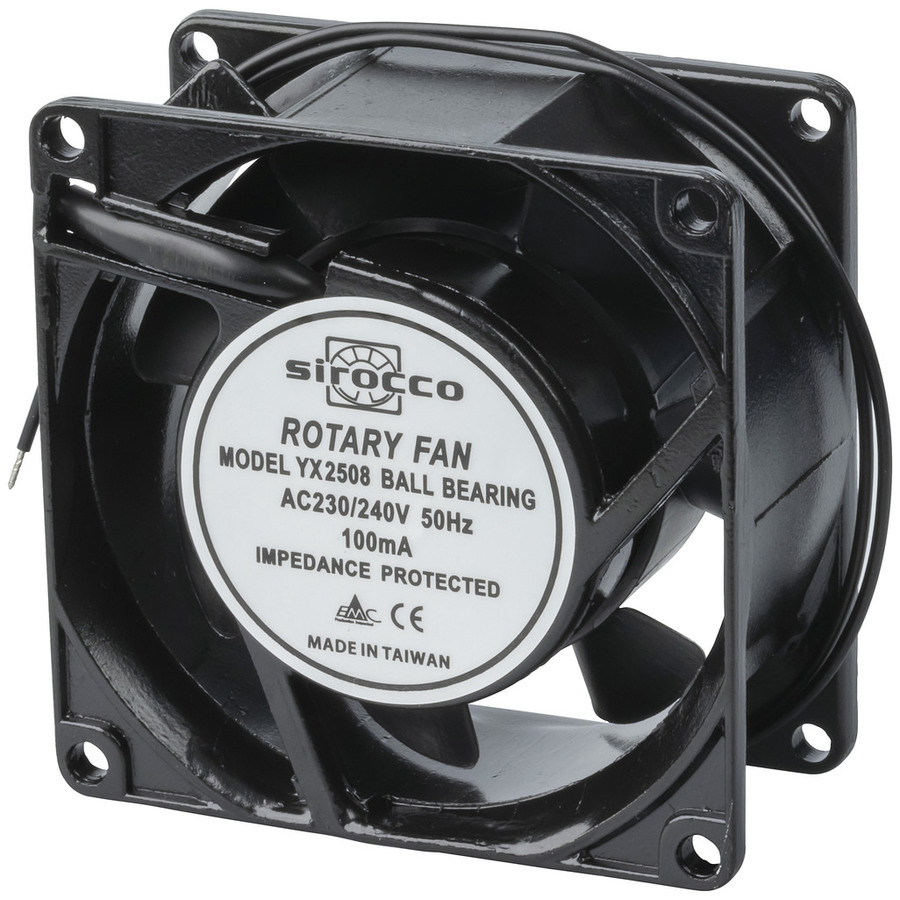

80mm 240V Ball Bearing Fan
80mm 240V Ball Bearing Fan

CAT. No. YX2508

80mm 240V Ball Bearing Fan
product image thumb

80mm 240V Ball Bearing Fan

$49.95
Life expectancy 100,000 hours @ 25°C- Air Volume 0.88 (m3/min), 30 (CFM) - Noise 35dB (A) - Speed 2,800 rpm- Input 12 watts - Current 100mA- Size 80 x...

Please call (02) 4782 6943

Description

240V Mains Power

Features:

- Input 12 watts
- Voltage 240 volts AC
- Impeller Plastic, fibreglass filled
- Housing Die cast aluminium, powdercoated black.


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan bearing type
    		 Ball
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 32dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.88m³/min
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 30ft³/min
    Tachometer Output
    fan RPM
    		 2800RPM

    Mains powered

    Max Input Power
    		 24W
    Mains Max Current
    		 100mA
    Auto-select mains voltage
    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V
    Rated for US Mains
    Rated for AU Mains

    Product Mounting

    Mounting Method
    		 Through Hole

    Product Dimensions

    Length
    		 80mm
    Width
    		 80mm
    Depth
    		 38mm

    Packaged Dimensions

    Packaged Length
    		 9cm
    Packaged Width
    		 9.2cm
    Packaged Weight
    		 0.305kg
    Packaged Volume
    		 0.3726l
    Packaged Height
    		 4.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YX2508-dataSheetMain.pdf
