80mm 12V DC Fan
80mm 12V DC Fan

CAT. No. YX2512

80mm 12V DC Fan
product image thumb

80mm 12V DC Fan

$25.95
- Air Volume 0.97 (M3/min), 34 (CFM) - Bearing System Sleeve- Noise 32dB (A) - Speed 3,000 rpm- Input 2.4 watts - Current 200mA- Size 80 x 80 x 25.4mm...

Please call (02) 4782 6943

Description

Features:


- Input 2.4 watts
- Impeller Plastic, fibreglass filled
- Housing Plastic, fibreglass filled.

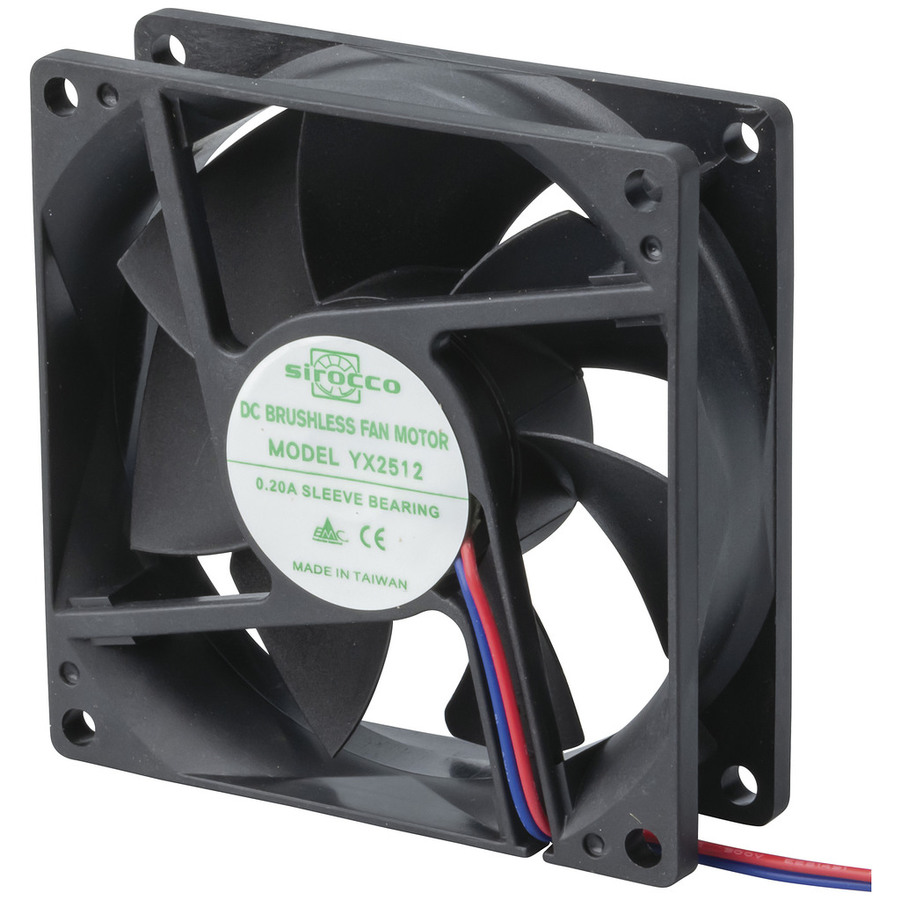

These Sirocco brand axial fans are very durable lasting up to 60,000 hours at 25°C. Suitable for the computers, appliances, power units in your caravan, campervan or motorhome.
• Plastic housing
• Flyleads terminated
• Speed: 3,000 RPM
• Bearing system: Sleeve
• Dimensions: 80(L) x 80(W) x 25(D)mm


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 60000hr
    fan bearing type
    		 Sleeve
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 32dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.97m³/min
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 34ft³/min
    Tachometer Output
    fan RPM
    		 3000RPM

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    DC Current Draw
    		 200mA

    Product Mounting

    Mounting Method
    		 Through Hole

    Product Dimensions

    Length
    		 80mm
    Width
    		 80mm
    Depth
    		 25.4mm

    Packaged Dimensions

    Packaged Length
    		 9.2cm
    Packaged Width
    		 9.2cm
    Packaged Weight
    		 0.088kg
    Packaged Volume
    		 0.321632l
    Packaged Height
    		 3.8cm

    Product Availability

    Availability
    		 Stocked item
