120mm 240V Standard Fan
120mm 240V Standard Fan
120mm 240V Standard Fan

CAT. No. YX2514

120mm 240V Standard Fan
product image thumb
product image thumb

120mm 240V Standard Fan

$42.5
- Air Volume 3.0 (m3/minute), 105 (CFM) - Solderlug connection.- Noise 47dB (A)- Speed 3,000 rpm- Input 17 watts- Current 125mA- Size 120 x 120 x 38mm...

Please call (02) 4782 6943

Description

240V Mains Power

Features:


- Input 17 watts
- Impeller Plastic, fibreglass filled
- Housing Die cast aluminium powdercoated black


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 60000hr
    fan bearing type
    		 Sleeve
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 47dB
    fan connector type
    		 Spade Terminals
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 3m³/min
    fan housing material
    		 Aluminimum
    fan air volume cubic feet
    		 105ft³/min
    Tachometer Output
    fan RPM
    		 3000RPM

    Mains powered

    Max Input Power
    		 30W
    Mains Max Current
    		 125mA
    Auto-select mains voltage
    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V
    Rated for US Mains
    Rated for AU Mains

    Power from Plugpack

    Item Connection
    		 Spade Terminals

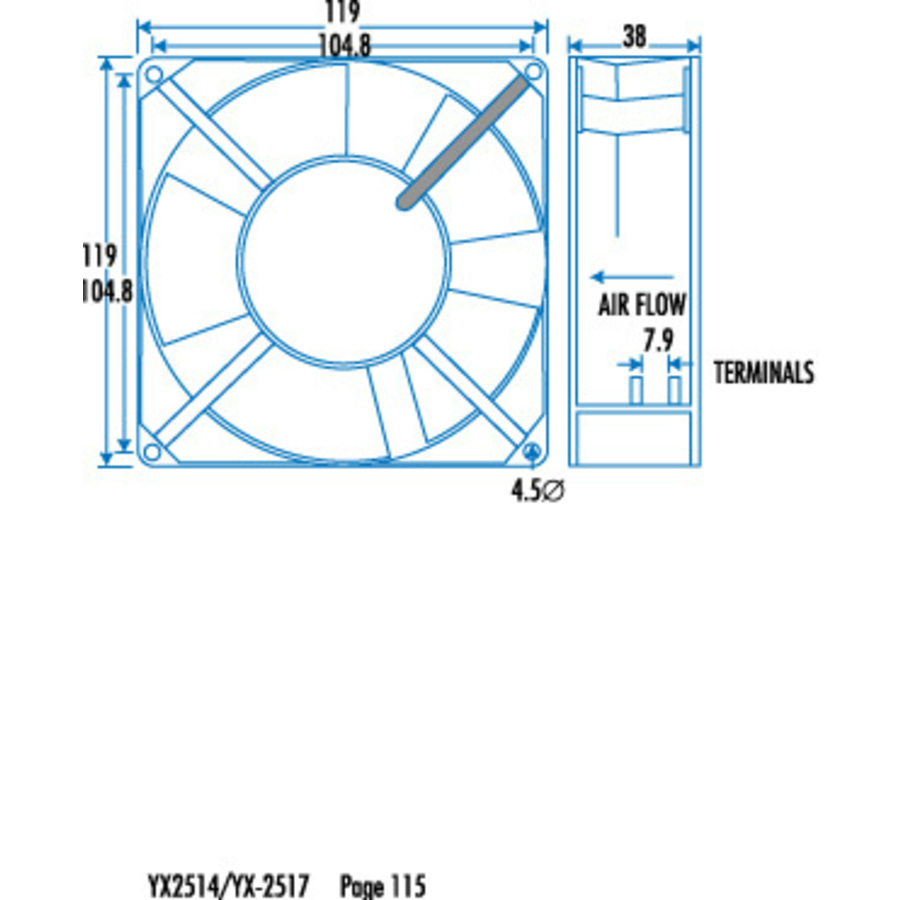

    Product Dimensions

    Length
    		 120mm
    Width
    		 120mm
    Depth
    		 38mm

    Packaged Dimensions

    Packaged Length
    		 13.5cm
    Packaged Width
    		 13cm
    Packaged Weight
    		 0.57kg
    Packaged Volume
    		 0.8775l
    Packaged Height
    		 5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YX2514-dataSheetMain.pdf
