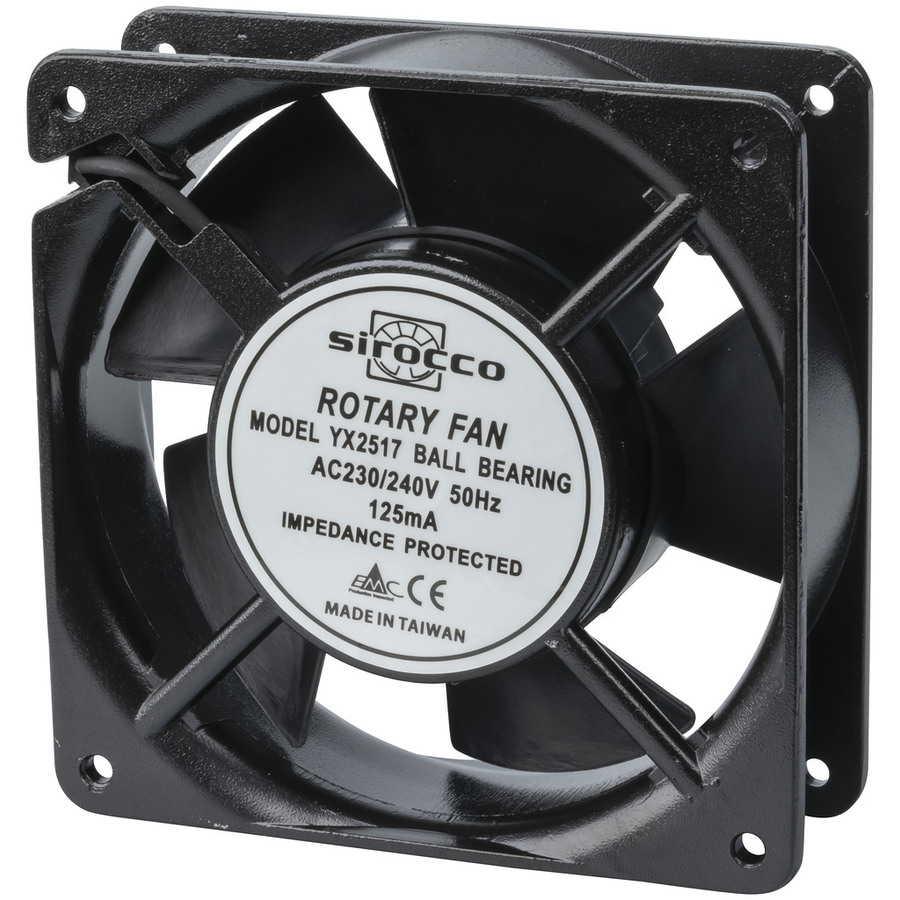

120mm 240VAC Ball Bearing Fan
120mm 240VAC Ball Bearing Fan

CAT. No. YX2517

120mm 240VAC Ball Bearing Fan
product image thumb

120mm 240VAC Ball Bearing Fan

$44.95
- 240VAC life expectancy 100,000 hours @ 25°C. - Air Volume 3.0 (m3/minute), 105 (CFM) - Solderlug connection.- Noise 47dB (A)- Speed 3,000 rpm- I...

Please call (02) 4782 6943

Description

240V Mains Power

Features:


- Input 17 watts
- Housing Die cast aluminium powdercoated black


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan impeller material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic metres
    		 3m³/min
    fan bearing type
    		 Ball
    fan housing material
    		 Aluminimum
    fan air volume cubic feet
    		 105ft³/min
    Tachometer Output
    type of fan
    		 Axial
    fan RPM
    		 3000RPM
    fan noise
    		 47dB
    fan connector type
    		 Spade Terminals

    Mains powered

    Max Input Power
    		 30W
    Mains Max Current
    		 125mA
    Auto-select mains voltage
    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions

    Length
    		 120mm
    Width
    		 120mm
    Depth
    		 38mm

    Packaged Dimensions

    Packaged Length
    		 13.2cm
    Packaged Width
    		 13.2cm
    Packaged Weight
    		 0.546kg
    Packaged Volume
    		 0.906048l
    Packaged Height
    		 5.2cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YX2517-dataSheetMain.pdf
