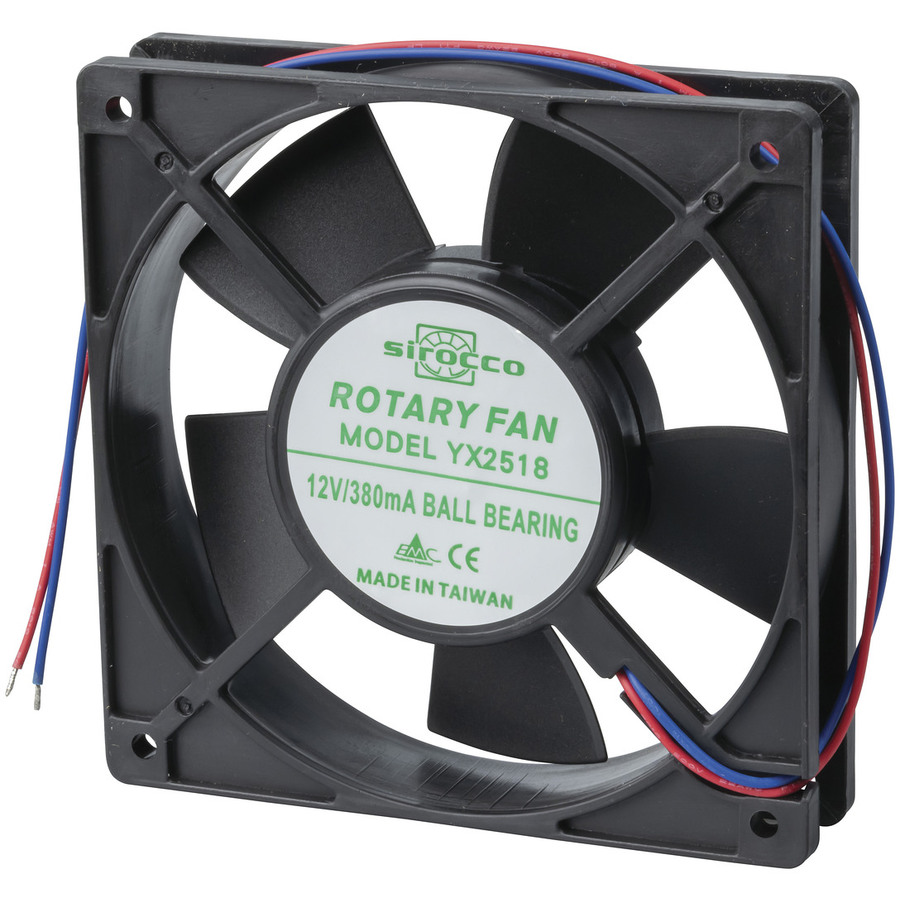

120mm 12VDC Thin Ball Bearing Cooling Fan
120mm 12VDC Thin Ball Bearing Cooling Fan

CAT. No. YX2518

120mm 12VDC Thin Ball Bearing Cooling Fan
product image thumb

120mm 12VDC Thin Ball Bearing Cooling Fan

$44.95
- Air volume: 88CFM (2.5M3/min)- Flylead connection.- Noise 42 dBA- Speed 3,000 rpm- Input 4.56 Watts- Current 380 mA- Size 120 x 120 x 25.4mm- Voltag...

Please call (02) 4782 6943

Description

1 Year Warranty

Features:


- Input 4.56 Watts
- Impeller Plastic, fibreglass filled
- Housing Plastic, fibreglass filled

12V powered cooling fans to help ventilate enclosures or confined spaces in the caravan or RV.

TEK203 60mm
Speed: 4,000 RPM
Air volume: 0.57m3 per min
Dimensions: 60(L) x 60(W) x 25(D)mm

TEK212 120mm
Speed: 3,000 RPM
Air volume: 2.5m3 per min
Dimensions: 120(L) x 120(W) x 25(D)mm


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan bearing type
    		 Ball
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 42dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 2.3m³/min
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 80ft³/min
    Tachometer Output
    fan RPM
    		 3000RPM

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 360mA

    Product Dimensions

    Length
    		 120mm
    Width
    		 120mm
    Depth
    		 25.4mm

    Packaged Dimensions

    Packaged Length
    		 13cm
    Packaged Width
    		 13.4cm
    Packaged Weight
    		 0.2kg
    Packaged Volume
    		 0.871l
    Packaged Height
    		 5cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    YX2518-dataSheetMain.pdf
