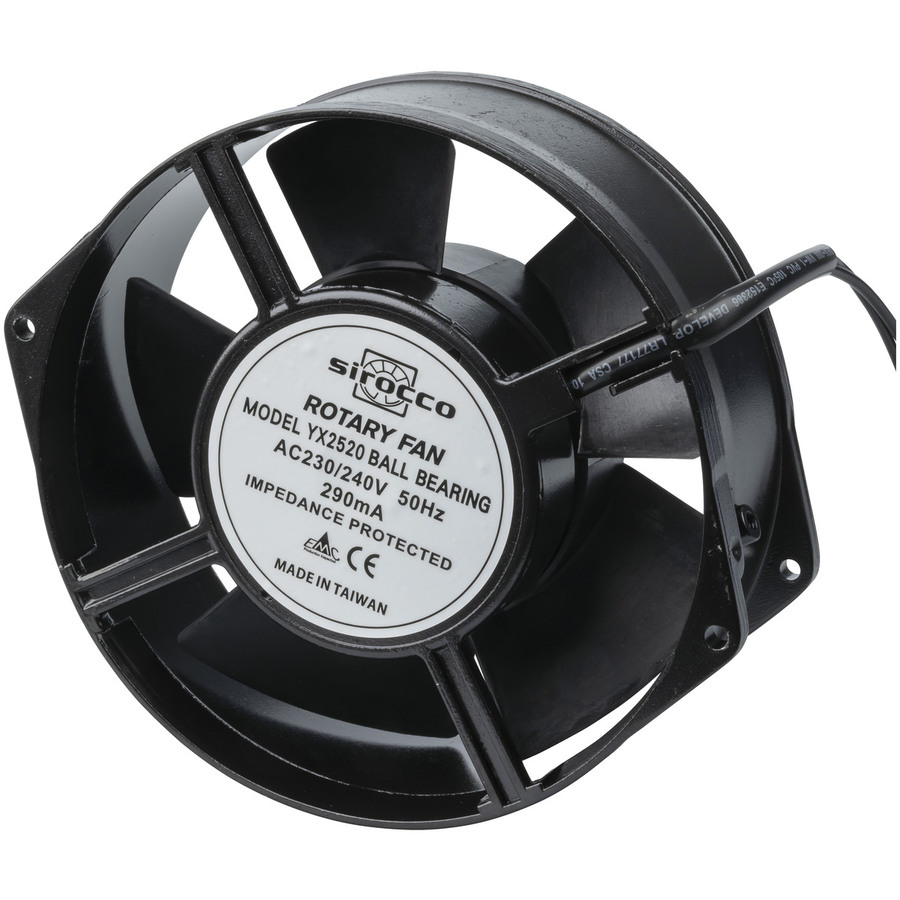

150mm 240VAC Fan - Ball Bearing
150mm 240VAC Fan - Ball Bearing

CAT. No. YX2520

150mm 240VAC Fan - Ball Bearing
product image thumb

150mm 240VAC Fan - Ball Bearing

$99.95
- Air volume - 6.57 (m3/min) 230(CFM) - Noise - 53 dB (A) - Speed - 3,400 rpm - Input - 40Watts - Current - 290 mA - Siz...

Please call (02) 4782 6943

Description

240V Mains Power

Features:


• Input - 40Watts
• Impeller - Plastic, fibreglass filled and metal


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan bearing type
    		 Ball
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 53dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 6.57m³/min
    fan housing material
    		 Aluminimum
    fan air volume cubic feet
    		 230ft³/min
    Tachometer Output
    fan RPM
    		 3400RPM

    Mains powered

    Max Input Power
    		 69.6W
    Mains Max Current
    		 290mA
    Auto-select mains voltage
    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions

    Length
    		 172mm
    Width
    		 150mm
    Depth
    		 55mm

    Packaged Dimensions

    Packaged Length
    		 18.2cm
    Packaged Width
    		 16.3cm
    Packaged Weight
    		 0.934kg
    Packaged Volume
    		 1.868958l
    Packaged Height
    		 6.3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    N/A
