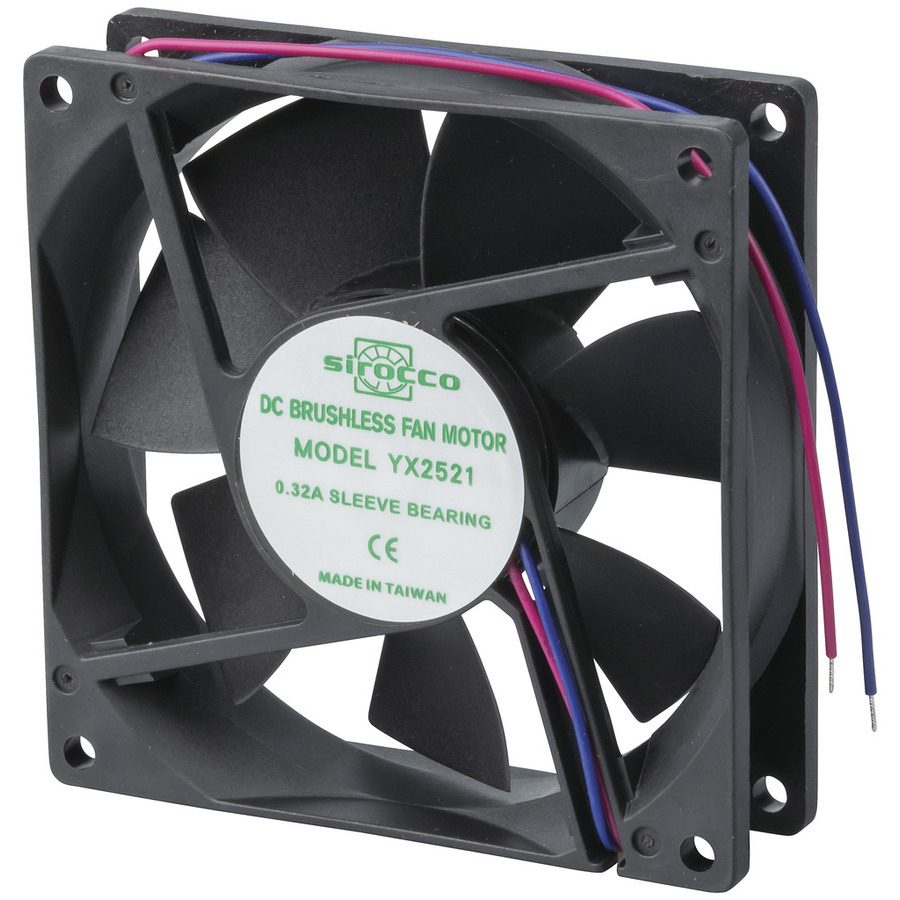

90mm 12V DC - 2 Wire Fan
90mm 12V DC - 2 Wire Fan

CAT. No. YX2521

90mm 12V DC - 2 Wire Fan
product image thumb

90mm 12V DC - 2 Wire Fan

$26.5
* Air volume 59CFM* Input power 3.8watts* Impeller Plastic, ...

Please call (02) 4782 6943

Description

Features:

*Input power 3.8 watts


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan bearing type
    		 Sleeve
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 36dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic metres
    		 1.67m³/min
    fan housing material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic feet
    		 59ft³/min
    Tachometer Output
    fan RPM
    		 3000RPM

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 320mA

    Product Dimensions

    Length
    		 90mm
    Width
    		 90mm
    Depth
    		 25mm

    Packaged Dimensions

    Packaged Length
    		 13.4cm
    Packaged Width
    		 13.3cm
    Packaged Weight
    		 0.134kg
    Packaged Volume
    		 0.766346l
    Packaged Height
    		 4.3cm

    Product Availability

    Availability
    		 Stocked item
