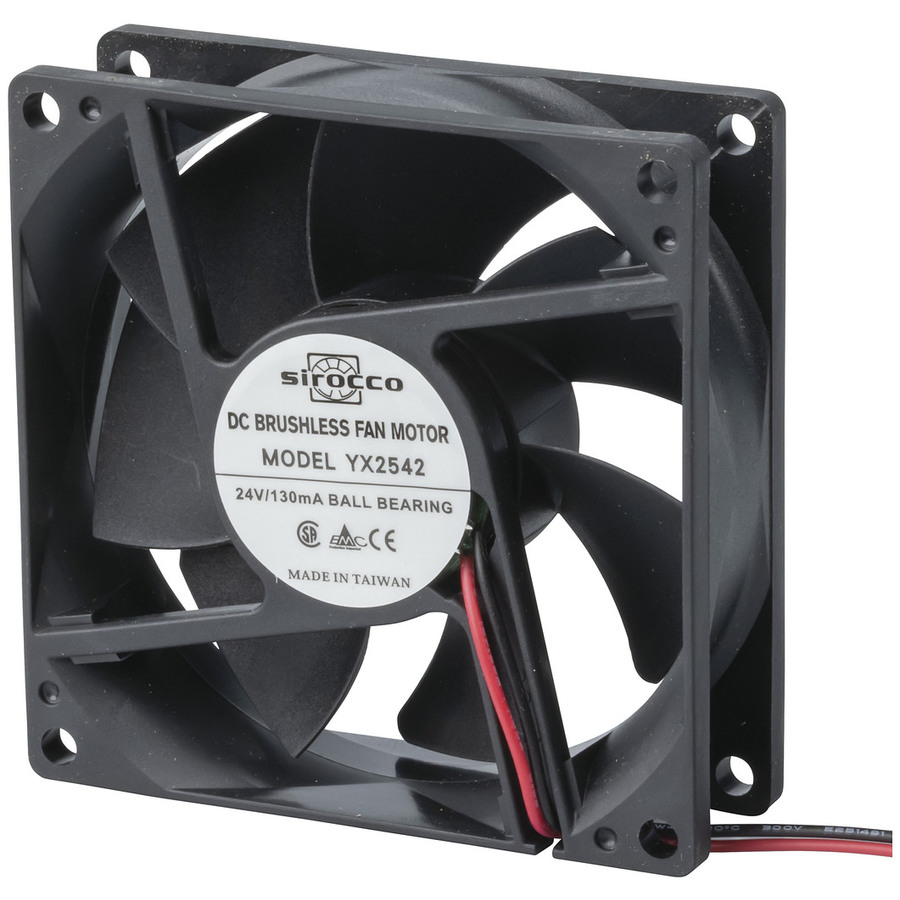

80mm 24VDC Thin Ball Bearing Version - 2 Wire
80mm 24VDC Thin Ball Bearing Version - 2 Wire

CAT. No. YX2542

80mm 24VDC Thin Ball Bearing Version - 2 Wire
product image thumb

80mm 24VDC Thin Ball Bearing Version - 2 Wire

$39.95
Life expectancy 100,000 hours @ 25 degrees celciusAir Volume: 1.13 (m³/min) 40(cfm)Input: 3.12 wattsImpeller: Plastic, fibre glass filledBearing syste...

Please call (02) 4782 6943

Description

Features:


Input: 3.12 watts
Impeller: Plastic, fibre glass filled
Housing: Plastic, fibre glass filled


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 1.1m³/min
    fan bearing type
    		 Ball
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 40ft³/min
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan RPM
    		 3200RPM
    fan noise
    		 35dB
    fan connector type
    		 Flyleads

    Power from Plugpack

    DC Plugpack Voltage
    		 24V
    DC Current Draw
    		 130mA

    Product Dimensions

    Length
    		 80mm
    Width
    		 80mm
    Depth
    		 25.4mm

    Packaged Dimensions

    Packaged Length
    		 9.4cm
    Packaged Width
    		 4.2cm
    Packaged Weight
    		 0.15kg
    Packaged Volume
    		 0.371112l
    Packaged Height
    		 9.4cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YX2542-dataSheetMain.pdf
