4094 8-bit Tri-state Shift Register Latch CMOS IC
4094 8-bit Tri-state Shift Register Latch CMOS IC

CAT. No. ZC4094

4094 8-bit Tri-state Shift Register Latch CMOS IC

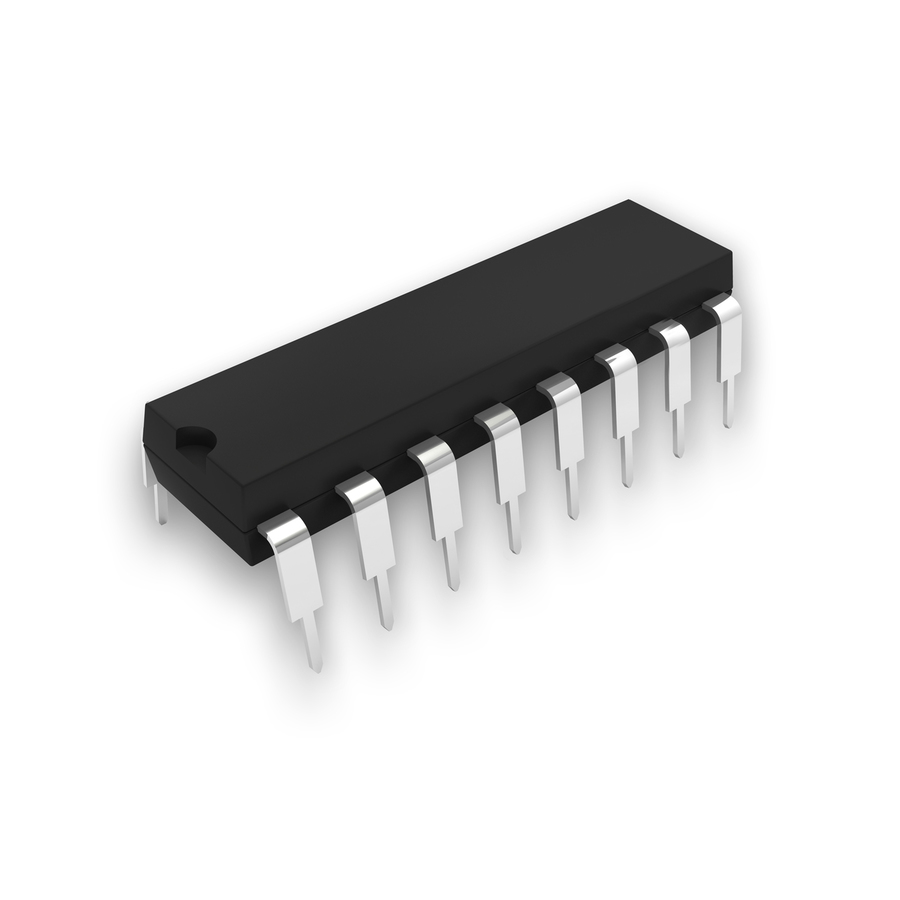

product image thumb

4094 8-bit Tri-state Shift Register Latch CMOS IC

$2.25
Part Pins Description 4094 16 8-bit TRI-state shift reg/latch...

Please call (02) 4782 6943

Description

Part Pins Description
4094 16 8-bit TRI-state shift reg/latch

Handy Tip Basic Logic Functions

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Integrated Circuit (IC)

    IC Static Sensitive
    IC Pin Count
    		 16 units
    IC op amp
    IC supply voltage
    		 3V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    minimum temperature
    		 -40°C
    Active number of legs
    		 16 count
    max temperature
    		 85°C
    component package
    		 DIL
    Active case colour
    		 black
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    ZC4094-dataSheetMain.pdf
