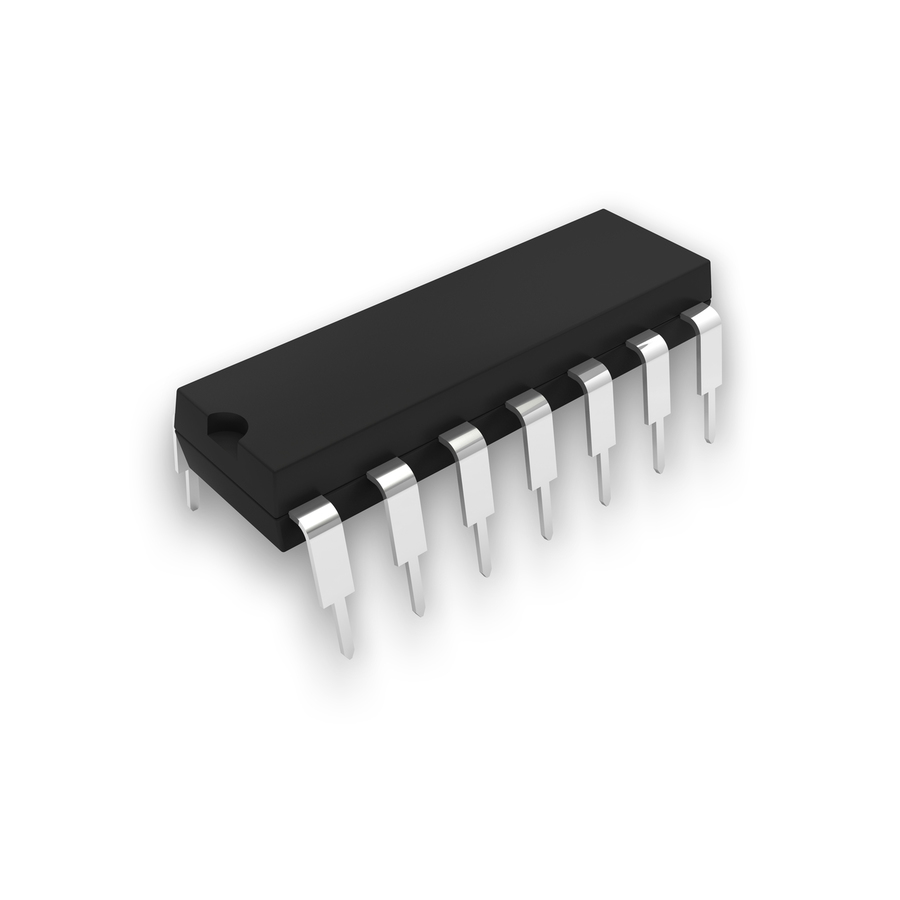

74HC51 3-in ANDORINVERT Gate IC
74HC51 3-in ANDORINVERT Gate IC

CAT. No. ZC4828

74HC51 3-in ANDORINVERT Gate IC
product image thumb

74HC51 3-in ANDORINVERT Gate IC

$2.15
Type Pins Description74HC51 14 Dual 2 wide/2 input, 2 wide/3 input AND-OR-INVERT gate...

Please call (02) 4782 6943

Description

Type Pins Description
74HC51 14 Dual 2 wide/2 input, 2 wide/
3 input AND-OR-INVERT gate

Handy Tip Basic Logic Functions

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Integrated Circuit (IC)

    IC Static Sensitive
    IC Pin Count
    		 14 units
    IC op amp
    IC supply voltage
    		 5V

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 Through Hole
    minimum temperature
    		 -55°C
    Active number of legs
    		 14 count
    unique marking code
    		 M74HC51
    max temperature
    		 125°C
    Active case colour
    		 black
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
