8-bit tri-state ser-inser+ par-out shift reg IC
8-bit tri-state ser-inser+ par-out shift reg IC

CAT. No. ZC4895

8-bit tri-state ser-inser+ par-out shift reg IC

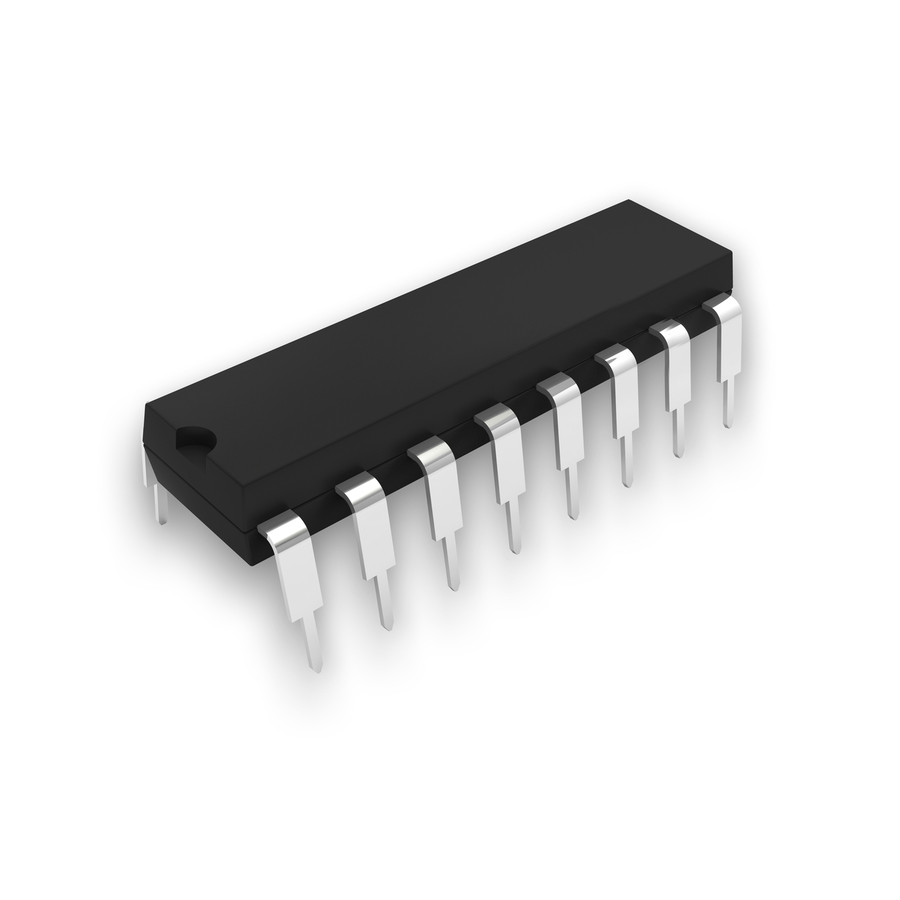

product image thumb

8-bit tri-state ser-inser+ par-out shift reg IC

$3.95
8-bit tri-state ser-in/ser+ par-out shift reg IC

Please call (02) 4782 6943

Description

74HC595 8-bit tri-state ser-in/ser+ par-out shift reg IC


Handy Tip Basic Logic Functions

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Integrated Circuit (IC)

    IC Pin Count
    		 16 units

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 Through Hole
    Active number of legs
    		 16 count
    unique marking code
    		 74HC595
    component package
    		 DIL
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    ZC4895-dataSheetMain.pdf
