Red 2mm LED 600mcd Tower Type Diffused
Red 2mm LED 600mcd Tower Type Diffused
Red 2mm LED 600mcd Tower Type Diffused

CAT. No. ZD0040

Red 2mm LED 600mcd Tower Type Diffused
product image thumb
product image thumb

Red 2mm LED 600mcd Tower Type Diffused

$0.75
Fits into a 1.8mm hole in a panel or enclosure. - Red in Colour - 60° Viewing Angle - Diffused Lens

Please call (02) 4782 6943

Description

LED

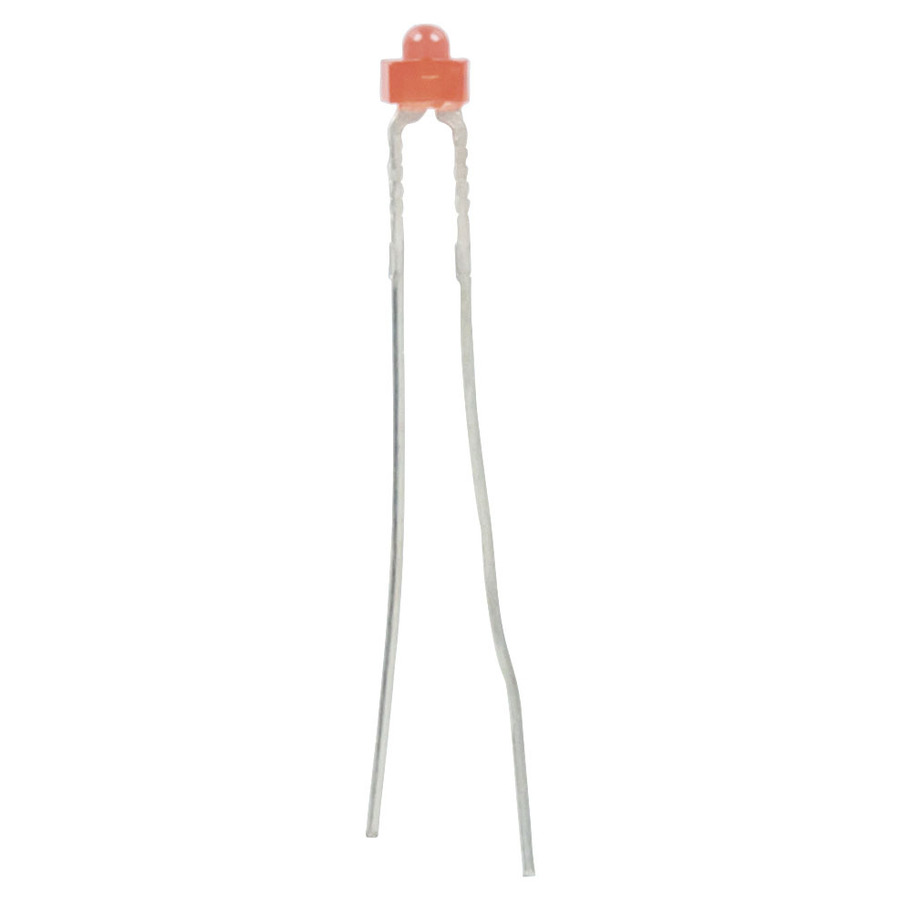

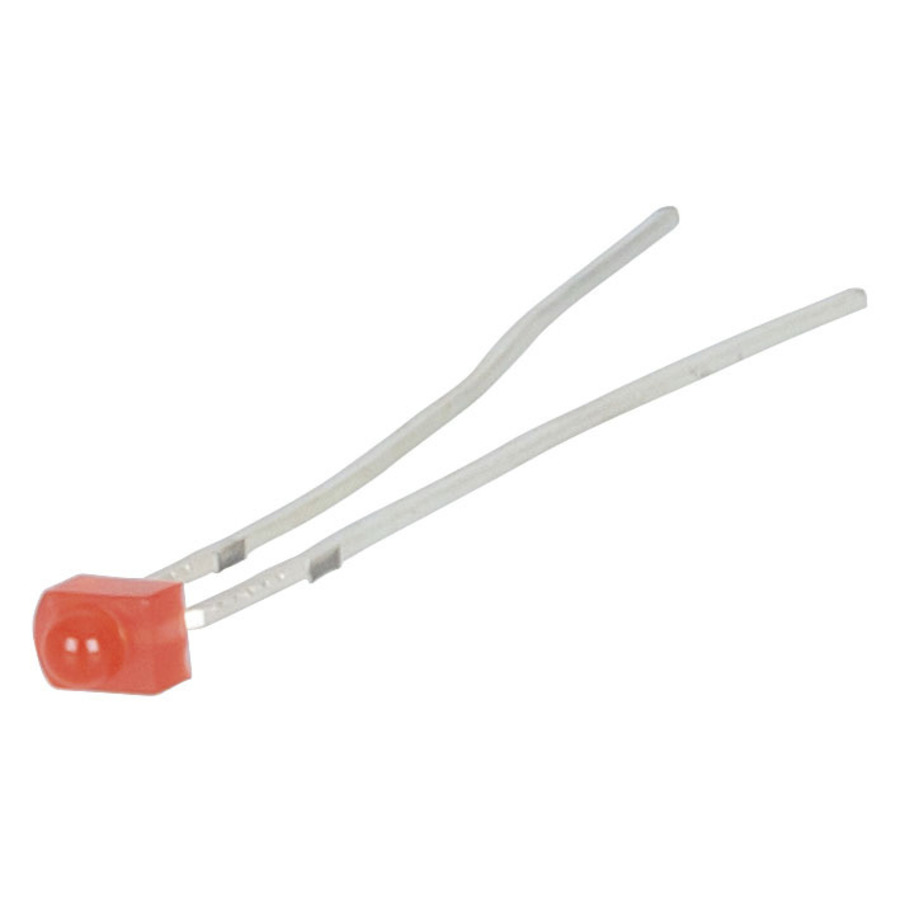

A red through-hole diffused tower type LED that fits into a 1.8mm hole in a panel or enclosure.

• 5 colours to choose from


    Specifications

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 Diffused
    Light Wavelength
    		 624nm-632nm
    Viewing Angle
    		 60°
    Intensity
    		 600mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 350?
    Illumination Type
    		 Single Colour
    LED Type
    		 2mm Tower Type LED
    Resistor for 5VDC
    		 150?

    Product Dimensions

    Diameter
    		 2mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 1cm
