Blue 2mm LED 780mcd Tower Type Diffused
Blue 2mm LED 780mcd Tower Type Diffused
Blue 2mm LED 780mcd Tower Type Diffused

CAT. No. ZD0080

Blue 2mm LED 780mcd Tower Type Diffused
product image thumb
product image thumb

Blue 2mm LED 780mcd Tower Type Diffused

$0.75
Fits into a 1.8mm hole in a panel or enclosure. - Blue in Colour - 60° Viewing Angle - Diffused Lens

Please call (02) 4782 6943

Description

LED

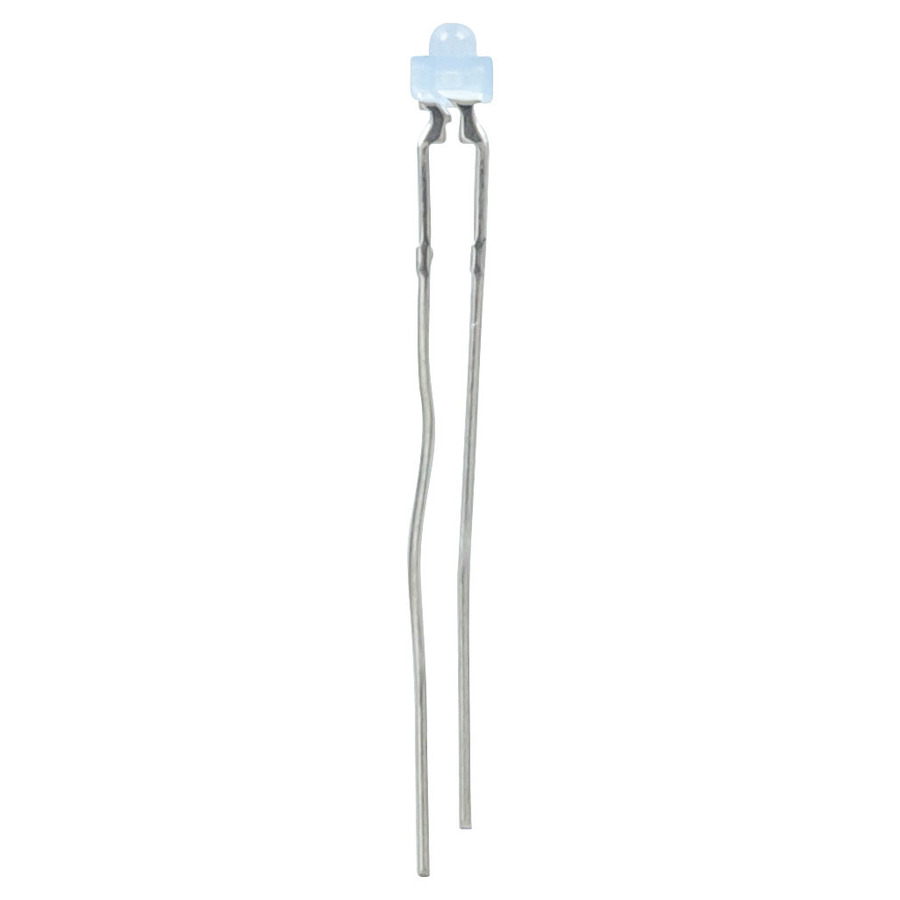

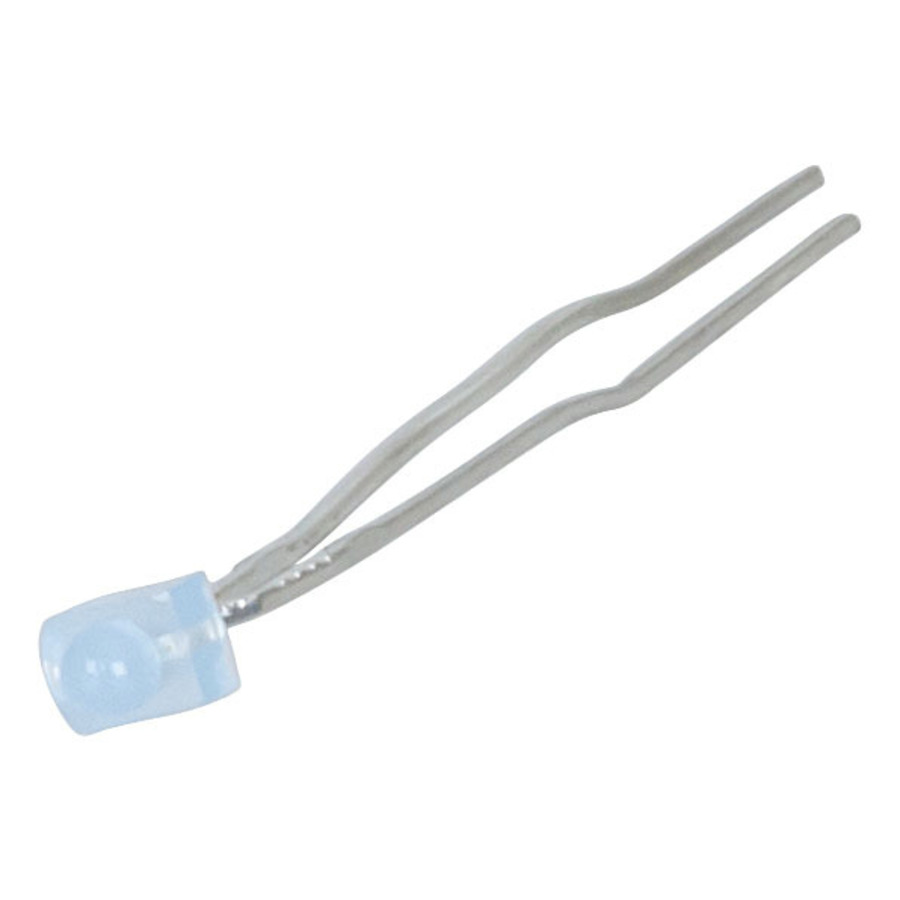

A blue through-hole diffused tower type LED that fits into a 1.8mm hole in a panel or enclosure.

• 5 colours to choose from


    Specifications

    LED Components

    Light Colour
    		 Blue
    Lens Type
    		 Diffused
    Light Wavelength
    		 468nm-470nm
    Viewing Angle
    		 60°
    Intensity
    		 780mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    Resistor for 12VDC
    		 470?
    V<sub>f (max)</sub> - Maximum Forward Voltage
    		 3.2V
    Resistor for 9VDC
    		 270?
    Illumination Type
    		 Single Colour
    LED Type
    		 2mm Tower Type LED
    Resistor for 5VDC
    		 91?

    Product Dimensions

    Diameter
    		 2mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 1cm
