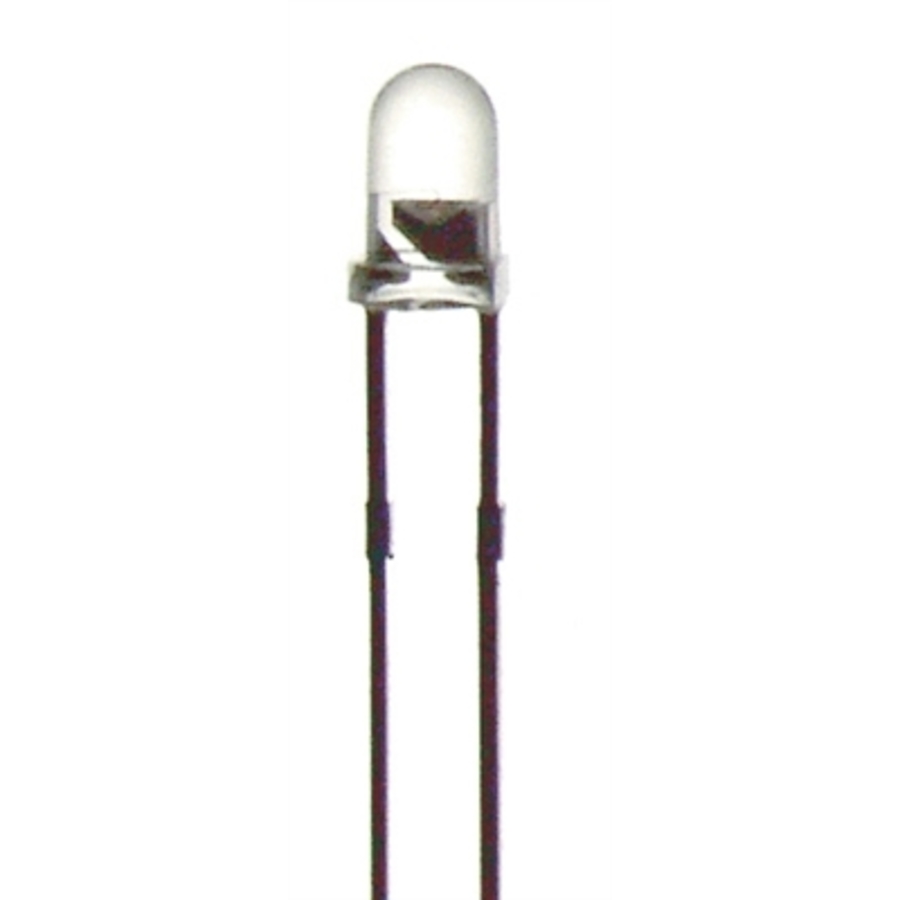

Red 3mm LED 7200mcd Round Clear
Red 3mm LED 7200mcd Round Clear

CAT. No. ZD0106

Red 3mm LED 7200mcd Round Clear
product image thumb

Red 3mm LED 7200mcd Round Clear

$4.45
Red 3mm light emitting diode 7200mCd Round Clear

Please call (02) 4782 6943

Description

LED

Red 3mm LED round clear.

    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.4cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 5.6E-4l
    Packaged Height
    		 0.4cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 waterclear
    Light Wavelength
    		 625nm
    Viewing Angle
    		 15°
    Intensity
    		 7200mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 150?

    Active Component

    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
