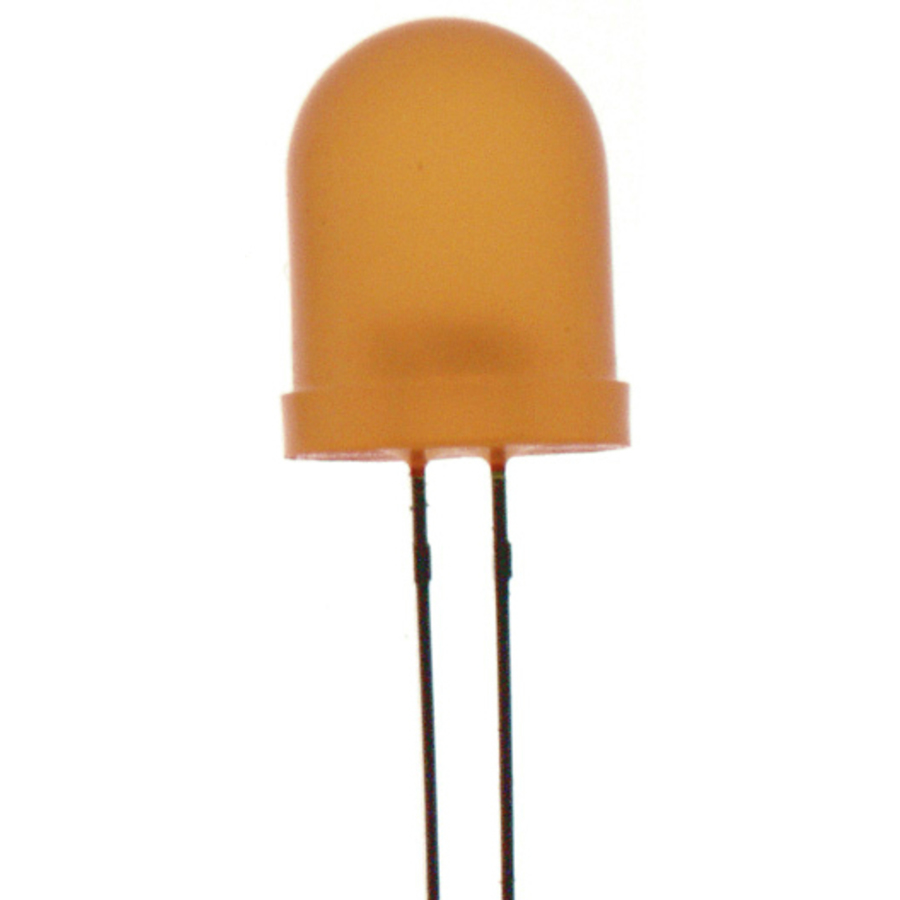

Orange 3mm LED 40mcd Round Diffused
Orange 3mm LED 40mcd Round Diffused

CAT. No. ZD0119

Orange 3mm LED 40mcd Round Diffused
product image thumb

Orange 3mm LED 40mcd Round Diffused

$0.75
Orange 3mm light emitting diode 40mCd Round Diffused

Please call (02) 4782 6943

Description

LED

Orange 3mm LED 40mCd Round Diffused

    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.35cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.35cm

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 Diffused
    Light Wavelength
    		 625nm
    Viewing Angle
    		 45°
    Intensity
    		 35mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 1.9V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 160?

    Product Availability

    Availability
    		 Stocked item
