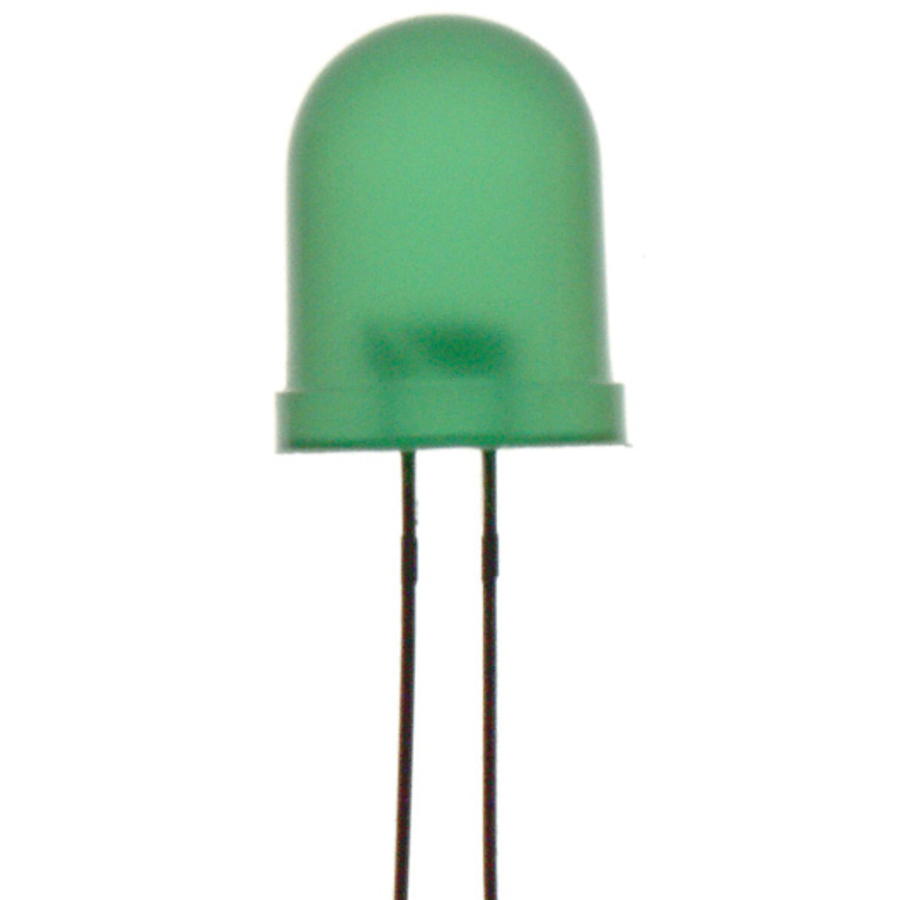

Green 3mm LED 40mcd Round Diffused
Green 3mm LED 40mcd Round Diffused

CAT. No. ZD0120

Green 3mm LED 40mcd Round Diffused
product image thumb

Green 3mm LED 40mcd Round Diffused

$0.75
Green 3mm light emitting diode 40mCd Round Diffused

Please call (02) 4782 6943

Description

LED

Green 3mm LED 40mCd Round Diffused

    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.3cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.3cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 Diffused
    Light Wavelength
    		 573nm
    Viewing Angle
    		 50°
    Intensity
    		 40mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.3V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 330?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 130?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0120-dataSheetMain.pdf
